PRODUCT CARE
ENGINE OIL
• Shell Rotella® T Triple Protection™ 15W40
• Shell Rimula® 15W40
• Reference your Engine Operator’s Manual for
other approved options
HYDROSTATIC FLUID
• Drive System Fluid Plus (Shell TT-SB)
• Castrol™ (Syntec®) Edge™ 5W50
(Parker Transmissions)
• 20W50 Oil (Hydro-Gear Transmissions)
General Purpose Lubrication: Use any NLGI
Grade 2 multi-purpose grease. Shell Albida EP2 is
recommended. Shell Albida EP 2 is a red-colored
multi-purpose grease designed for heavy-duty
bearing applications. It has high base oil viscosity
for mechanical stability, has been formulated for
high load, low-speed applications and has excellent
lubrication and corrosion protection.
Cleaning the Mower
WARNING
If the mower has been recently run, the engine, muffler, and surrounding
metal surfaces will be hot and can cause burns to the skin. Let the engine
cool for at least 5 minutes. Exercise caution to avoid burns.
Your mower should be cleaned after each use and under certain conditions, i.e. dry
conditions and/or mulching situations, additional cleaning may be necessary.
One of the best ways to keep your mower running efficiently and to reduce fire risk
is to regularly remove debris buildup from the mower. Follow the recommendations
below and contact your authorized dealer with any questions.
• Allow the machine to cool in an open area before cleaning.
• Do not use water on any part of the mower except the underside of the cutting
deck. Doing so can cause damage to the mower’s spindle bearings, electrical
system and engine, leading to premature failures. The use of compressed air and/
or leaf blower will help keep the mower clean.
• Clean around the exhaust manifold, fuses, all wiring and harnesses, muffler pipe,
muffler shield, engine intake screens and cooling fins, etc (Figure 31).
Figure 31
NOTE: This Operator’s Manual covers several models. Mower features may vary by
model. Not all features in this manual are applicable to all mower models and the
mower depicted may differ from yours.
POSTOPERATION MOWER CARE
After each operation of the mower, the following procedures should be implemented
to extend the life of your mower and ensure safe operating conditions.
DANGER
Failure to follow these recommendations may result in serious injury to
yourself or others and may cause damage to the mower.
Cleaning the Underside of the Deck
Rinse grass clippings from the deck’s underside and prevent the buildup of
corrosive chemicals.
WARNING
Make certain the mower’s discharge chute is directed AWAY from people,
your house, garage, parked cars, etc.
1. Disengage the PTO, set the parking brake and stop the engine.
2. Use a hose to spray the underside of the deck.
NOTE: Make sure that the hose is not routed under the deck and is clear of all
moving parts.
3. After cleaning your deck, return to the operator’s position and engage the PTO.
Keep the deck running for a minimum of two minutes, allowing the underside of
the deck to thoroughly dry.

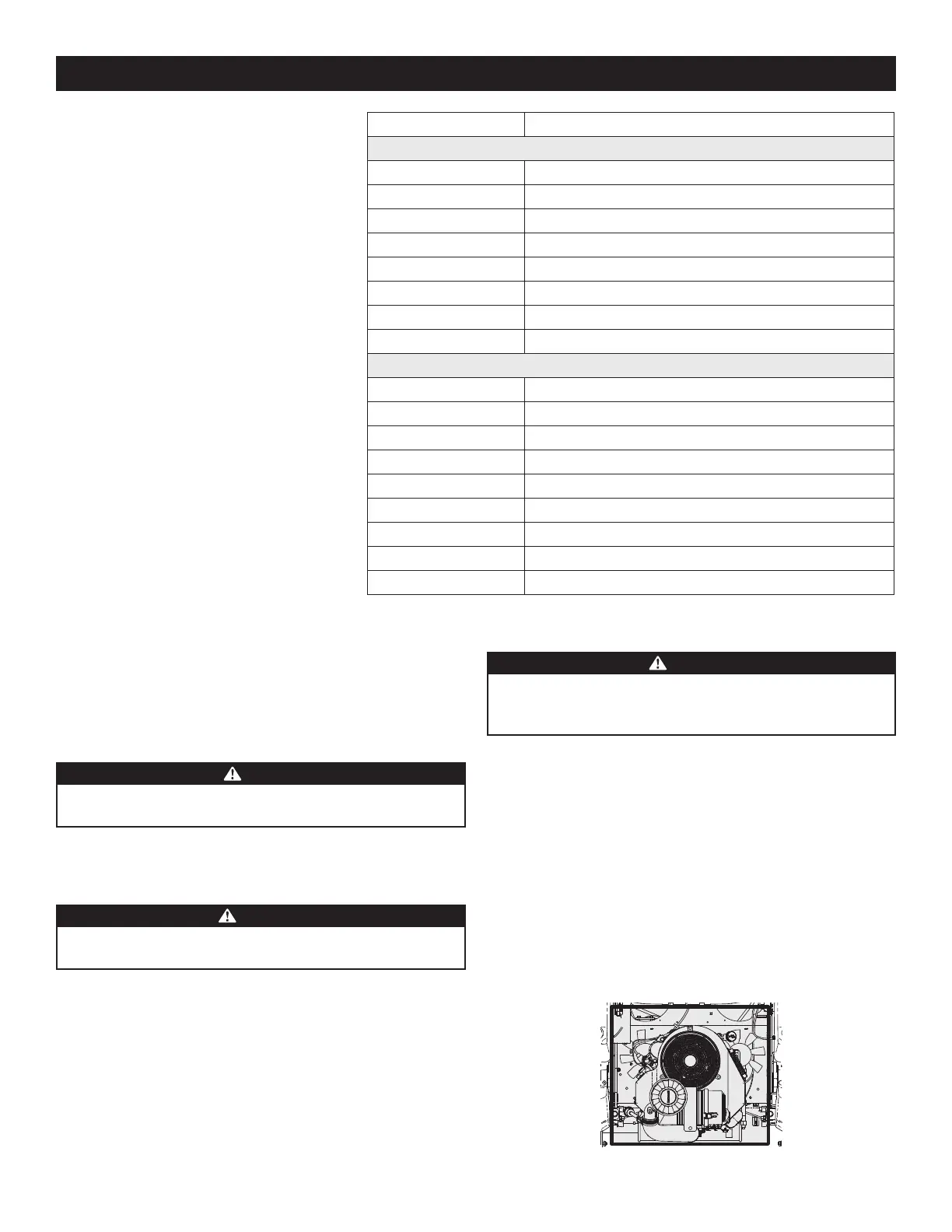

Number of Oil Points Description
DAILY
4 Deck Suspension Pivots
4 Height Adjustment Turnbuckle Clevis Pin
2 Height Adjustment Handle Pivots
2 Height Adjustment Stop Pivots
2 Deck Lift Linkage Pivots
2 Transport Handle Pivots
1 Transport Handle Pin
2 Deck Frame Up-and-Down Pivots
WEEKLY
1 Seat Hinge
2 Speed Control Linkage Rod End Bearings
2 Pump Control Lever Pivots
1 Brake Lever Pivot Clevis Pin
1 Brake Lever Control Rod Pivot
1 Brake Control Rod Swivel Joint
4 Brake Rod Clevis Pins
2 Brake Shaft Assembly Pivots
2 Grass Collection System Lid Hinges (if equipped)
OIL CHART
Apply a few drops of SAE engine oil, grease or
use a spray lubricant. Apply the oil to both sides
of pivot points. Wipe off any excess. Start engine
and operate mower briefly to ensure that oil
spreads evenly.
