Controls & Operation
3
12
† — If Equipped
Choke †
Deck Lift Pedal †
Deck Height Index
Parking Brake Lever
Transmission
Bypass Lever
Fuel Gauge †
Fuel Tank Cap
Fuel Tank Cap
Fuel Gauge †
Throttle †
Ignition
Hour Meter &
Service Minder
PTO Switch
12V Outlet †
Accessory & Light
Switch Receptacles
Steering Column Adjustment Lever
Reverse Drive Pedal
Forward Drive Pedal
Fuel Valve
Fuel Valve
Cup Holder
Transport Lock †
Roll Over Protective
Structure (ROPS)
Electric Deck Lift †
Fuel Gauge †

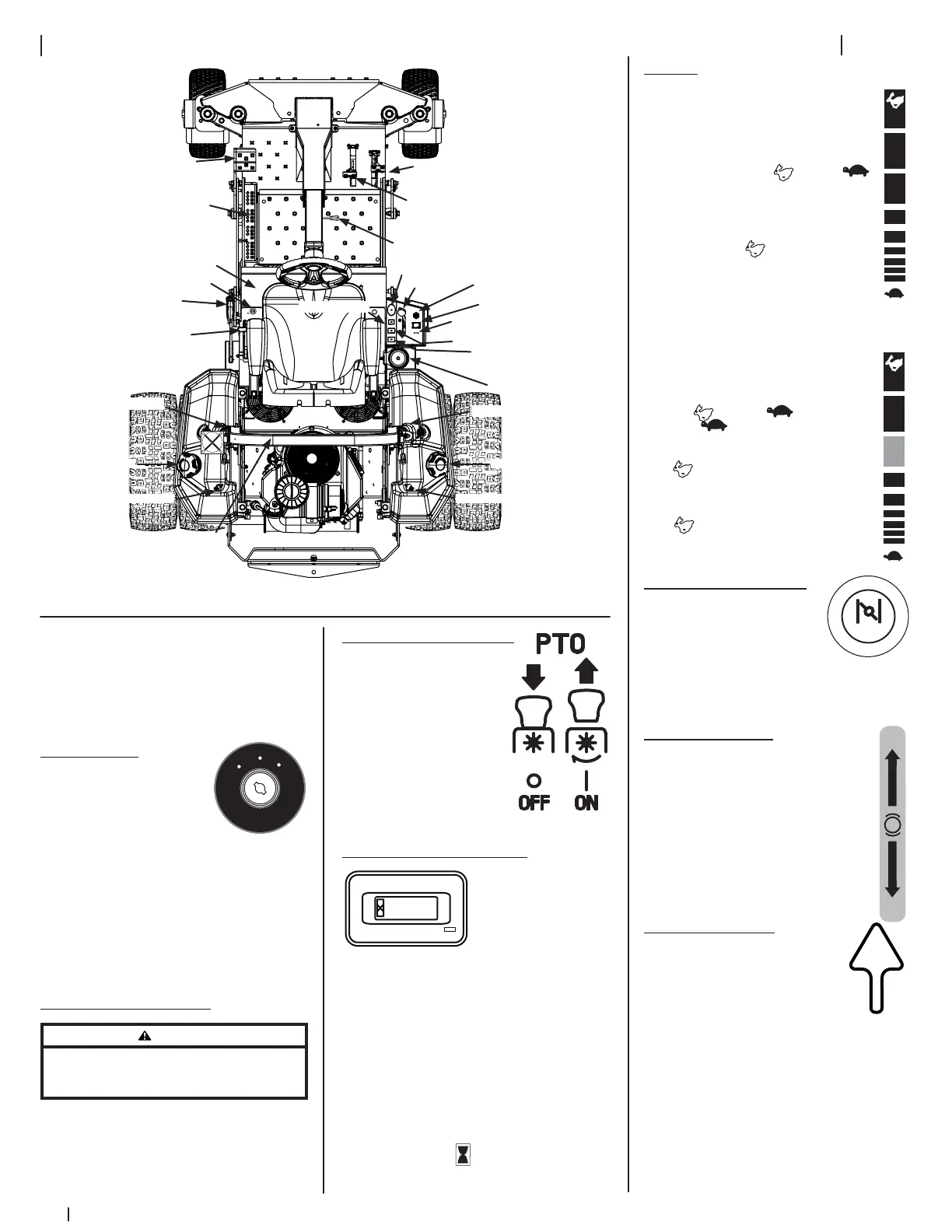

Figure 3-1
Note: References to LEFT, RIGHT, FRONT, and REAR
indicate that position on the tractor when facing
forward while seated in the operator’s seat.
Note: This Operator’s Manual covers several models.
Tractor features may vary by model. Not all features
in this manual are applicable to all tractor models and
the tractor depicted may differ from yours.
Ignition Switch
The ignition switch is located
on the RH console to the rear of
the throttle control. The ignition
switch has three positions as
follows:
OFF — The engine and electrical system are
turned off.
ON — The tractor electrical system is energized.
START — The starter motor will turn over the
engine. Release the key immediately when the
engine starts
Note: To prevent accidental starting and/or battery
discharge, remove the key from the ignition switch
when the tractor is not in use.
Transmission Bypass Lever
WARNING
Do not tow the tractor, even with the transmission bypass
valves engaged. Serious transmission damage will result
from doing so.
The transmission bypass lever is located next to
the LH console to the left of the operator’s seat.
When engaged the valves open a bypass within
the hydrostatic transmissions. Refer to the
Assembly & Set-Up section for instructions on
using the bypass feature.
O
F
F
O
N
S
T
A
R
T
Power Take-Off (PTO) Knob
The PTO knob is located on the
RH console to the right of the
operator’s seat.
The PTO knob operates the
electric PTO clutch mounted
on the bottom of the engine
crankshaft. Pull the knob upward
to engage the PTO clutch, or
push the knob downward to
disengage the clutch.
The PTO knob must be in the
“OFF” position when starting
the engine.
Hour Meter & Service Minder
0.0
The hour meter and service
minder is located on the RH
console to the right of the
operator’s seat. It records
the hours that the tractor
has been operated , engine
speed (RPM), and service
reminders (oil, lube) in the digital display.
The hour meter and service minder is activated
whenever the ignition switch is turned to the
“ON” position. Keep a record of the actual hours
of operation to assure all maintenance procedures
are completed according to the instructions in
this Operator’s Manual and the Engine Operator’s
Manual. The hour meter and service minder is
equipped with a MODE button that can toggle
between available functions and can be used
to reset service alerts. Press and hold the MODE
button for three (3) seconds while in service alert
mode or when in a service alarm mode to reset.
Note: When the ignition key is out of the STOP
position the hourglass symbol is illuminated/
blinks to indicate it is recording the hours of tractor
operation, regardless of whether the engine is started.
Throttle
Manual Throttle (If equipped)
The throttle control is located on the RH
console to the right of the operator’s seat.
When set in a given position, a uniform engine
speed will be maintained. The throttle control
moves between the FAST and slow
positions.
Push the throttle control handle forward
to increase the engine speed. The tractor
is designed to operate with the throttle
control in the FAST (full throttle)position
when the tractor is being driven and the
mower deck is engaged.
Pull the throttle control handle rearward to
decrease the engine speed.
Electronic Throttle (E-Governor) Lever (If equipped)
The electronic throttle (E-governor) lever
is used to control engine speed and RPM’s.
It also helps control fuel efficiency. The
electronic throttle lever moves between
the FAST and slow positions.
The SLOW position is used for basic
transportation of the tractor with the PTO
disengaged and uses the least fuel. The
FAST position should be used when
the PTO is engaged and uses the most fuel.
The tractor should be started in the START
position, but should always be in the
FAST position when the PTO/deck is
being used.
Choke Knob (If equipped)
The choke knob is located on the
left side of the mower next to
the operator’s seat. Pull the knob
out to choke the engine; push
the knob in/down to open the
choke. Having the choke in the ON position helps
the engine to start during initial start-up. During
normal operation the choke should be OFF.
Parking Brake Lever
The parking brake lever is located to the
left of the operator’s seat. When pulled up
it engages the parking brake and when
pushed down it releases the brake.
Note: If the forward or reverse drive pedal
is engaged when engaging the parking
brake, the engine will stop. The parking
brake must be placed in the engaged
position when starting the engine.
Forward Drive Pedal
The forward drive pedal is located
on the right side of the machine,
directly to the right of the steering
column and along the running
board. Press the forward drive
pedal forward to cause the tractor
to travel forward. Ground speed is also controlled
with the forward drive pedal. The further forward
the pedal is pivoted, the faster the tractor will
travel. The pedal will return to its original/neutral
position when it’s not pressed.
CHOKE
ON
OFF
P
