Cub Cadet Pro Z Series User Manual

7
Section 1 — Safe operation practiceS
(OK) (TOO STEEP)

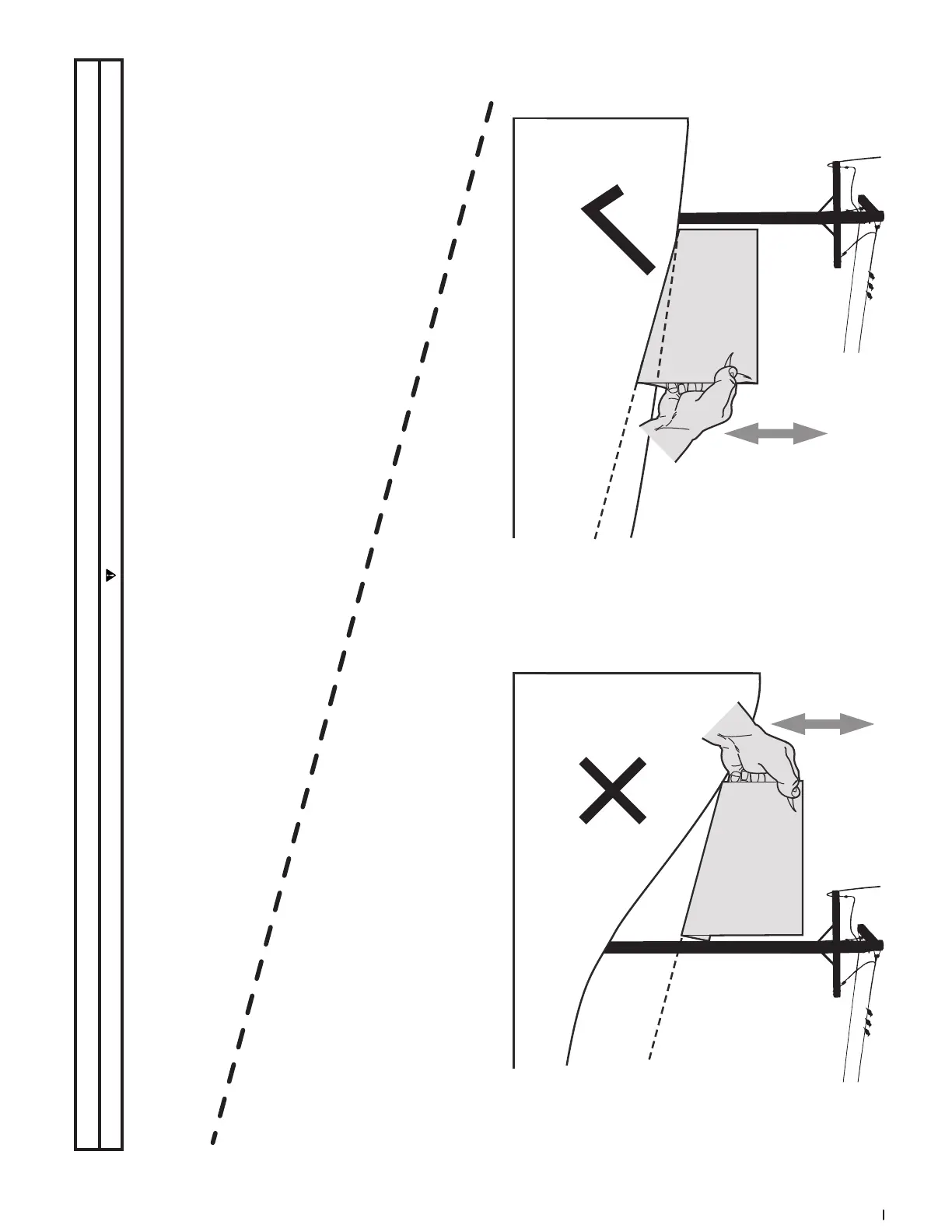

USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows: 1. Remove this page and fold along the dashed line. 2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.) 3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ). 4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2). 5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
15°/25% dashed line
Slope Gauge
Figure 2Figure 1
15°/25% Slope
15°/25%
Slope
WARNING
DO not operate your tractor on such slopes. Do not mow on inclines with a slope in excess of 15° (25%). A tractor could overturn and cause serious injury. Mow across slopes, not up and down.

Cub Cadet Pro Z Series Specifications

General

Brand	Cub Cadet
Model	Pro Z Series
Category	Lawn Mower
Language	English
