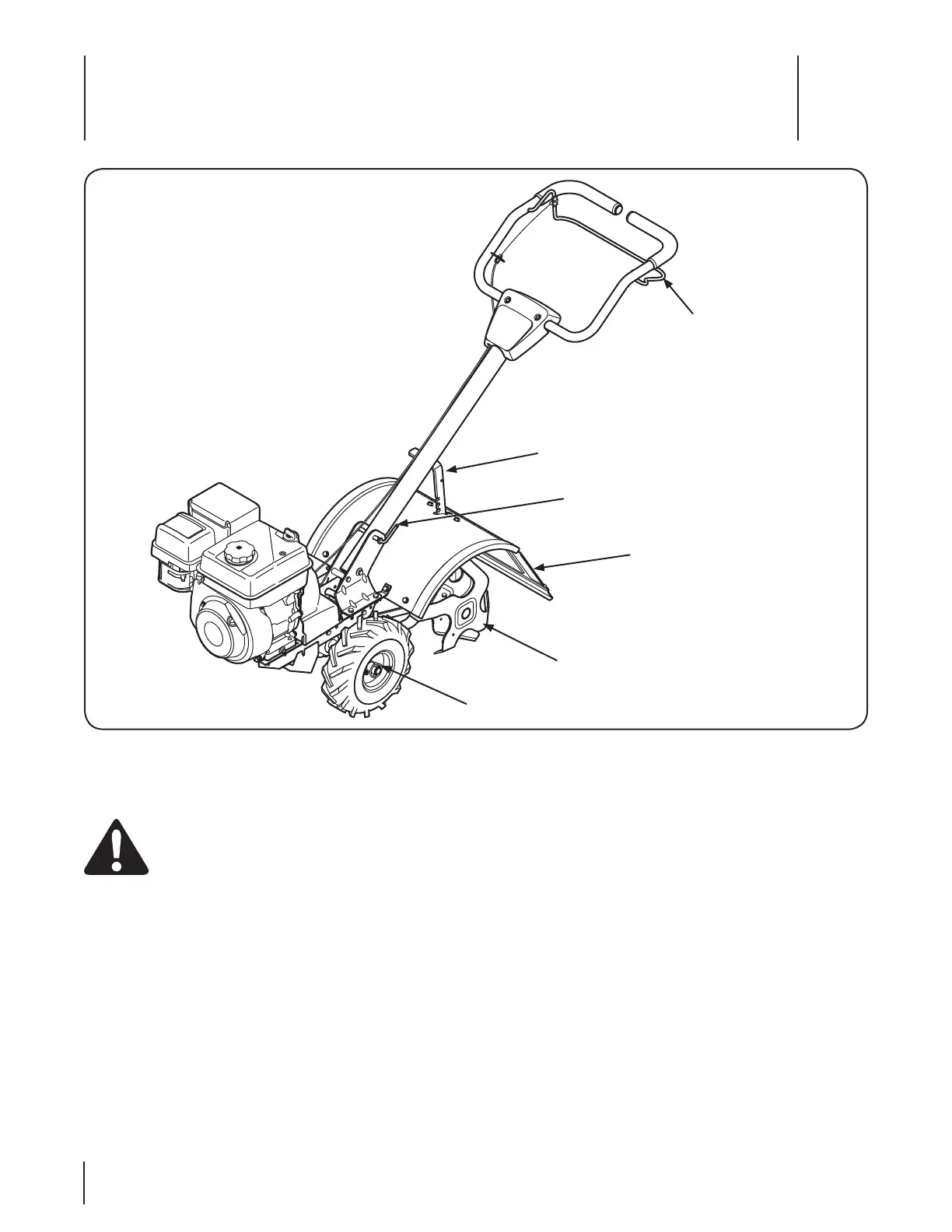

Controls & Features
4
10
Clutch Bail & Tine
Engagement
Tines
Rear Tine Shield
Wheel Drive Pin
Depth Regulator
Handle Crank Adjustment
NOTE:
tiller features may vary by model. Not all features in this manual
are applicable to all garden tiller models and the garden tiller
depicted may differ from yours.
WARNING! Before operating your machine,
carefully read and understand all safety, controls
and operating instructions in this manual and on the
decals on the machine. Failure to follow these
instructions can result in serious personal injury.
Clutch Bail & Tine Engagement
The clutch bail controls the engagement of the forward drive of
the wheels and tines.
Depth Regulator Lever
This lever controls the tilling depth of the tines. Pull the lever back
and slide it up or down to engage the notched height settings.
Handle Crank Assembly
The handle crank assembly is used to adjust the handle height
and is adjustable to three different settings. In general, adjust the
the ground.
Rear Tine Shield
The rear tine shield protects the operator from flying debris
while also smoothing out freshly tilled soil.
Tines
power-driven shaft.
Wheel Drive Pins
Each wheel is equipped with a wheel drive click pin that secures
the wheel to the wheel shaft. The wheels can be positioned in
either a WHEEL DRIVE or a FREEWHEEL mode.
