Handlebar Assembly
Remove the top two bolts and flange lock nuts from the 1.
handle mounting brackets, but do not remove the bottom
bolt and nut. See Fig. 3-2.
Place the handle assembly in position between the handle 2.
mounting brackets.
Line up the holes in the handle with the holes in the 3.
bracket and secure with the hardware previously removed.
Clutch Cable
Remove the threaded eyebolt and nut from the cable end.1.
Route the clutch cable to the right side of the handle 2.
mounting brackets and underneath the handle.
Push the cable through the hole in the center of the handle 3.
and snap in the plastic fitting. See Fig. 3-3.
Remove the slot head screw, nut and two flat washers from 4.
the clutch bail. See Fig. 3-4.
Fasten the threaded eyebolt onto the bail by securing it 5.
from the top with the slot head screw, flat washers and lock
nut.
Thread the eyebolt and nut removed earlier into the 6.
internally threaded tube at the end of the cable. The thread
engagement should be about ⁄”. Tighten the nut against
the tube at the end of the cable. See Fig. 3-4.
NOTE: Do not overtighten the clutch cable. Too much
tension may cause it to break.
WARNING! Be certain to check the clutch cable
adjustment before operating the tiller.
Bolts & Flange
Lock Nuts
Handle
Assembly
Handle
Bracket

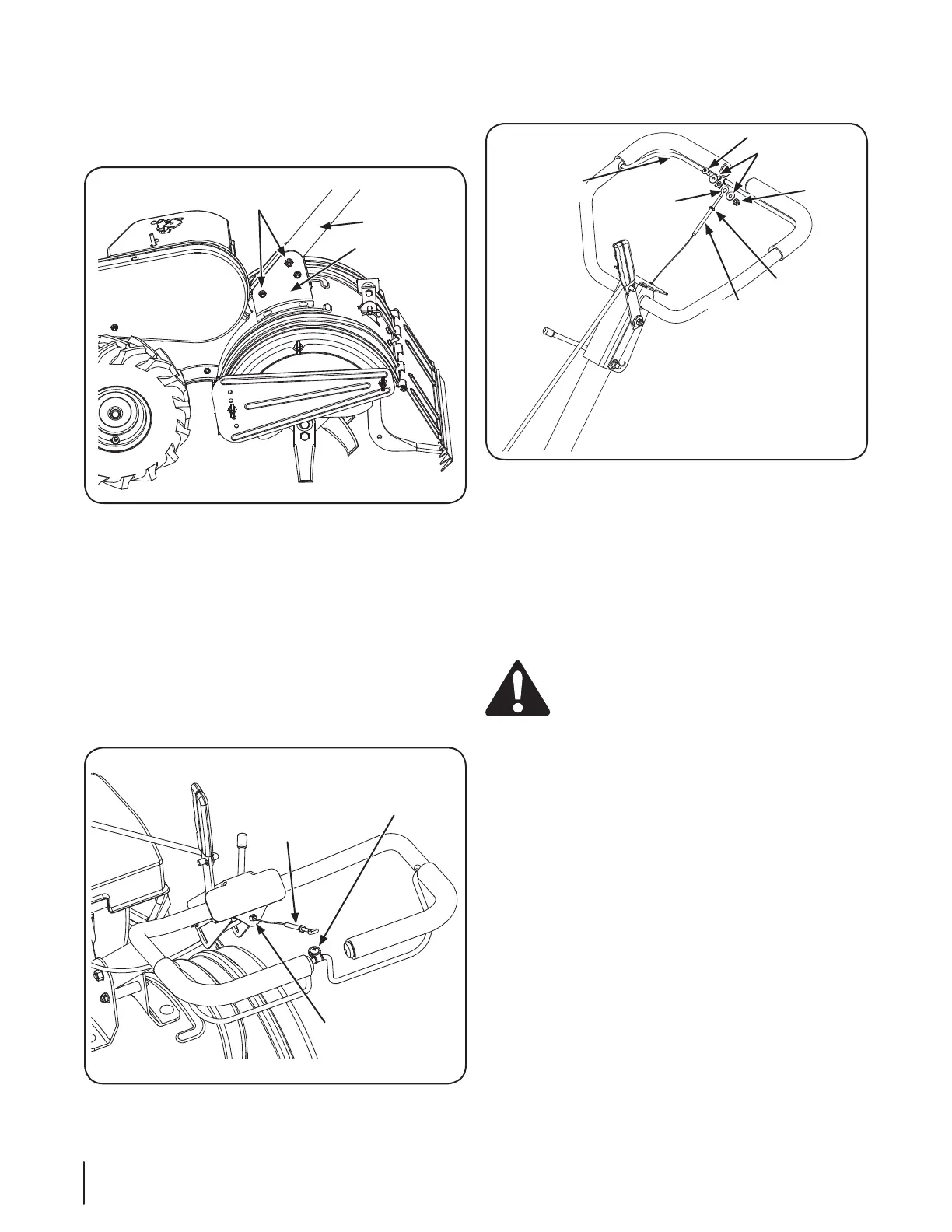

Figure 3-2
Internally
Threaded
Tube
Slot Head Screw,
Nut & Flat Washer
Plastic Fitting
Figure 3-3
Slot Head Screw
Flat Washers
Nut
Nut
Internally
Threaded
Tube
Threaded
Eyebolt
Clutch
Control
Figure 3-4
8 se c t i O n 3— as s e M b l y & se t -up
