11

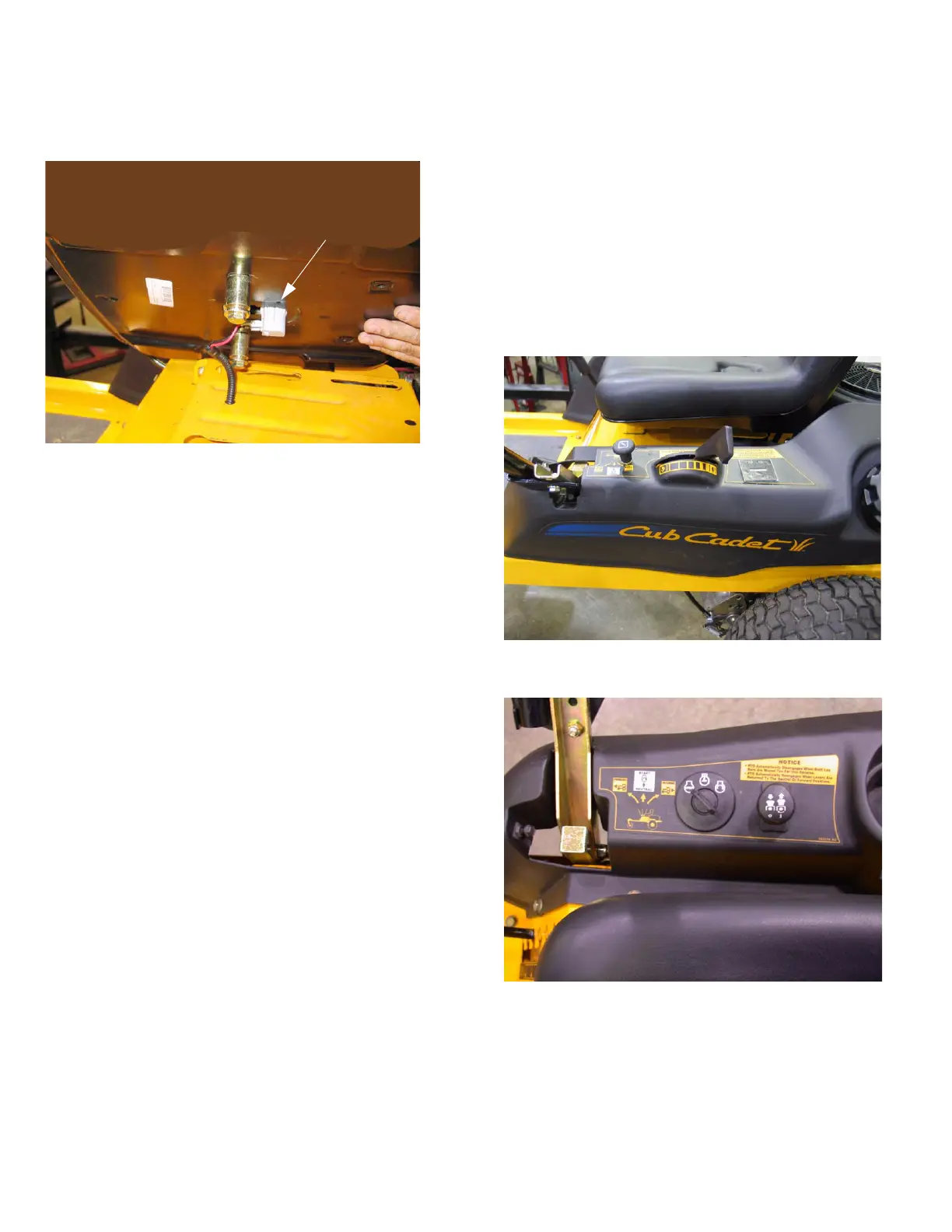

9.5. Disconnect wires from the seat safety switch.
See Figure 9.5.
NOTE: Failure to reconnect seat safety switch
will cause unit not to run.
Figure 9.5
Seat safety switch
10. CONSOLE REMOVAL
The console needs to be removed to do many of the
following procedures. Removing the right and left con-
sole are very similar.
Under or attached to the left side console there is the
neutral switch, starter solenoid, three relays, 20 amp
fuse, choke knob (if applicable), hour meter, throttle
lever and reverse safety switch.
Under or attached to the right side console there is
neutral switch, key switch, reverse safety switch, and
pto switch.
LEFT SIDE CONSOLE
RIGHT SIDE CONSOLE
