Assembly & Set-Up
3
9
Contents of Crate
NOTE:
features may vary by model. Not all features in this manual are
applicable to all tractor models and the tractor depicted may
differ from yours.
Tractor Preparation
Remove the upper crating material from the shipping pallet, and
cut any bands or tie straps securing the tractor to the pallet.
Use the lift handle to raise the deck to its highest position.
tractor; then carefully roll the tractor off the shipping pallet.
transmission) are located beneath the frame platform, just inside
Remove the deck wash system nozzle adapter and oil drain tube
from the manual bag and store for future use.

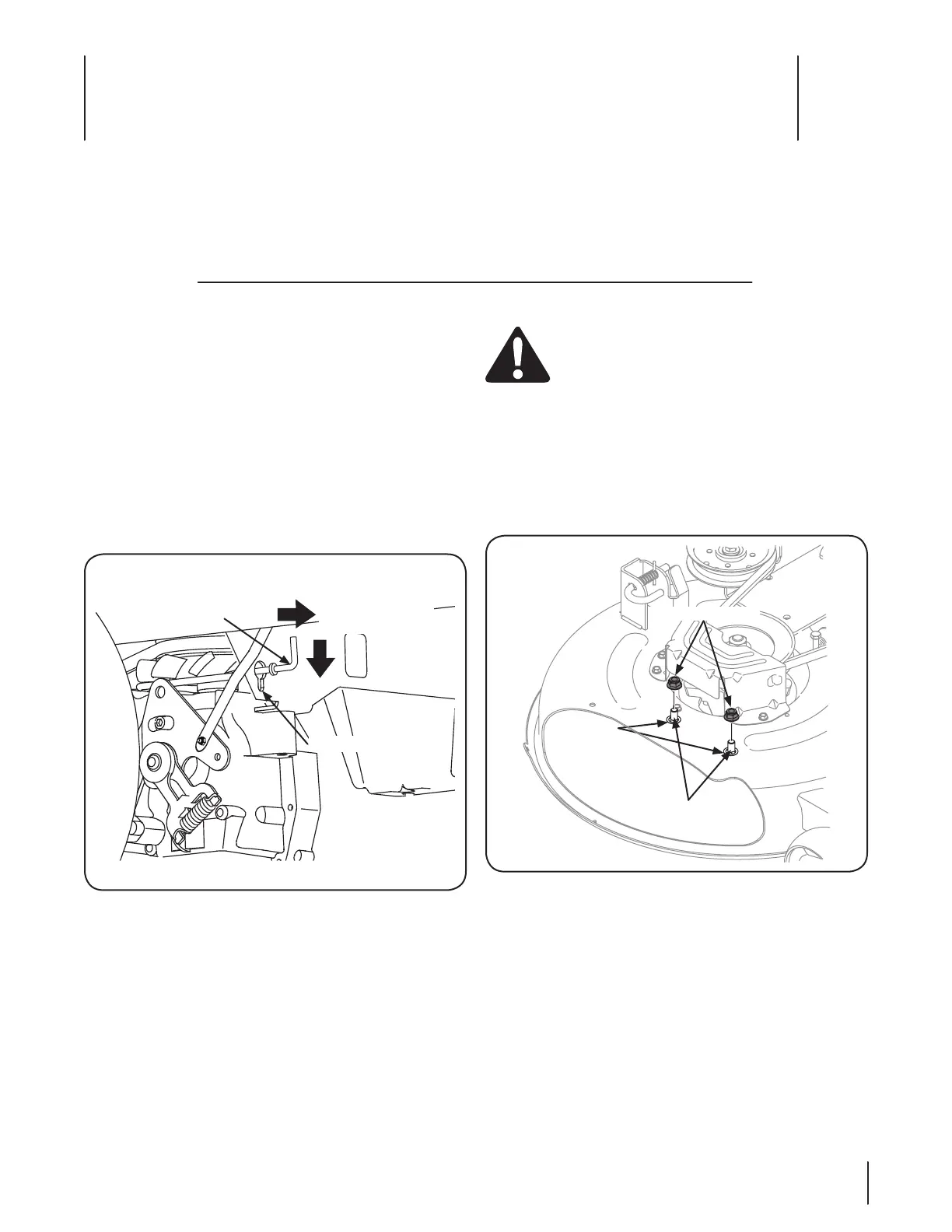

Pull Out Bypass
Rod Then Lower
Into Slot
Keyhole Slot
RH Transmission
Bypass Rod
Figure 3-1
Lower Deck Discharge Chute Deflector
WARNING! Never operate the mower deck without
the chute deflector installed and in the down
position.
before operating the mower.
Remove the keys that are attached with a zip tie to the
chute bracket.
Remove the flange lock nuts from the deck. Do not remove 2.
the push nuts or carriage bolts, leaving them in place will
aid in installing the chute. See Fig. 3-2.
Push Nuts
Flange Lock Nuts
Carriage Bolts
Figure 3-2
To Next Page
