SECTION4: KNOWYOURLAWNTRACTOR
A
B
C
H
NOTE: Steering Wheel not shown for clarity.

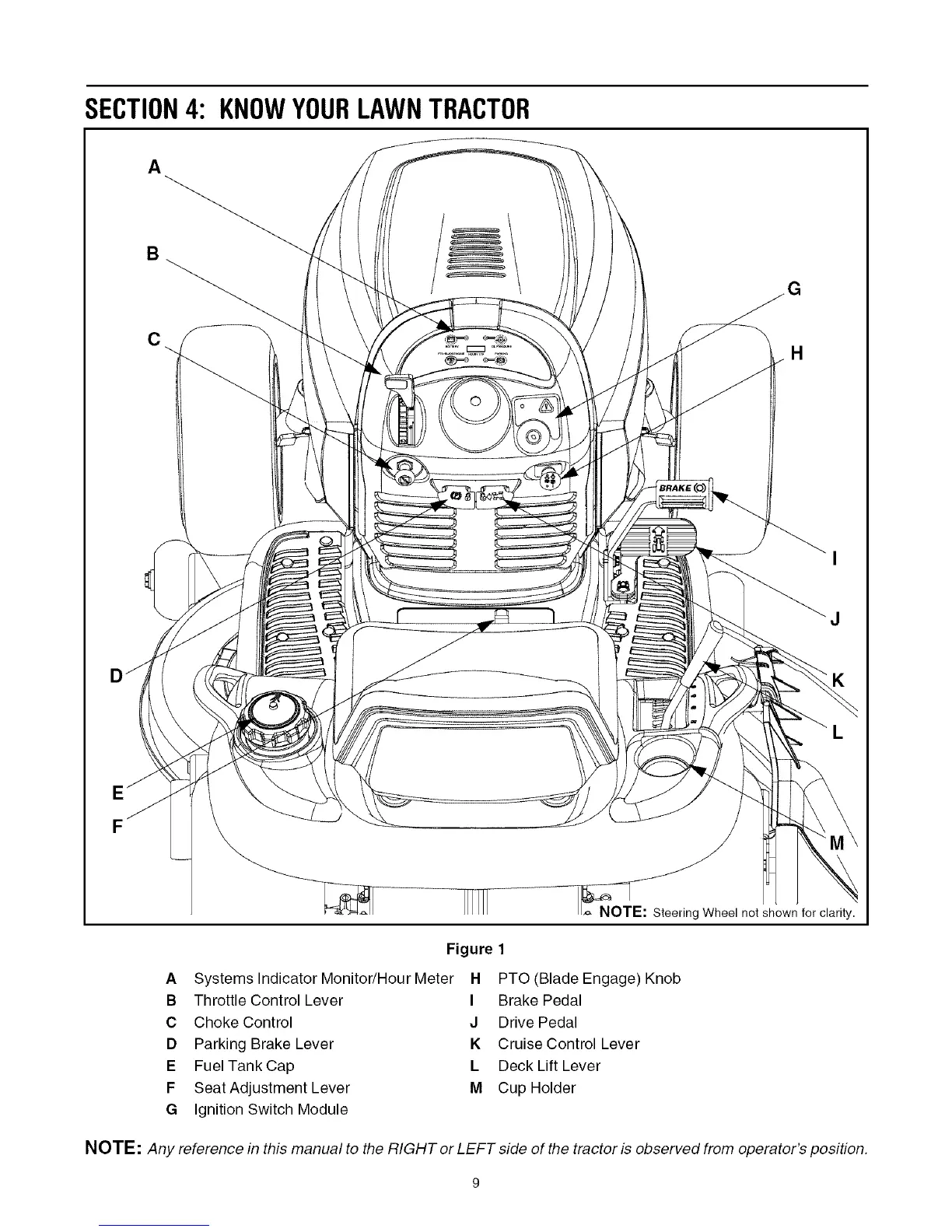

Figure 1
A Systems Indicator Monitor/Hour Meter H PTO (Blade Engage) Knob
B Throttle Control Lever I Brake Pedal
C Choke Control J Drive Pedal
D Parking Brake Lever K Cruise Control Lever
E Fuel Tank Cap L Deck Lift Lever
F Seat Adjustment Lever M Cup Holder
G Ignition Switch Module
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
