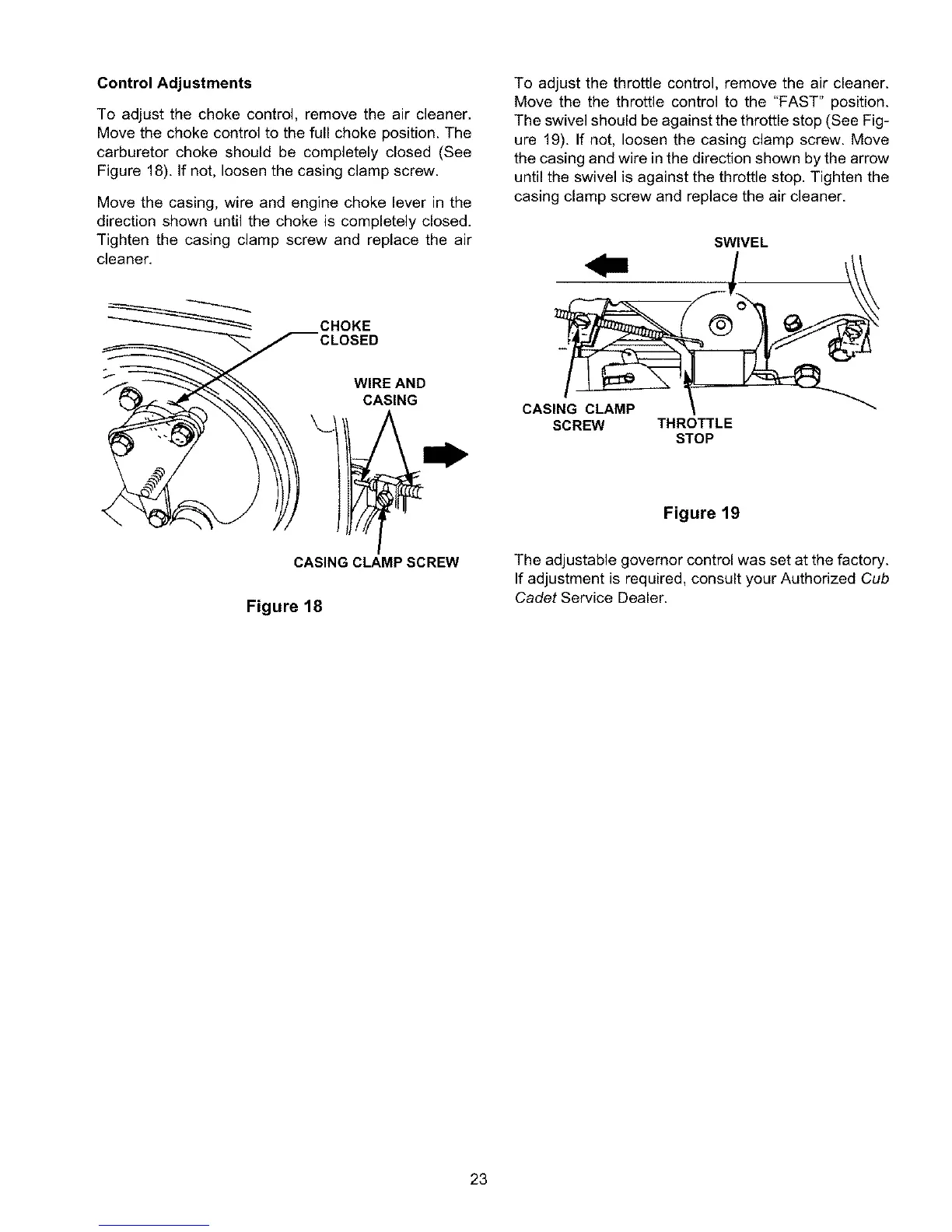

Control Adjustments
To adjust the choke control, remove the air cleaner.
Move the choke control to the full choke position. The
carburetor choke should be completely closed (See
Figure 18). If not, loosen the casing clamp screw.
Move the casing, wire and engine choke lever in the
direction shown until the choke is completely closed.
Tighten the casing clamp screw and replace the air
cleaner.
CHOKE
CLOSED
WIRE AND
CASING
To adjust the throttle control, remove the air cleaner.
Move the the throttle control to the "FAST" position.
The swivel should be against the throttle stop (See Fig-
ure 19). If not, loosen the casing clamp screw. Move
the casing and wire in the direction shown by the arrow
until the swivel is against the throttle stop. Tighten the
casing clamp screw and replace the air cleaner.
CASING CLAMP
SCREW
SWIVEL
THROTTLE
STOP
Figure 19
CASING CLAMP SCREW
Figure 18
The adjustable governor control was set at the factory.
If adjustment is required, consult your Authorized Cub
Cadet Service Dealer.
23
