Assembly & Set-Up
3
9
Contents of Carton
One Lawn Mower• One Grass Catcher• One Grass Catcher Adapter•
One Side Discharge Chute• One Engine Operator’s Manual• One Bottle of Oil•
One Lawn Mower Operator’s Manual•
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your mower.
Handle
Remove any packing material which may be between 1.
upper and lower handles.
Pull up and back on upper handle as shown in Fig. a.
3-1. Make certain the lower handle is seated securely
into the handle mounting brackets. Do not crimp
cables while lifting the handle up.
Tighten star knobs to secure upper handle to lower b.
handle. Make sure that each carriage bolt is seated
properly in the handle.

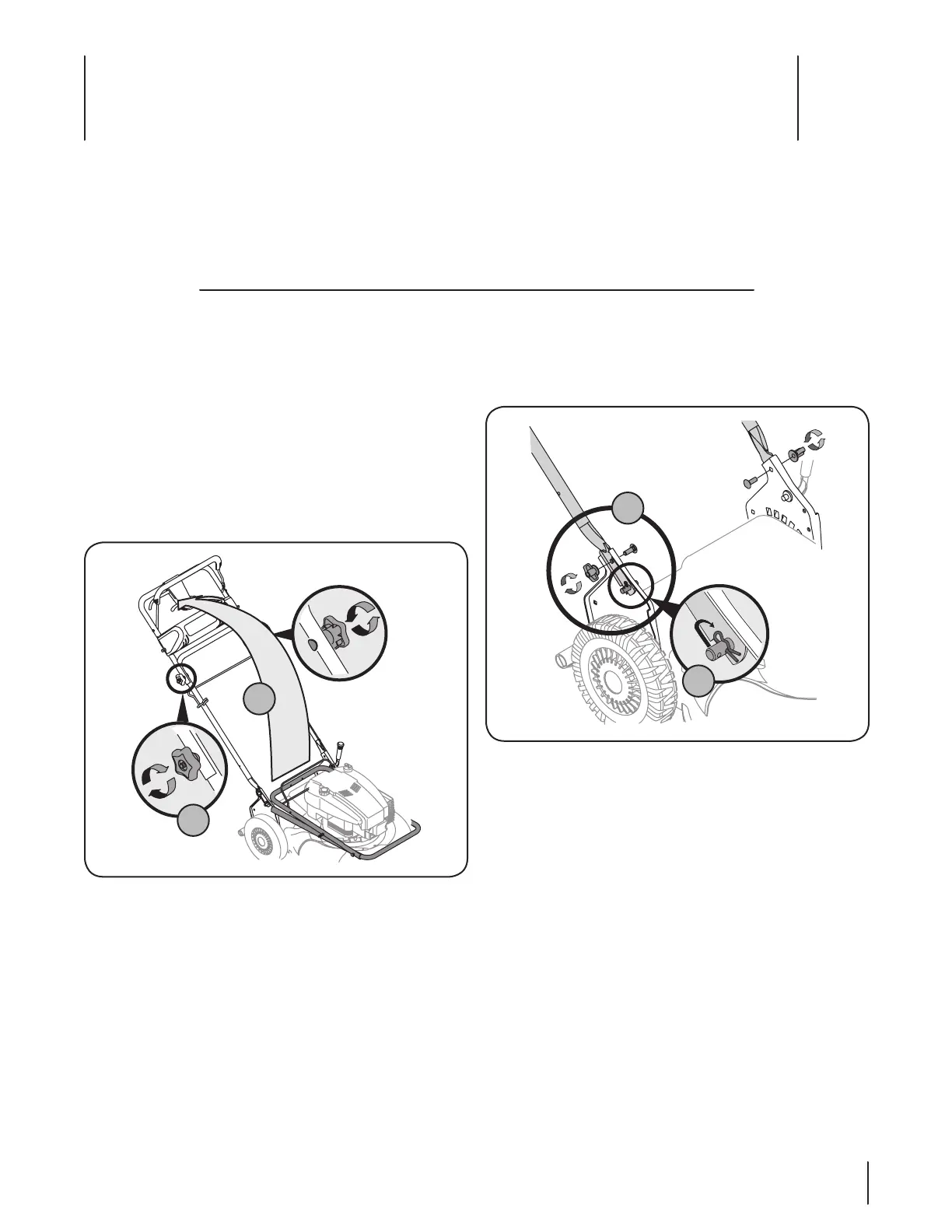

Figure 3-1
Locate the hairpin clip on the weld pin on each side of lower 2.
handle.
Remove hairpin clip from this hole. Using a pair of a.
pliers, insert hairpin clip into the hole on pin closest
to the bracket. See Fig. 3-2. Repeat on other side.
Insert a carriage bolt from the manual bag into the b.
upper hole on the handle mounting bracket. Secure
with one plastic wing nut, also included in the
manual bag. Repeat on other side with remaining
hardware.
NOTE: Make certain the drive cable is routed around the
outside and above the lower handle so it does not interfere
with attaching the grass bag. The chute door has been
designed to move the starter rope out of the way of the
bag when the chute door is opened.
The rope guide, which is connected to the support rod, is 3.
located on the right side of the lower handle. See Fig. 3-3.
Figure 3-2
