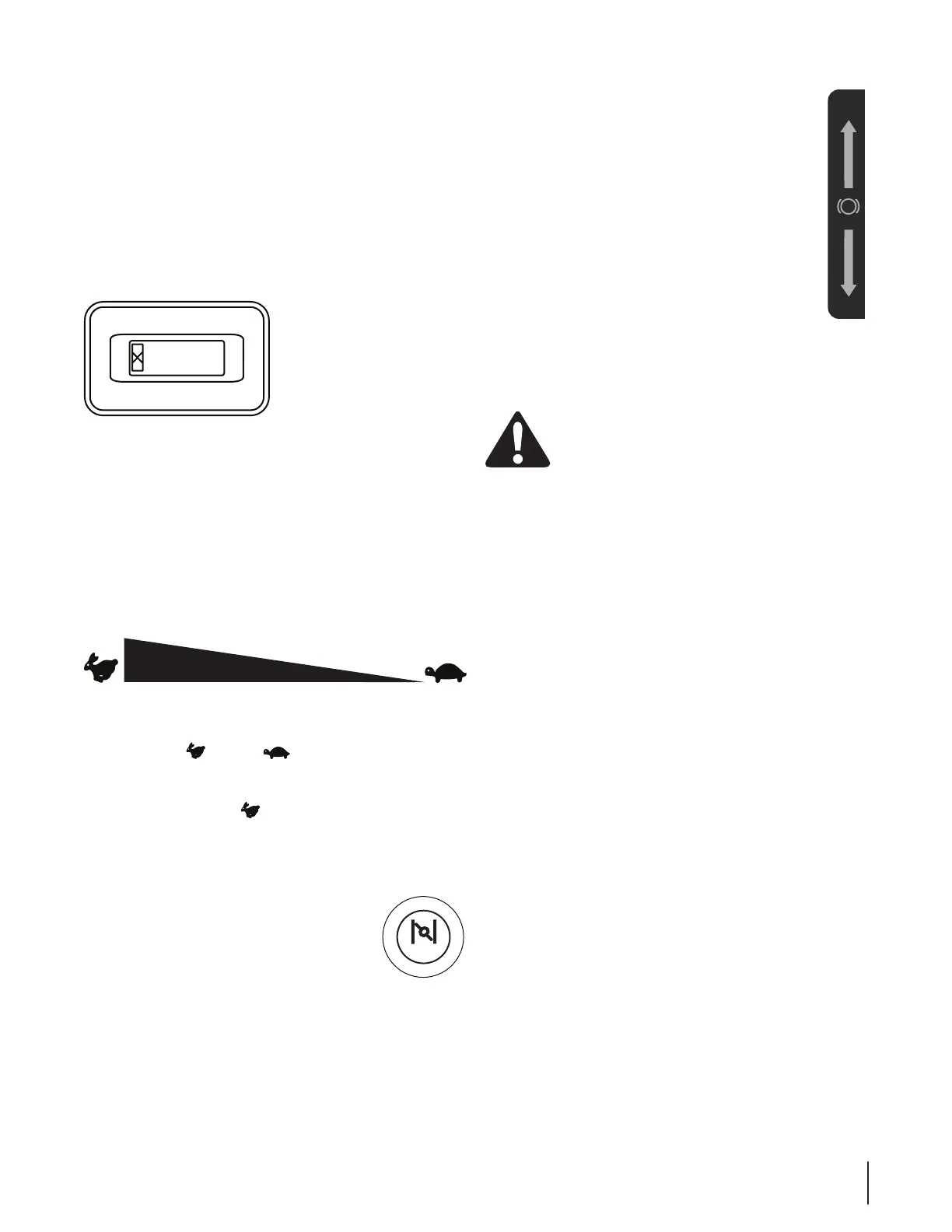

17Section 4 — controlS & FeatureS
Power Take-Off (PTO) Knob
The PTO knob is located on the LH console to the left of the
operator’s seat next to the ignition switch.
The PTO knob operates the electric PTO clutch mounted on
the bottom of the engine crankshaft. Pull the knob upward
to engage the PTO clutch, or push the knob downward to
disengage the clutch.
The PTO knob must be in the “disengaged” position when
starting the engine.
Digital Tachometer and Hour Meter
0.0
The tachometer/hour meter panel is located on the LH console to
the left of the operator’s seat. The hour meter records the hours
that the tractor has been operated in the digital display. The
tachometer provides engine speed (RPM), and service reminders
(oil, lube) in the digital display.
The tachometer/hour meter is activated whenever the ignition
switch is turned to the “ON” position. Keep a record of the actual
hours of operation to assure all maintenance procedures are
completed according to the instructions in this manual and the
engine manual.
Throttle Control
The throttle control is located on the RH console to the right
of the operator’s seat. When set in a given position, a uniform
engine speed will be maintained. The throttle control moves
between the fast and slow positions.
Push the throttle control handle forward to increase the engine
speed. The tractor is designed to operate with the throttle
control in the fast position (full throttle) when the tractor is
being driven and the mower deck is engaged.
Pull the throttle control handle rearward to decrease the engine
speed.
Choke Knob
The choke knob is located on the right side of
the mower next to the operator’s seat. Pull the
knob out to choke the engine; push the knob in to
open the choke. Having the choke in the ON (up)
position helps the engine to start during initial start-up. During
normal operation the choke should be OFF (down).
CHOKE
Parking Brake Lever
The parking brake lever is located on the LH console to
the left of the operator’s seat. When pulled up it engages
the parking brake and when pushed down it releases the
brake.
NOTE: If the LH and RH drive control levers are not fully
opened out in the neutral position when engaging the
parking brake, the engine will stop. The parking brake
must be placed in the engaged position when starting
the tractor engine.
Fuel Tank Cap
The fuel tank cap is located on the top of the fuel tank on the left
side of the seat. Turn the fill cap counter-clockwise to remove and
clockwise until it clicks three times to tighten. Always re-install the
fuel cap tightly onto the fuel tank after removing.
WARNING! Never fill the fuel tank when the
engine is running. If the engine is hot from recently
running, allow to cool for several minutes before
refueling. Highly flammable gasoline could splash
onto the engine and cause a fire.
Cup Holder
The cup holder is located on the LH console to the left of the
operator’s seat.
Seat Adjustment Lever (Not Shown)
The seat adjustment lever is located below the front/right of
the seat. The lever allows for adjustment forward or rearward of
the operator’s seat. Refer to the Assembly & Set-Up section for
instructions on adjusting the seat position.
Arm Rest Height Knobs (Not Shown)
The arm height knobs are located under the seat arms and can be
used to adjust the height of the arm rests. Refer to the Assembly &
Set-Up section for instructions on adjusting the arm rest position.
Mechanical Suspension Mechanism (Not Shown)
The mechanical suspension mechanism is located on the front of
the seat and can adjust the weight/ride adjustment for operators
in the 125- to 275-pound weight range. Refer to the Assembly
& Set-Up section for instructions on adjusting the mechanical
suspension mechanism.
Lumbar Support Lever (Not Shown)
The lumbar support lever is located on the right side of the seat
on the seat back. Refer to the Assembly & Set-Up section for
instructions on adjusting the lumbar support.
Seat Prop (Not Shown)
The seat prop is located on the left, rear side of the operator’s
seat. It is used to prop the seat forward.
Seat Latch (Not Shown)
The seat latch is located below the rear, center of the operators seat.
The latch is used to secure the seat into the operating position. Lift
the latch and tilt the seat forward access the area under the seat.
ON
OFF
P
