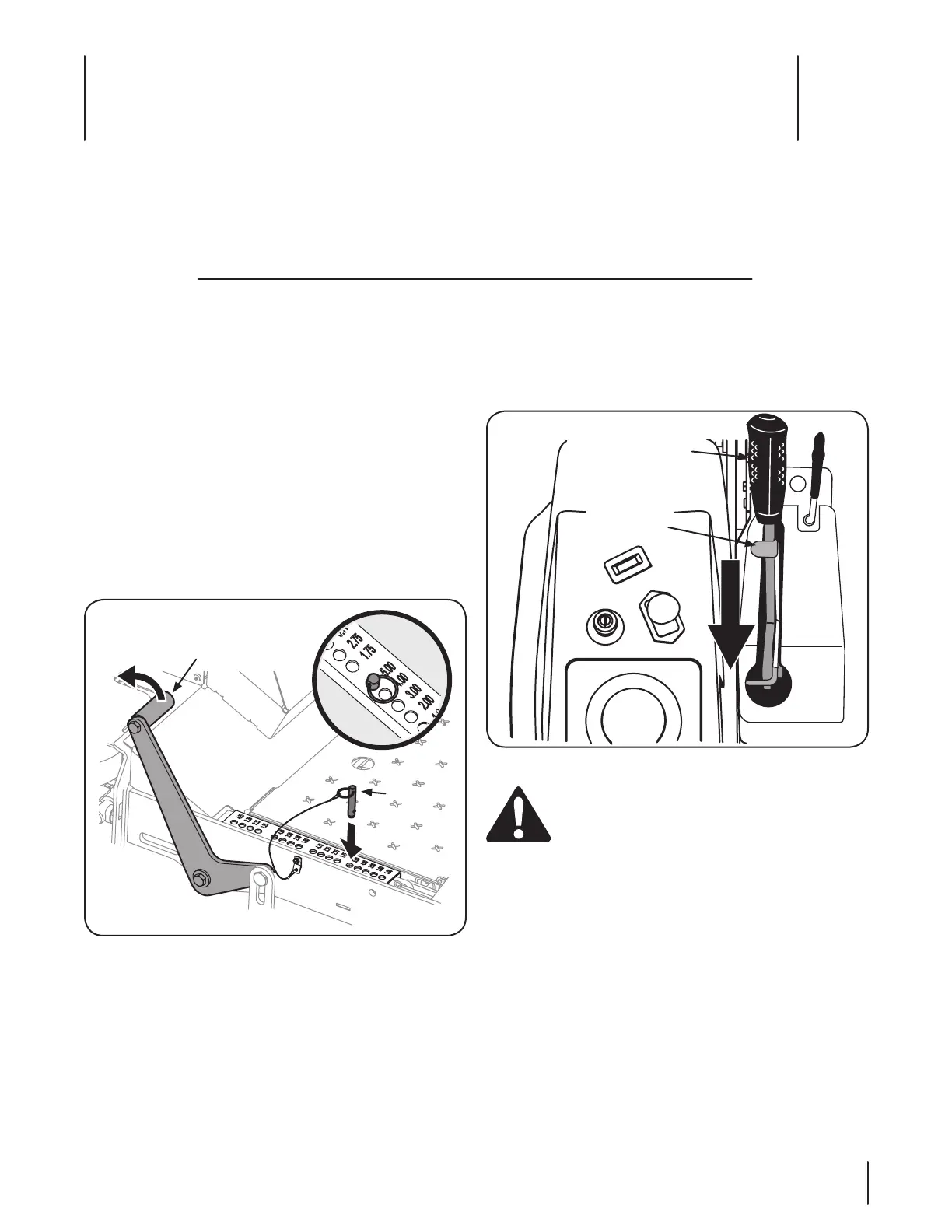

Assembly & Set-Up
3
11
3. The two hydrostatic transmissions are equipped with a
bypass valve that will allow you to manually move the
tractor short distances.
4. Engage the transmission bypass valves by pulling the
bypass lever inward freeing it from the parking brake lever
and pull back all the way. See Figure 2-2.
Transmission
Bypass Lever
Parking
Brake Lever
Figure 2-2
WARNING! Do not tow the tractor, even with the
bypass valves engaged. Serious transmission
damage will result from doing so.
5. Carefully roll the tractor off the shipping pallet.
6. To release the bypass lever, push the lever forward until it
clicks back onto the parking brake lever.
7. To engage the parking brake, pull back completely on the
parking brake lever.
8. Remove the deck wash system nozzle adapter from the
manual bag and store for future use. Cut the wire tie holding
the chute deflector up and discard any packing material.
NOTE: This Operator’s Manual covers several models. Tractor
features may vary by model. Not all features in this manual are
applicable to all tractor models and the tractor depicted may
differ from yours.
NOTE: All references in this manual to the left or right side and
front or back of the tractor are from the operating position only.
Exceptions, if any, will be specified.
Tractor Preparation
TOOLS NEEDED: Safety glasses, leather gloves, wire cutters.
1. Remove the upper crating material from the shipping
pallet, and cut any bands or tie straps securing the tractor
to the pallet.
2. Use the deck lift pedal to raise the deck to its highest
position and secure in place with the clevis pin attached to
the tractor. See Figure 2-1.
Deck Lift Pedal
Clevis Pin
Figure 2-1
Contents of Crate
One Zero-Turn Tractor One ROPS Assembly One Deck Wash Hose Coupler
One Zero-Turn Tractor Operator’s
Manual
One Engine Operator’s Manual
