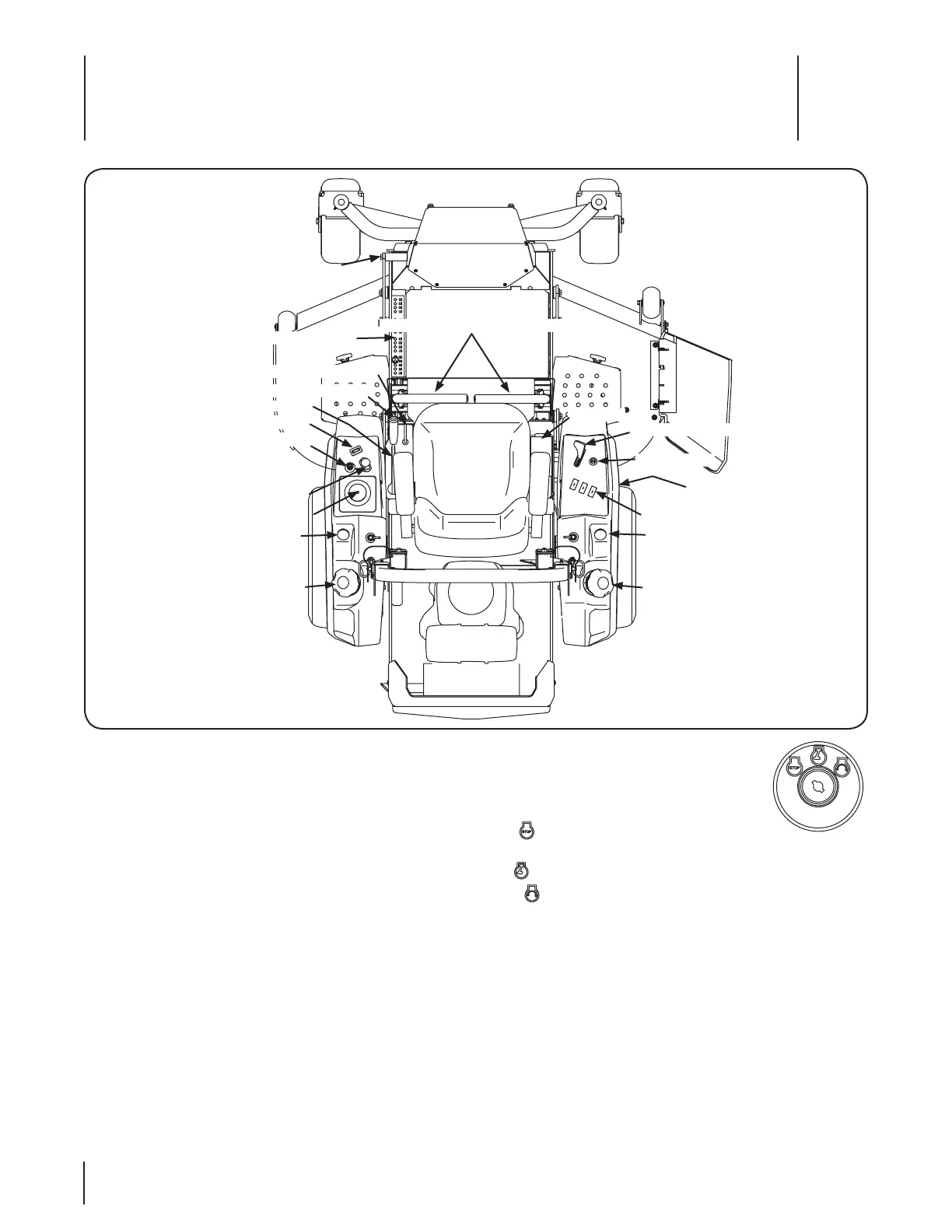

Controls & Features
4
16
Accessory Switch Receptacles
Transmission Bypass Lever
Digital Tachometer & Hour Meter
Throttle Control
Parking Brake Lever
Fuel Tank Cap
Fuel Tank Cap
Cup Holder
Deck Height Index
Deck Lift Pedal
Deck Lift Release Lever
Fuel Gauge
Fuel Gauge
Tool Box
RH & LH Drive Control Levers
Choke Knob
Ignition Switch
PTO Knob
Transmission Bypass Lever
NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate that
position on the tractor when facing forward while seated in the
operator’s seat.
RH and LH Drive Control Levers
The RH and LH control levers are located on each side of the
operators seat. These hinged levers pivot outward to open
space to permit the operator to either sit in the tractor seat, or to
dismount the tractor. The levers must be fully opened out and in
the neutral position to start the tractor engine.
Each lever controls the respective RH or LH transmission. These
levers control all of the movements of the tractor. Driving and
steering utilizing these control levers is quite different from
conventional tractors, and will take some practice to master.
Refer to Operation for instructions on using the control levers.
Ignition Switch
The ignition switch is located on the LH console
to the right of the operator’s seat. The ignition
switch has three positions as follows:
STOP — The engine and electrical system is
turned off.
RUN — The tractor electrical system is energized.
START — The starter motor will turn over the engine. Release
the key immediately when the engine starts
NOTE: To prevent accidental starting and/or battery
discharge, remove the key from the ignition switch when
the tractor is not in use.
