Section 6 — Maintenance & adjuStMentS
33
3. Rotate the drum back and forth to make sure the brake shoes
are not rubbing excessively, if they are rotate the adjusting
star back slightly until there is just a slight rub.
NOTE: A slight rub is acceptable since a used brake will seat.
4. To contract the brake shoes, rotate the star adjustment
outward away from the axle until there is a slight rub
between the shoes and the drum. See Figure 5-9.
5. Repeat the procedure for the opposite brake shoe.
Removing/Installing the Inner Baffle
The inner flow-control baffle can be removed depending on the
mowing conditions. The baffle controls discharge and can be
removed for high-volume grasses and installed for precision cutting.
1. Remove the carriage bolts, push nuts and flange lock nuts
that secure the baffle to the deck to mow high-volume
grasses. See Figure 5-10.

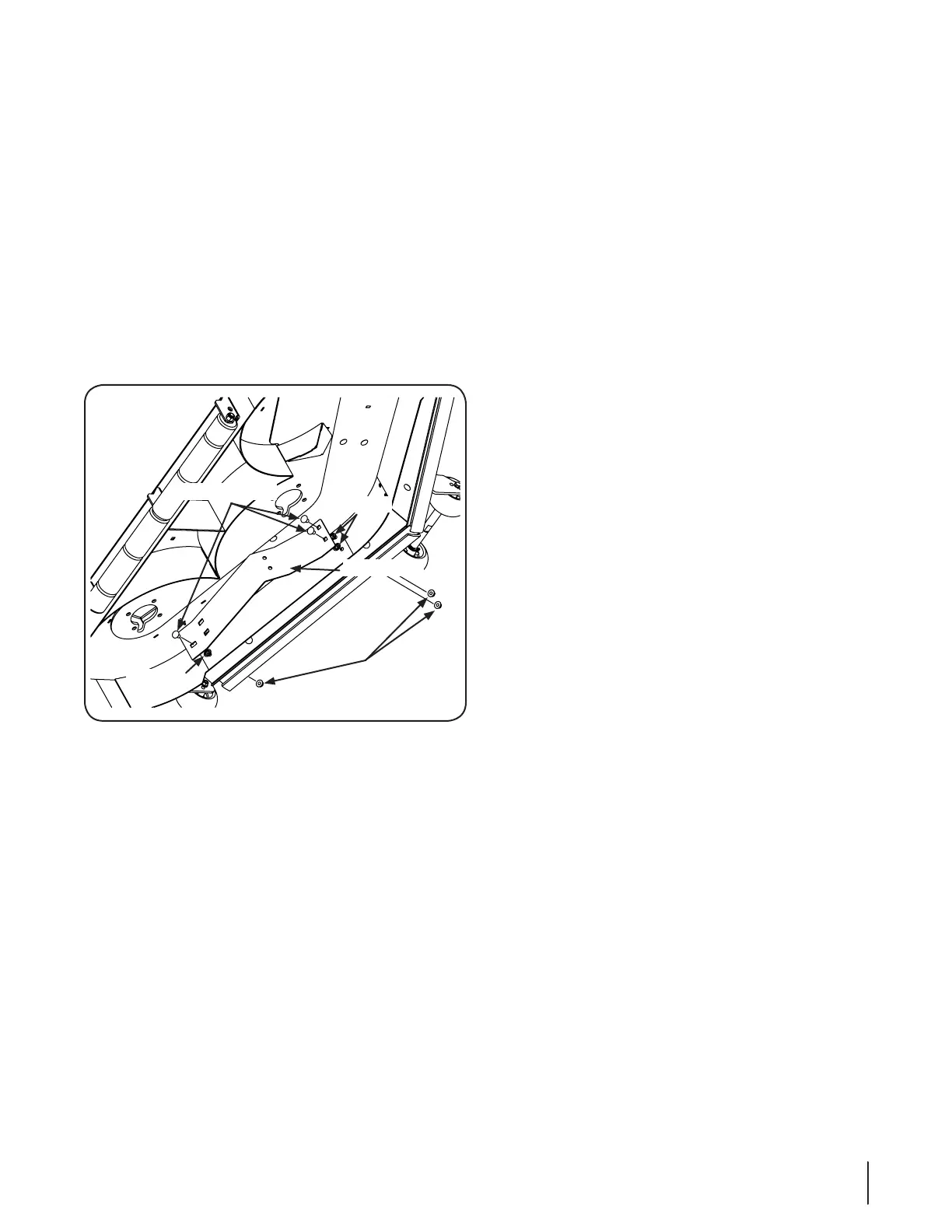

Flange
Lock
Nuts
Carriage Bolts
Inner Baffle
Push Nut
Push Nut
Figure 5-10
2. Re-install the inner baffle for precision cutting and make
sure the baffle is properly secured.
