14 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n

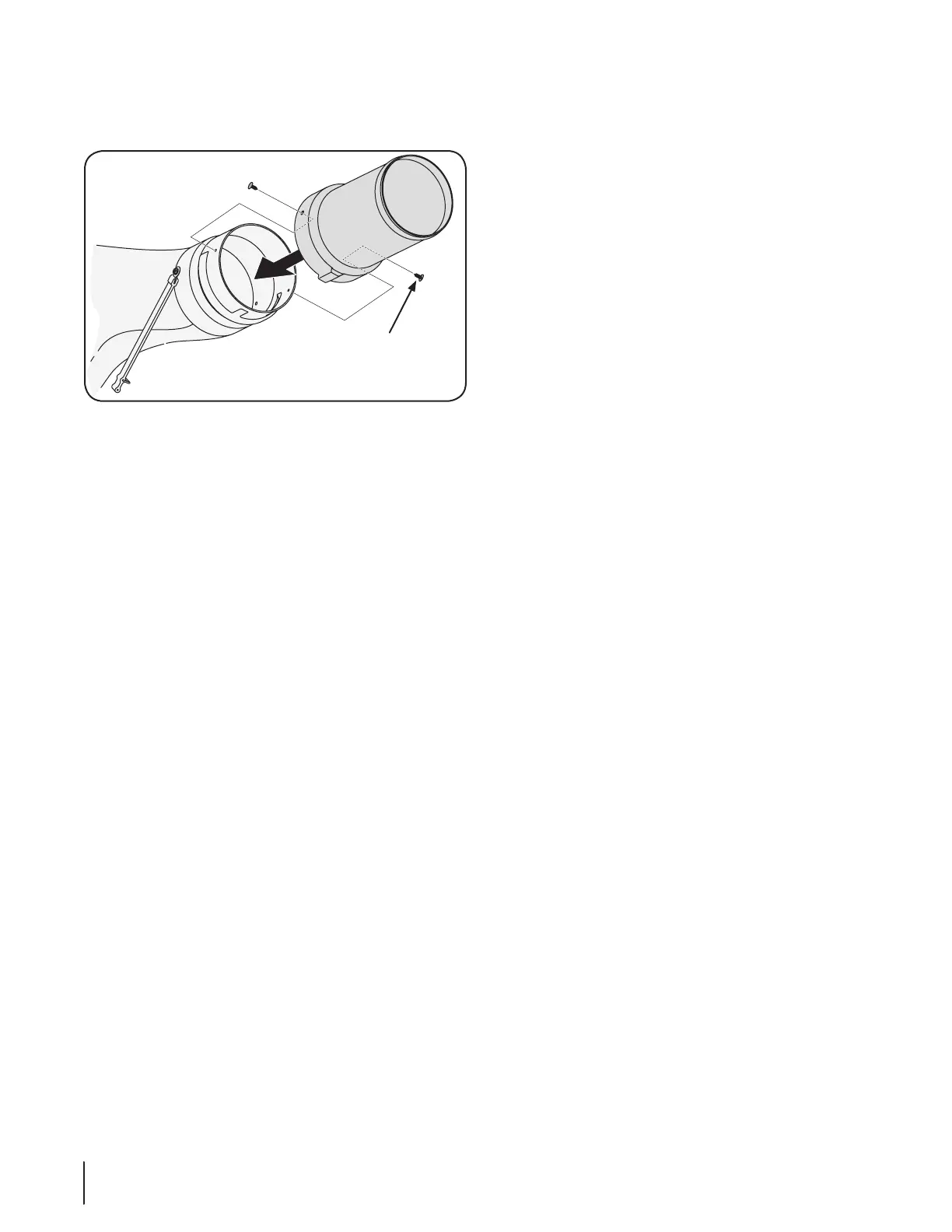

Install the chute adapter onto the chute elbow by 4.
lining up the tabs and sliding the adapter over the
chute elbow, as in Fig. 4-16. Secure with two 726-3046
ratchet clips from hardware pack 689-00179.
Ratchet Clip
Figure 4-16
