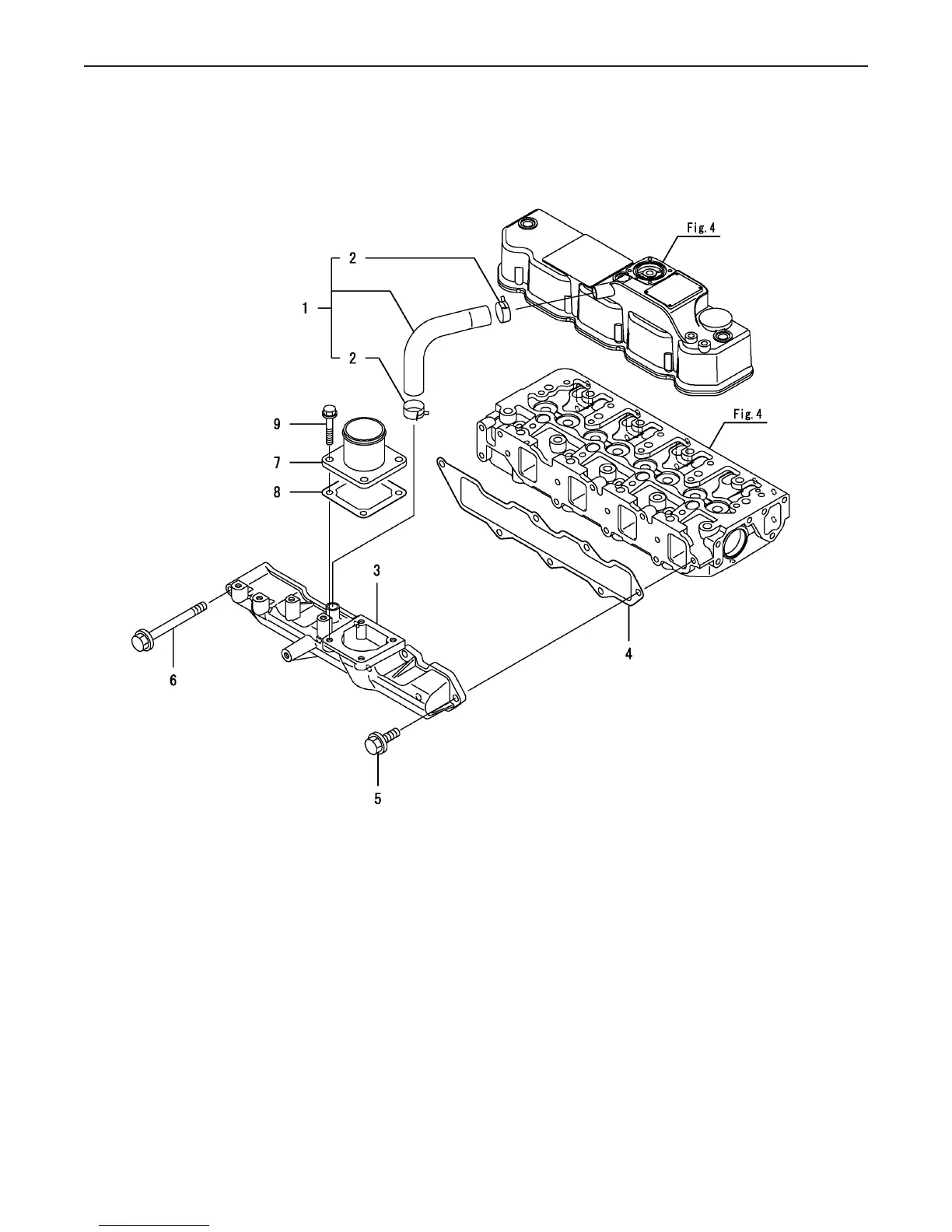

Fig 5. Suction Manifold
Fig.5. SUCTION MANIFOLD
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
5. SUCTION MANIFOLD
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PIPE, BREATHER129005-0308011 11
CLAMP 22129410-0399022 22
MANIFOLD, AIR INTAKE129602-1210113 11
GASKET, MANIFOLD129407-1211014 11
BOLT M 8X 20 PLATED26106-08020215 66
BOLT M 8X 80 PLATED26106-08080216 11
JOINT, MANIFOLD129486-1258117 11
GASKET, AIR HEATER129150-7751118 11
BOLT M 8X 20 PLATED26106-08020219 44
