Lx450Lx Series
18
Copyright 2011 Cub Cadet Yanmar LLC

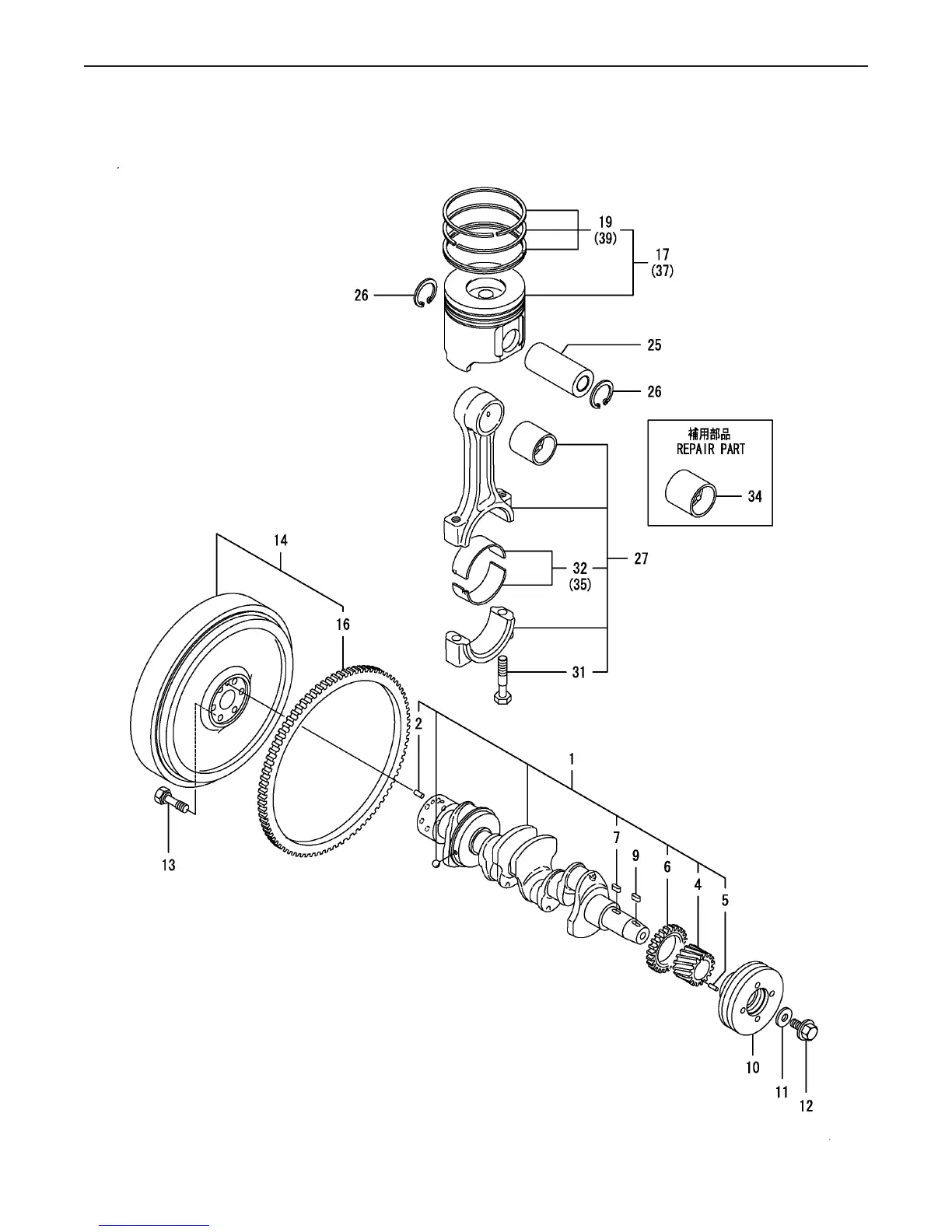

Fig 8. Crankshaft & Piston
Fig.8. CRANKSHAFT & PISTON
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
(2)Under-sized(U.S.=0.25)part.
(3)Over-sized(O.S.=0.25)part.
0CNP5-G38200
8. CRANKSHAFT & PISTON
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
CRANKSHAFT ASSY129652-2101011 11
PIN, PARALLEL129100-0158022 11
GEAR, CRANKSHAFT119803-2120024 11
PIN121850-2129025 11
GEAR, BALANCER129400-2812126 11
KEY, 7X1422512-07014027 11
KEY, 7X1422512-07014019 11
V-PULLEY, CRANKSHAFT119852-21650110 11
WASHER129795-21661111 11
BOLT, V-PULLEY121850-21680112 11
BOLT, FLYWHEEL121111-21501113 66
FLYWHEEL ASSY129635-21590114 11
GEAR, RING124550-21600216 11
PISTON W/RINGS129005-22080117 44
RING SET, PISTON129005-22500219 44
PIN, PISTON(D26,L70)129202-22300125 44
CIRCLIP 2622252-000260126 88
ROD ASSY, CONNECTING729402-23100127 44
BOLT, CONNECTING ROD121550-23200231 88
METAL, CRANKPIN129150-23601232 44
1METAL, PISTON PIN129100-23910134 44
2METAL.PIN US=0.25129150-23611135 44
3PISTON W/RINGS OS.25129005-22900137 44
3RING SET, PISTON .25129005-22950239 44
(C)Copy Rights YANMAR CO.,LTD.
