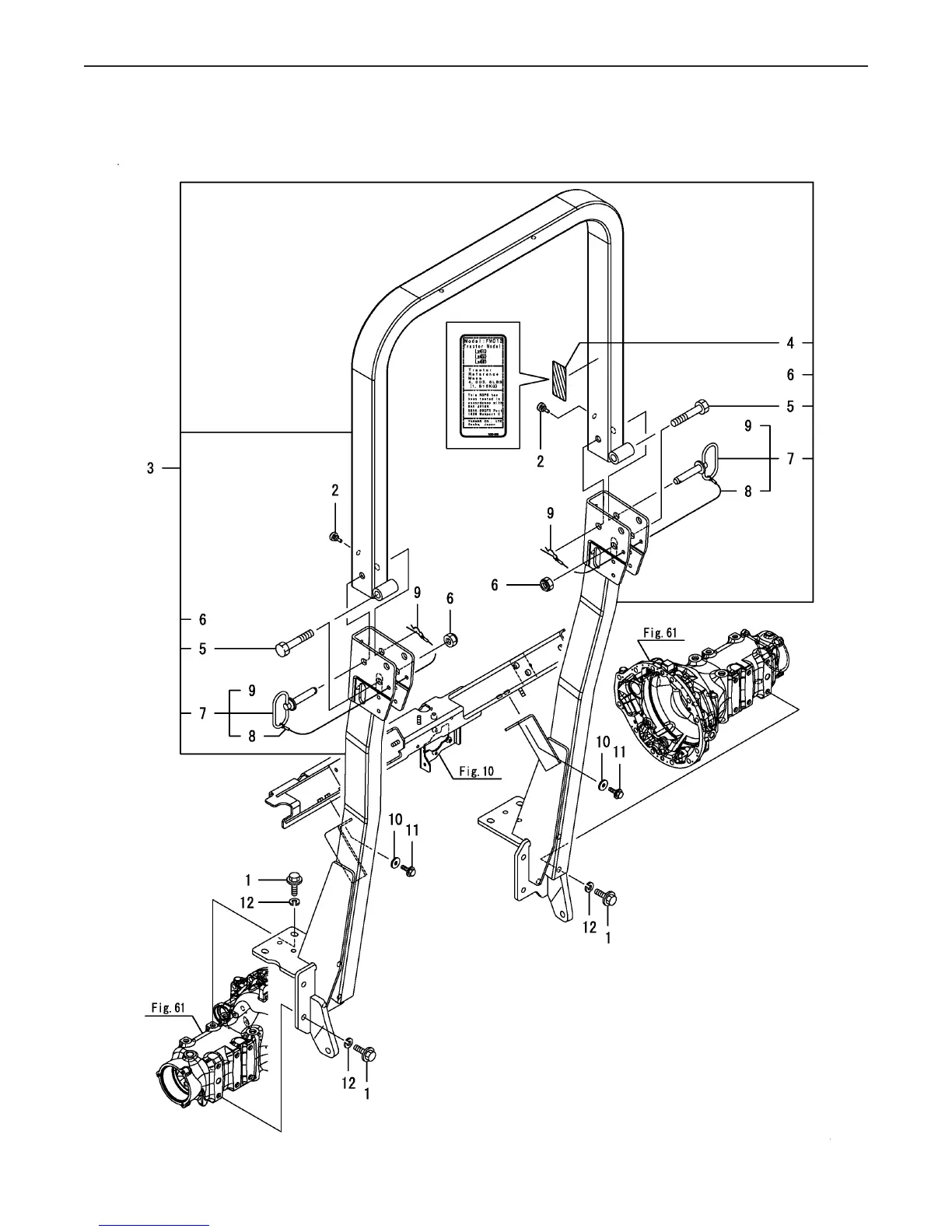

Fig 130. Roll Guard
Fig.130. ROLL GUARD
0CNP5-G37900
0CNP5-G37900
130. ROLL GUARD
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
BOLT 12X38198220-1152011 141414
STOPPER, PEDAL194330-6253012 222
ROPS M ASSY,1A8250-8509013 111
LABEL,ROPS STANDARD1A8250-6582024 111
BOLT, M16X901A8300-8543025 222
NUT, M16 (NYLOCK1A8300-8544026 222
PIN ASSY, STOPPER1A8300-8591027 222
PIN STOPPER CMP1A8300-8592038 222
HITCH PIN CLIP1A8300-8593039 222
WASHER 822157-080000110 444
BOLT M 8X 20 PLATED26106-080202111 444
SPRING WASHER 12194274-13580112 141414
