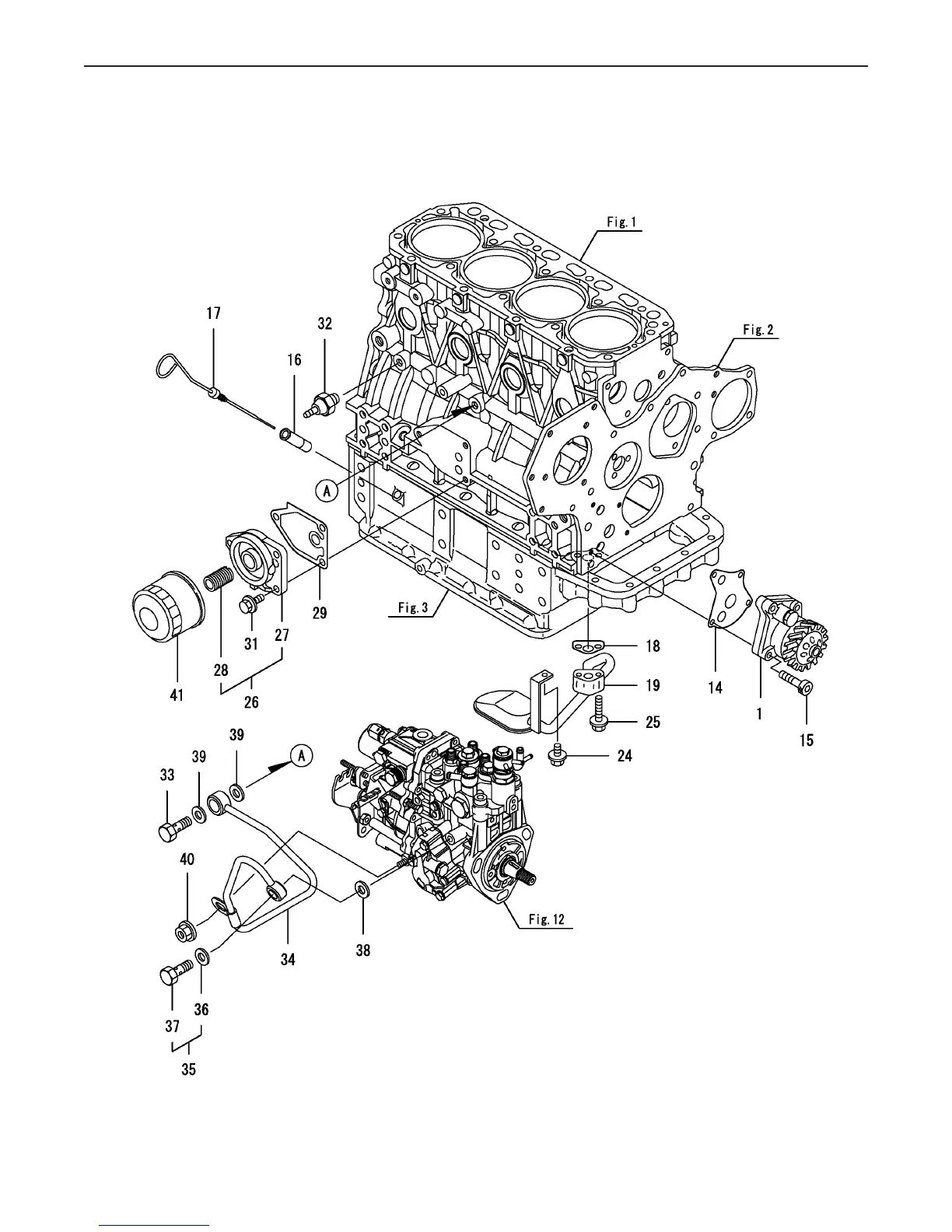

Fig 10. Lub. Oil System
Fig.10. LUB. OIL SYSTEM
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
0CNP5-G38200
10. LUB. OIL SYSTEM
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PUMP ASSY, LUB.OIL129407-3200011 11
GASKET, PUMP129150-32020114 11
BOLT, M6X2526450-060252115 44
GUIDE, DIPSTICK121520-34810116 11
DIPSTICK, LUB.OIL129558-34820117 11
GASKET, PIPE129150-35042118 11
PIPE ASSY, OIL INLET129550-35090119 11
BOLT M 8X 12 PLATED26106-080122124 11
BOLT M 8X 35 PLATED26106-080352125 22
BRACKET ASSY, FILTER119802-35100126 11
BRACKET, FILTER119802-35110227 11
STUD129100-35140228 11
GASKET, BRACKET129150-35111129 11
BOLT M 8X 20 PLATED26106-080202131 33
SWITCH, OIL PRESSURE114250-39450132 11
BOLT, JOINT M10124160-39140133 11
PIPE ASSY, LUB.OIL119802-39450134 11
BOLT ASSY, JOINT129005-59830135 11
SEAL WASHER 8S22190-080002236 11
JOINT BOLT 323857-030000237 11
SEAL WASHER 8S22190-080002138 11
WASHER, 1022190-100002139 22
NUT M 626366-060002140 11
1FILTER 80X80L129150-35153141 11
