Lx450Lx Series
28
Copyright 2011 Cub Cadet Yanmar LLC

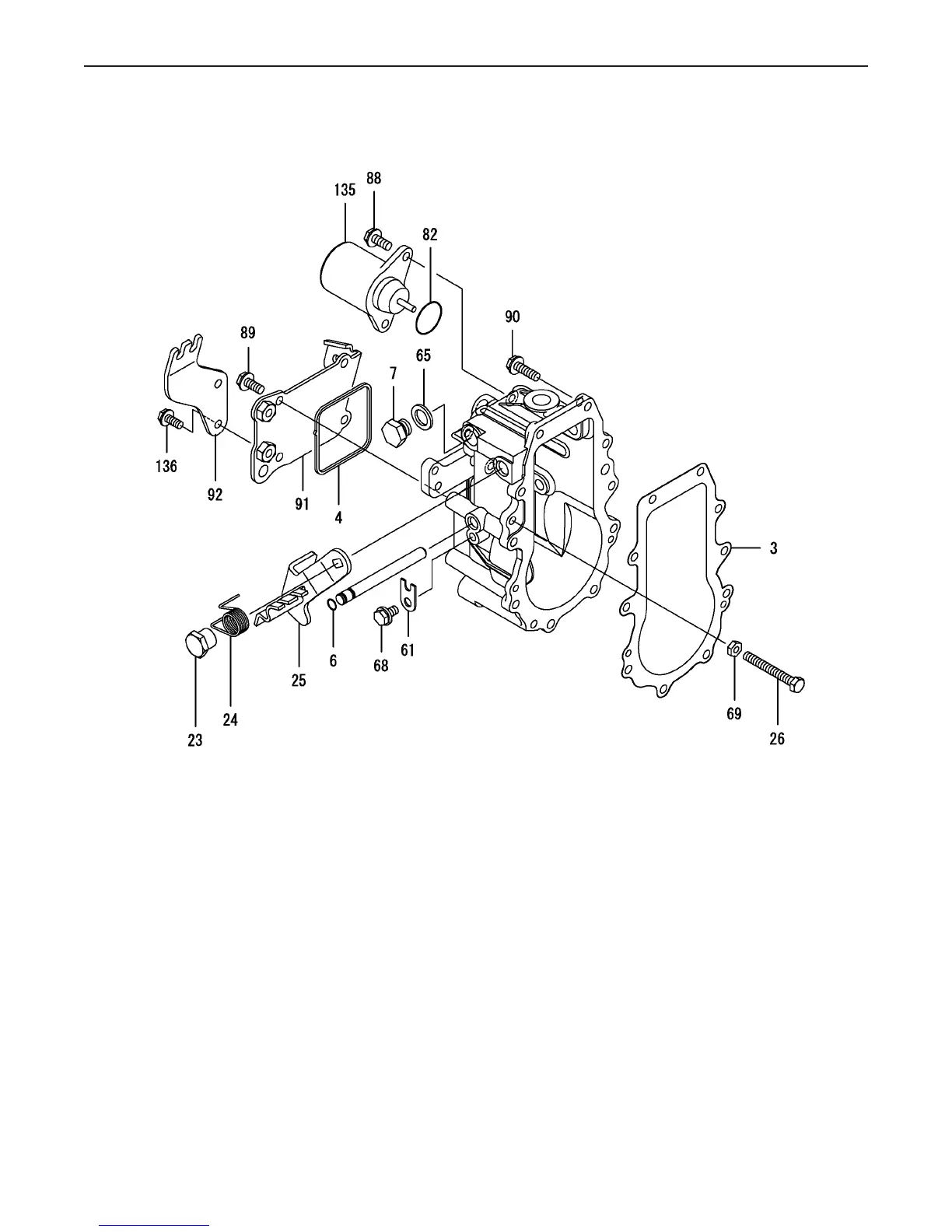

Fig 14. Governor
Fig.14. GOVERNOR
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
*This figure(Governor)is incorporated
in the Fuel Injection Pump
(Fig.12 or 13).
0CNP5-G38200
14. GOVERNOR
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PACKING, CASE158553-6105023 11
PACKING, COVER158553-6107024 11
O-RING, S6129155-5128026 11
PLUG,M12158553-5193027 11
NUT129255-61410223 11
SPRING, RETURN119807-61420224 11
LEVER ASSY,REGULATOR119852-61440225 11
BOLT, IDLE129155-61460226 11
RETAINER, SHAFT119660-61901261 11
SEAL WASHER 1222190-120002265 11
BOLT 6X 10 PLATED26106-060102268 11
LOCK NUT 626756-060002269 11
O-RING158552-61900282 11
BOLT M 6X 14 PLATED26106-060142288 22
BOLT M 6X 14 PLATED26106-060142289 44
BOLT M 6X 20 PLATED26106-060202290 1010
COVER, GOVERNOR CASE158552-61061291 11
SUPPORT, WIRE119852-61080292 11
SOLENOID, STOP119653-779502135 11
BOLT M 6X 14 PLATED26106-0601422136 22
(C)Copy Rights YANMAR CO.,LTD.
