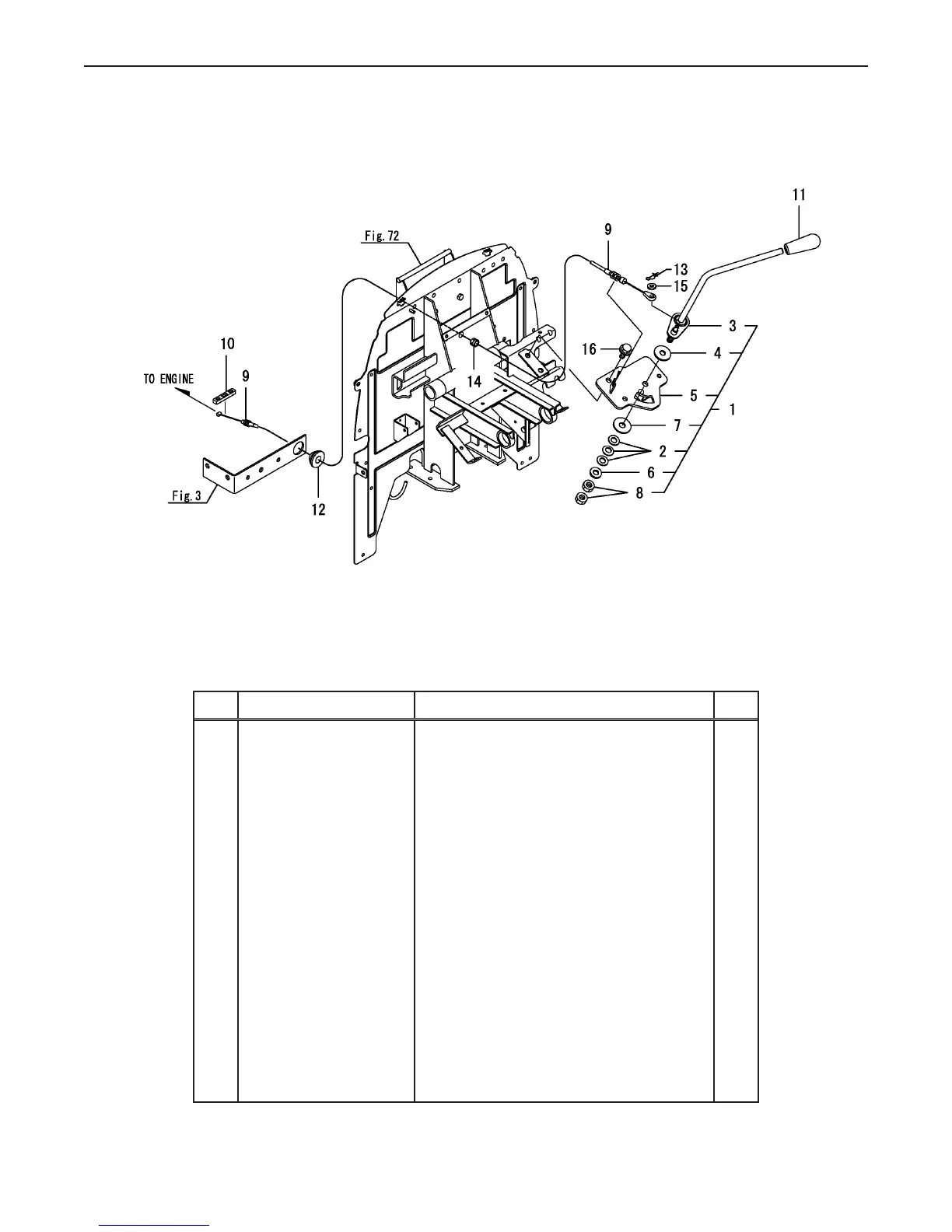

Fig 6. Accelerator Lever
Fig.6. ACCEL LEVER
0CNP5-G37900
0CNP5-G37900
6. ACCEL LEVER
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
LEVER ASSY, ACCEL1A8250-0110011 111
WASHER 10, CONICAL194740-0016022 333
LEVER, ACCEL1A8250-0111023 111
PLATE, FRICTION198200-0126024 111
SUPPORT ASSY, ACCEL1A8250-0215025 111
WASHER 10,POLISHED22137-10000026 111
WASHER 1022157-10000027 111
NUT 1026716-10000228 222
CABLE ASSY, HAND1A8250-0115019 111
RUBBER,WIRE RETAING198071-01160110 111
KNOB, THROTTLE LEVER198253-01190111 111
GROMMET 25194170-51210112 111
PIN 6,COME-OFF SNAP1C6281-52310113 111
GROMMET 8198071-58810114 111
WASHER 6, POLISHED22137-060000115 111
BOLT M 8X 16 PLATED26106-080162116 222
(C)Copy Rights YANMAR CO.,LTD.
Ref.
Part Number Description Qty
1 CY-1A8250-01100 LEVER ASSY, ACCEL 1
2 CY-194740-00160 WASHER 10, CONICAL 3
3 C Y-1A 82 50 - 01110 LEVER, ACCEL 1
4 CY-198200- 01260 PLATE, FRICTION 1
5 CY-1A8250-02150 SUPPORT ASSY, ACCEL 1
6 CY-22137-100000 WASHER 10,POLISHED 1
7 CY-22157-100000 WASHER 10 1
8 CY-26716-100002 NUT 10 2
9 CY-1A8250-01150 CABLE ASSY, HAND 1
10 CY-198071-01160 RUBBER,WIRE RETAING 1
11 CY-198253-01190 KNOB, THROTTLE LEVER 1
12 CY-198245-51210 GROMMET 25 1
13 CY-1C6281-52310 PIN 6,COME-OFF SNAP 1
14 CY-198071-58810 GROMMET 8 1
15 CY-22137-060000 WASHER 6, POLISHED 1
16 CY-26106-080162 BOLT M 8X 16 PLATED 2
