Fig 6. Exhaust Manifold & Muer

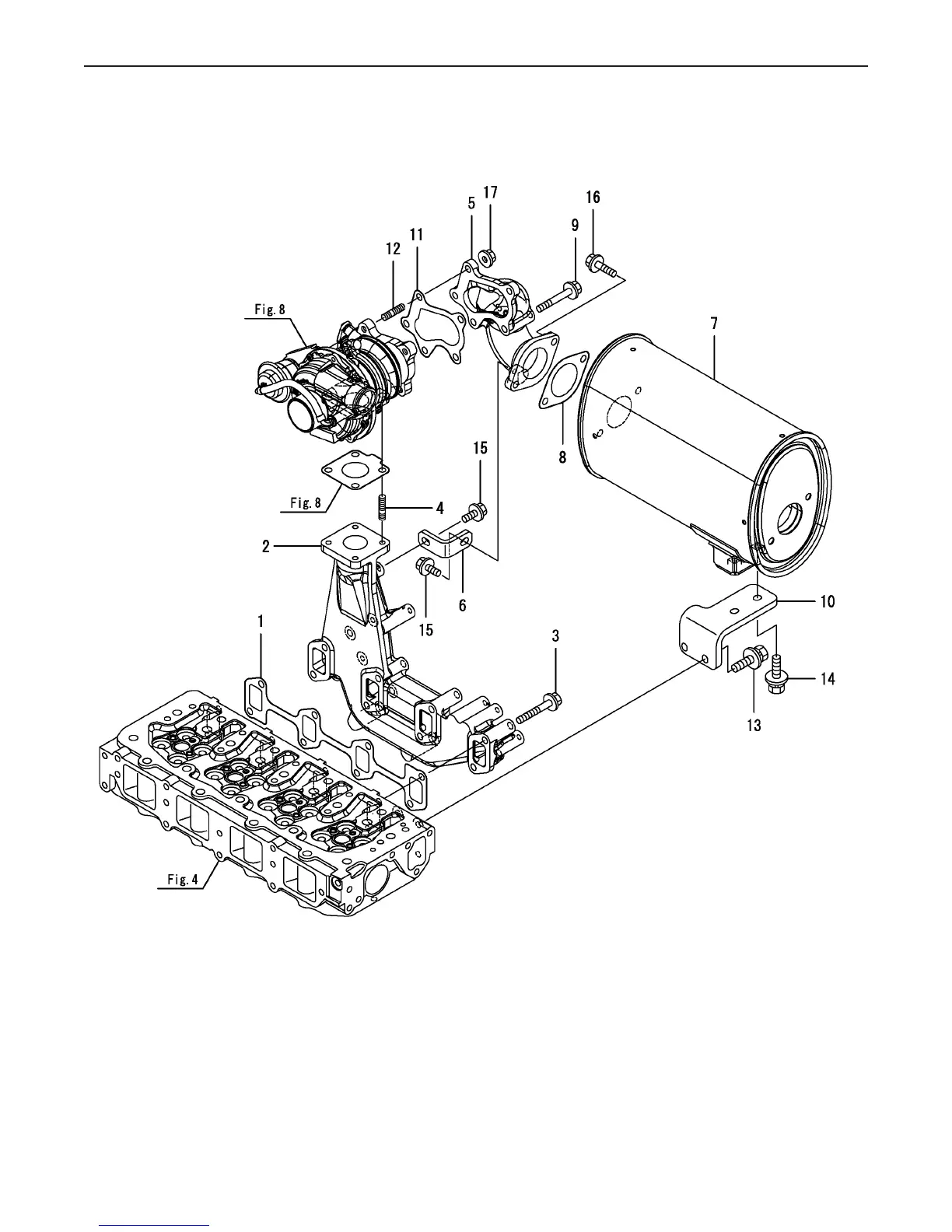

Fig.6. EXHAUST MANIFOLD & SILENCER
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
6. EXHAUST MANIFOLD & SILENCER
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
GASKET, EXH.MANIFOLD129550-1311011 1
MANIFOLD, EXHAUST129558-1312012 1
BOLT, M8X55119802-1363013 8
STUD, M8X20129418-1832014 4
BEND, EXHAUST129558-1330015 1
STIFFENER,EXH. BEND129558-1331016 1
SILENCER129558-1353017 1
GASKET, NOZZLE129107-1355018 1
BOLT, M8X55119802-1363019 2
STAY, SILENCER129659-13660110 1
GASKET, TURBINE OUT129508-18090111 1
STUD, M8X22119131-18320112 3
BOLT M 8X 2226014-080222113 2
BOLT M 8X 2526014-080252114 2
BOLT M 8X 16 PLATED26106-080162115 2
BOLT M 8X 30 PLATED26106-080302116 2
NUT, M826306-080002117 3
