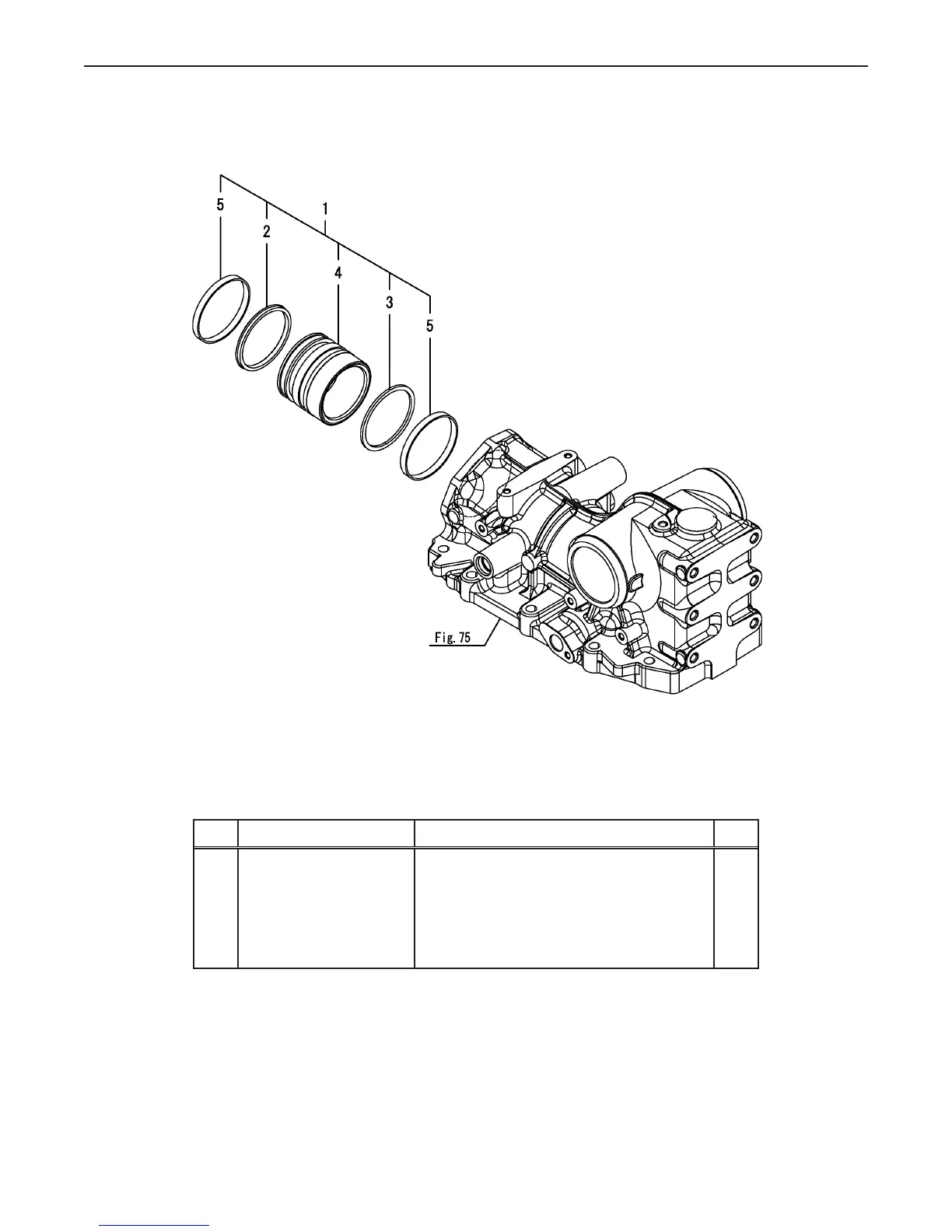

Fig 77. Piston
Ref.
Part Number Description Qty
1 CY-1A7180-43280 PISTON ASSY, HYD. 1
2 CY-198448-43260 PACKING 85 1
3 CY-198448-43270 RING 85,BACKUP 1
4 CY-1A7180 -43290 PISTON,HYD. 1
5 CY-198390-43360 RING 85,WEAR 2
Copyright 2011 Cub Cadet Yanmar LLC
145
Fig.77. PISTON
0CNP5-G37900
0CNP5-G37900
77. PISTON
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PISTON ASSY, HYD.1A7180-4328011 111
PACKING 85198448-4326022 111
RING 85,BACKUP198448-4327023 111
PISTON,HYD.1A7180-4329024 111
RING 85,WEAR198390-4336025 222
