Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A8250-46890 JOYSTICK UNIT, 1
2 CY-1A8250-46900 JOYSTICK ASSY, 1
3 CY-1A8250-46920 WIRE, JOYSTICK 2
4 CY-1A8250-48100 CONNECTOR, 2
5 CY-1C6281-52320 PIN 8,COME-OFF SNAP 2
6 CY-22487-080200 PIN, H8X20 2
7 CY-26106-080852 BOLT M 8X 85 PLATED 2
8 CY-26716-060002 NUT 6 2
9 CY-26776-160002 LOCK NUT M16 PLATED 2
Copyright 2011 Cub Cadet Yanmar LLC
157

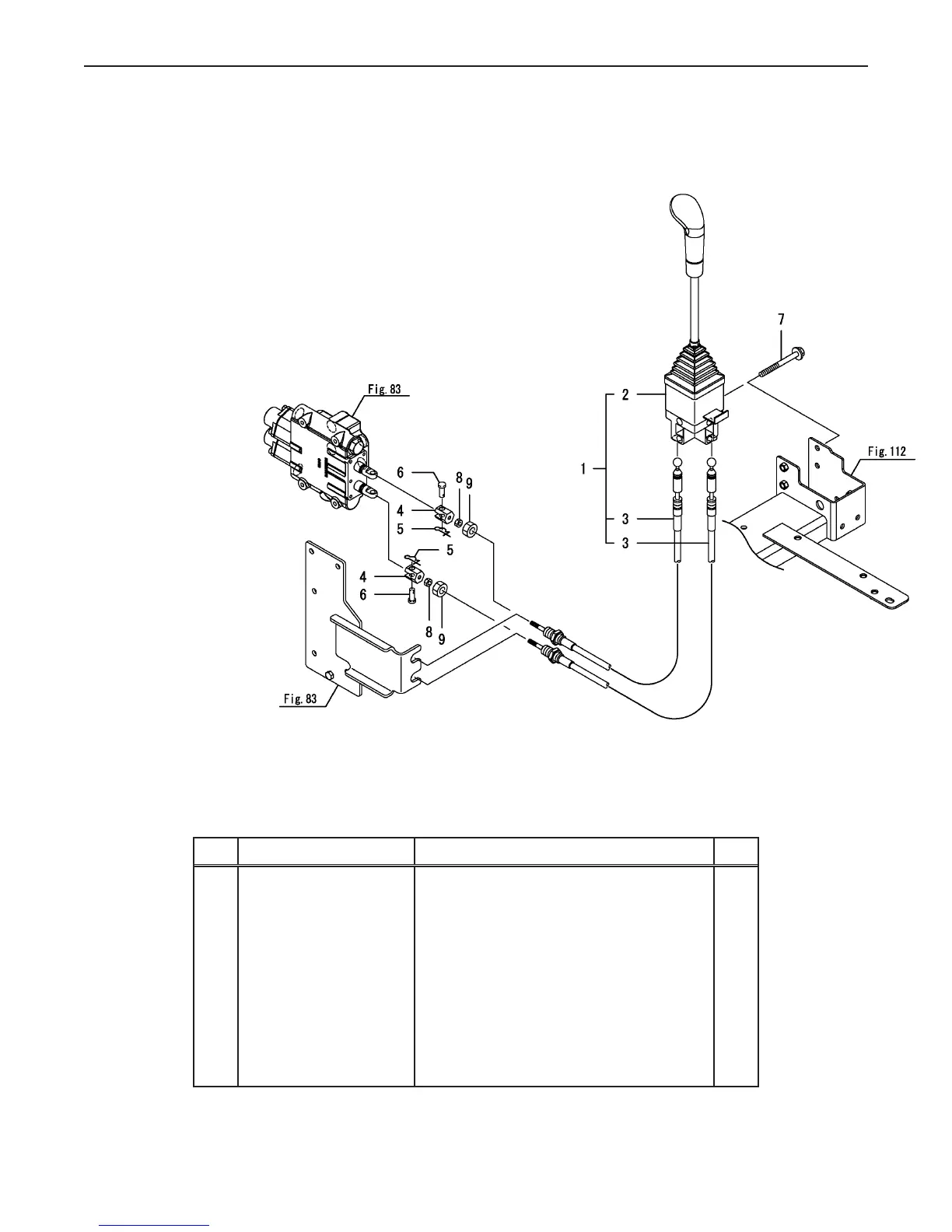

Fig 85. Lever, Scv
Fig.85. LEVER(SCV
0CNP5-G37900
0CNP5-G37900
85. LEVER(SCV
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
JOYSTICK UNIT,1A8250-4689011 111
JOYSTICK ASSY,1A8250-4690022 111
WIRE, JOYSTICK1A8250-4692023 222
CONNECTOR,1A8250-4810014 222
PIN 8,COME-OFF SNAP1C6281-5232015 222
PIN, H8X2022487-08020016 222
BOLT M 8X 85 PLATED26106-08085217 222
NUT 626716-06000218 222
LOCK NUT M16 PLATED26776-16000219 222
