Cub Cadet Yanmar Lx490

Lx490Lx Series

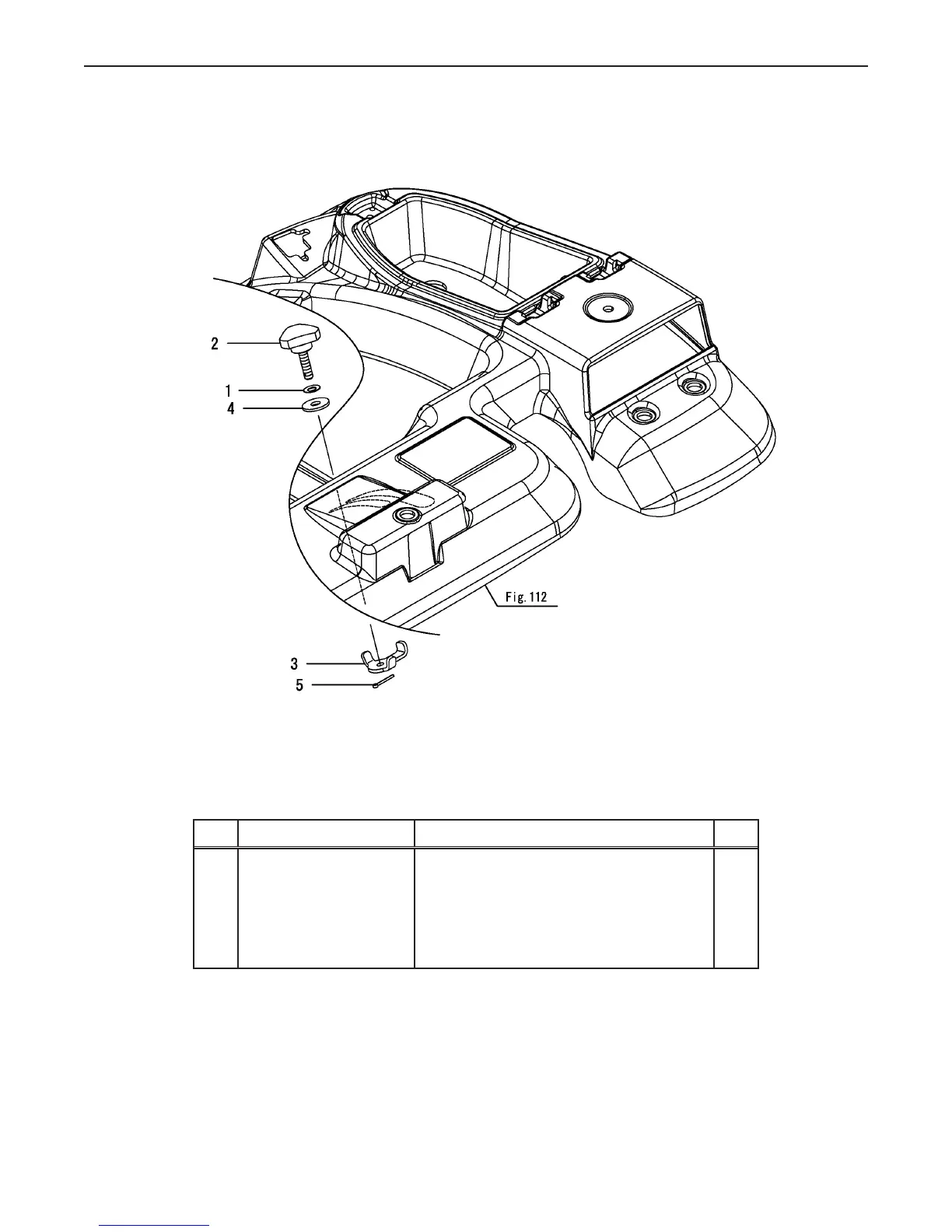

Fig 86. Hydraulic Operation 1
Ref.
Part Number Description Qty
1 CY-194300-37570 SPRING, CONICAL 1
2 CY-198165-47750 KNOB, HYD.CONTROL 1
3 CY-1A7510-47760 STOPPER, HYD.CONTROL 1
4 CY-22157-080000 WASHER 8 1
5 CY-22417-200160 COTTER PIN 2.0X16 1
Copyright 2011 Cub Cadet Yanmar LLC
159
Fig.86. HYDRAULIC OPERATION(1
0CNP5-G37900
0CNP5-G37900
86. HYDRAULIC OPERATION(1
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SPRING, CONICAL194300-3757011 111
KNOB, HYD.CONTROL198165-4775012 111
STOPPER, HYD.CONTROL1A7510-4776013 111
WASHER 822157-08000014 111
COTTER PIN 2.0X1622417-20016015 111
(C)Copy Rights YANMAR CO.,LTD.
