Cub Cadet Yanmar Lx490

Lx490Lx Series
Copyright 2011 Cub Cadet Yanmar LLC
169

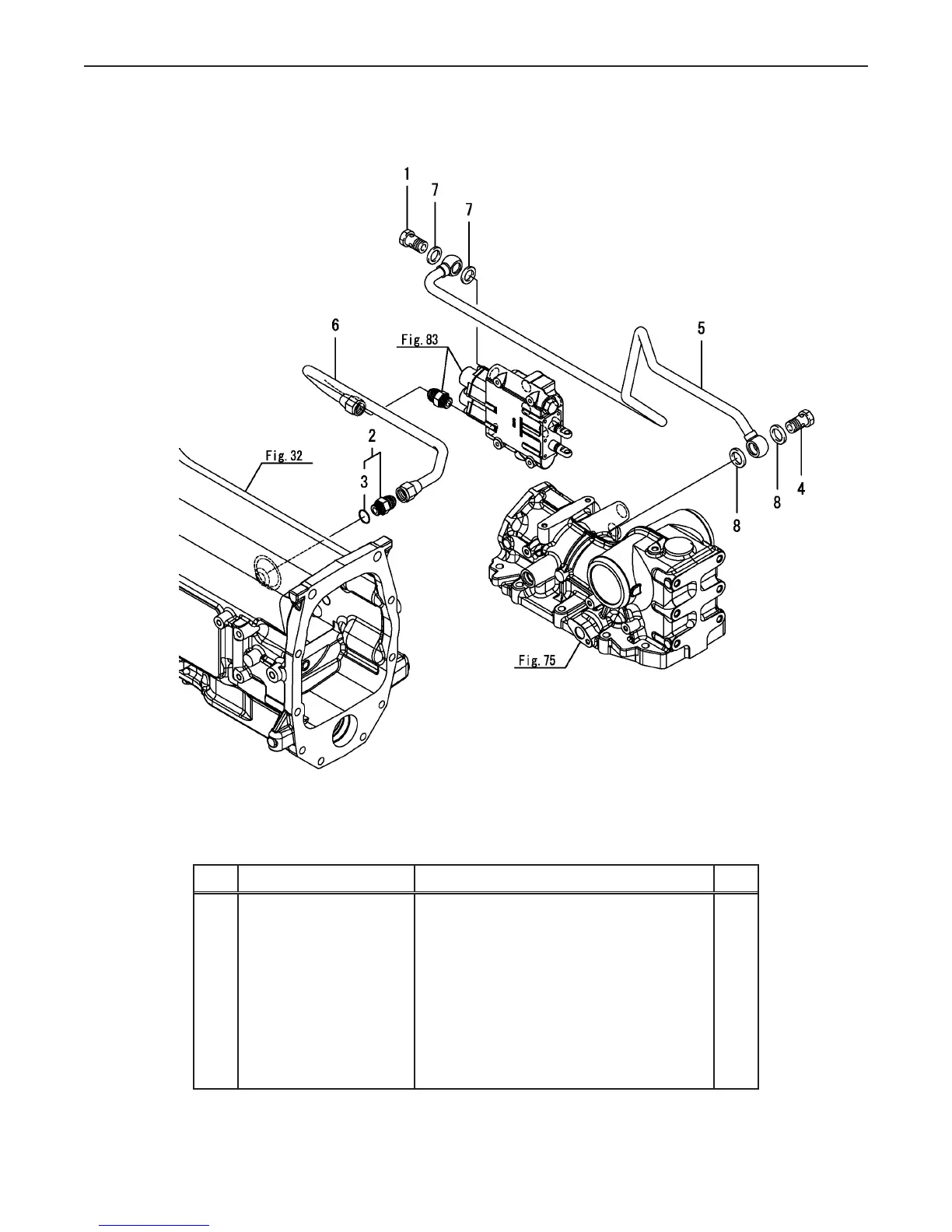

Fig 93. Hydraulic Line - Loader PBK Rear Remote
Ref.
Part Number Description Qty
1 CY-198245-46680 BOLT 3/4-16 1
2 CY-1A8250-48350 FITTING/HYD, 3/4-7/8 1
3 CY-194464-45930 O-RING 8-1 1
4 CY-1A7610-48360 JOINT,G1/2 1
5 CY-1A8250-48600 HP PIPE, SCV-P 1
6 CY-1A8250-48700 HP PIPE, SCV-T 1
7 CY-23414-190000 PACKING -19 2
8 CY-23414-210027 PACKING-21 2
Fig.93. HYDRAULIC LINE(LOADER(PBK/REAR REMOTE
0CNP5-G37900
0CNP5-G37900
93. HYDRAULIC LINE(LOADER(PBK/REAR REMOTE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
BOLT 3/4-16198245-4668011 111
FITTING/HYD, 3/4-7/81A8250-4835012 111
O-RING 8-1194464-4593023 111
JOINT,G1/21A7610-4836014 111
HP PIPE, SCV-P1A8250-4860015 111
HP PIPE, SCV-T1A8250-4870016 111
PACKING -1923414-19000017 222
PACKING-2123414-21002718 222
(C)Copy Rights YANMAR CO.,LTD.
