Cub Cadet Yanmar Lx490

Lx490Lx Series
180
Copyright 2011 Cub Cadet Yanmar LLC

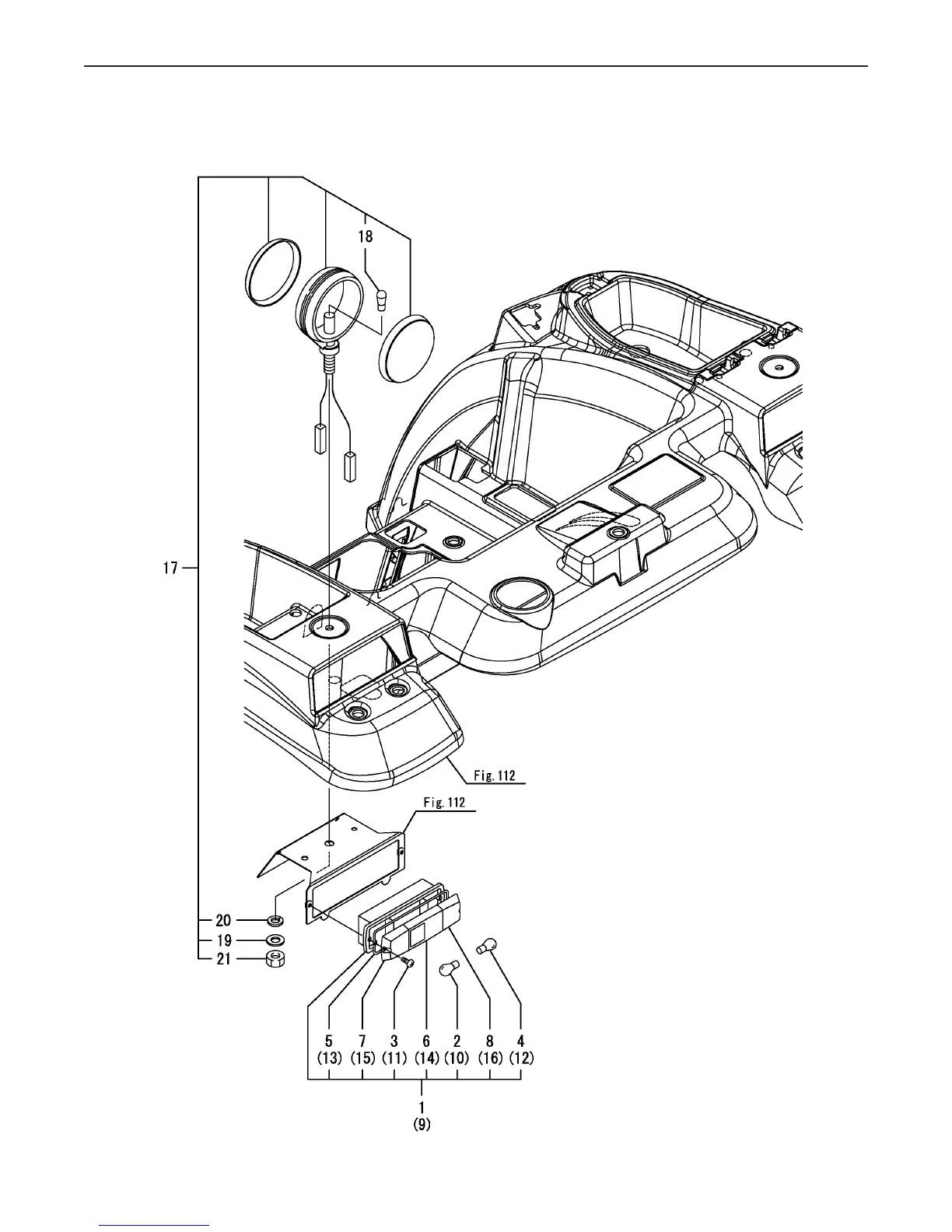

Fig 103. Lamp
Fig.103. LAMP
0CNP5-G37900
0CNP5-G37900
103. LAMP
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
LAMP, REAR COMBI. L1A7400-5311011 111
VALVE, 12V 21W1A7890-5342022 111
SCREW, 5X16198268-5345023 222
VALVE,12V21/5W1A7400-5353024 111
GASKET1A7400-5356025 111
LENS,L1A7400-5357026 111
LENS,L1A7400-5359027 111
LENS,L1A7400-5361028 111
LAMP, REAR COMBI. R1A7400-5312019 111
VALVE, 12V 21W1A7890-53420210 111
SCREW, 5X16198268-53450211 222
VALVE,12V21/5W1A7400-53530212 111
GASKET1A7400-53560213 111
LENS,R1A7400-53580214 111
LENS,R1A7400-53600215 111
LENS,R1A7400-53620216 111
LAMP ASSY,FLASHER1A8275-53400117 222
BULB1A7880-53430218 222
WASHER, 1322137-130000219 222
WASHER, SPRING 1322217-130000220 222
NUT,1/2-20 UNF1A7880-53100221 222
