Cub Cadet Yanmar Lx490

Lx490Lx Series
182
Copyright 2011 Cub Cadet Yanmar LLC

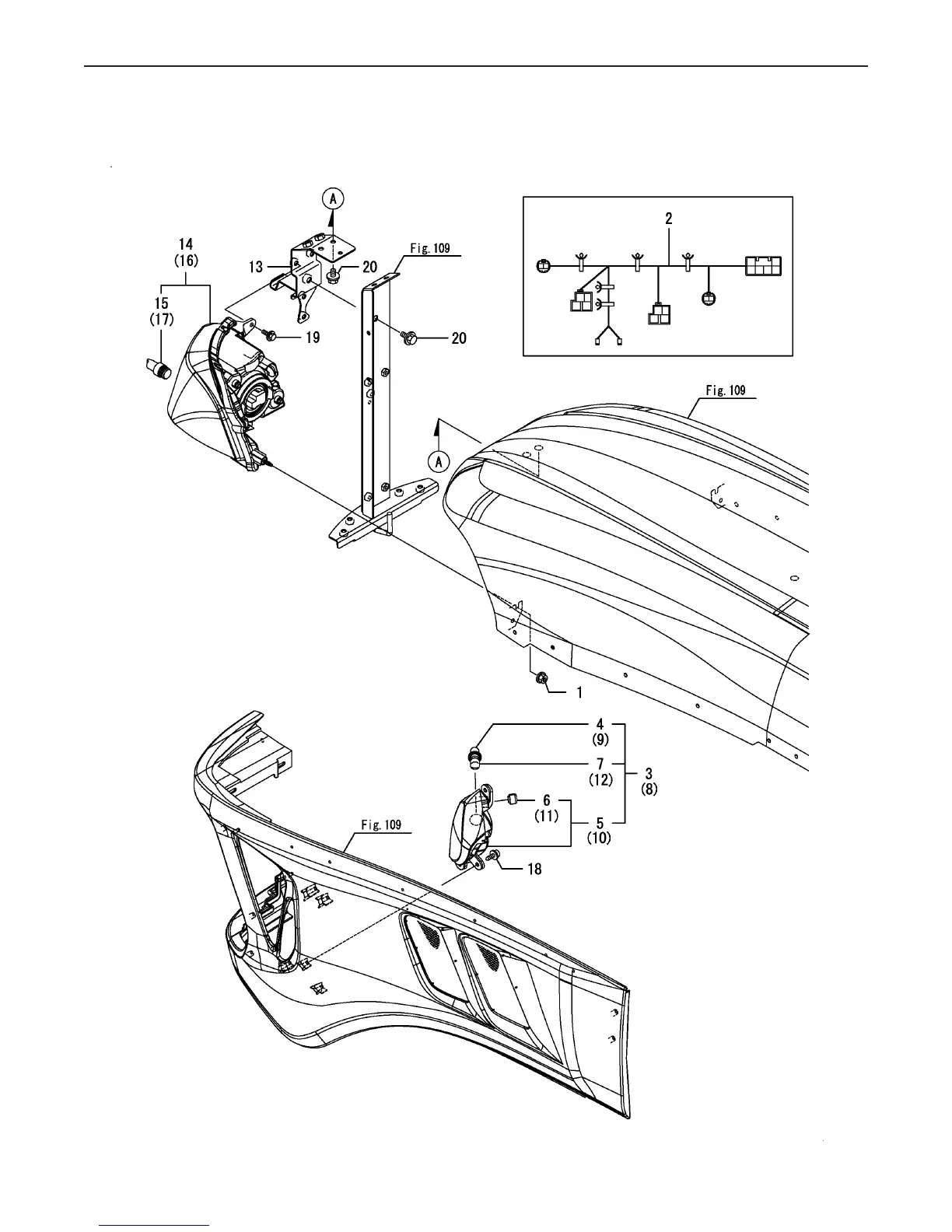

Fig 104. Front Lamp
Fig.104. FRONT LAMP
0CNP5-G37900
0CNP5-G37900
104. FRONT LAMP
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 6194990-2213011 222
HARNES, HEAD1A7180-5131012 111
LAMP ASSY, SIDE L1A8070-5301013 111
SOCKET ASSY,1C6860-0816024 111
CASE ASSY,SIDELAMP L1A8070-5303025 111
CAP1A7260-5322036 111
BULB,12V/18W198072-5345027 111
LAMP ASSY, SIDE R1A8070-5302018 111
SOCKET ASSY,1C6860-0816029 111
CASE ASSY,SIDELAMP R1A8070-53040210 111
CAP1A7260-53220311 111
BULB,12V/18W198072-53450212 111
STAY ASSY, HEADLAMP1A8265-53050113 111
LAMP, HEAD L CMP1A8280-53200114 111
BULV,55W/60W1A8280-53220215 111
LAMP, HEAD R CMP1A8280-53300116 111
BULV,55W/60W1A8280-53220217 111
SCREW 5X16194940-61790118 666
BOLT M 6X 20 PLATED26106-060202119 444
BOLT M 8X 12 PLATED26106-080122120 333
(C)Copy Rights YANMAR CO.,LTD.
