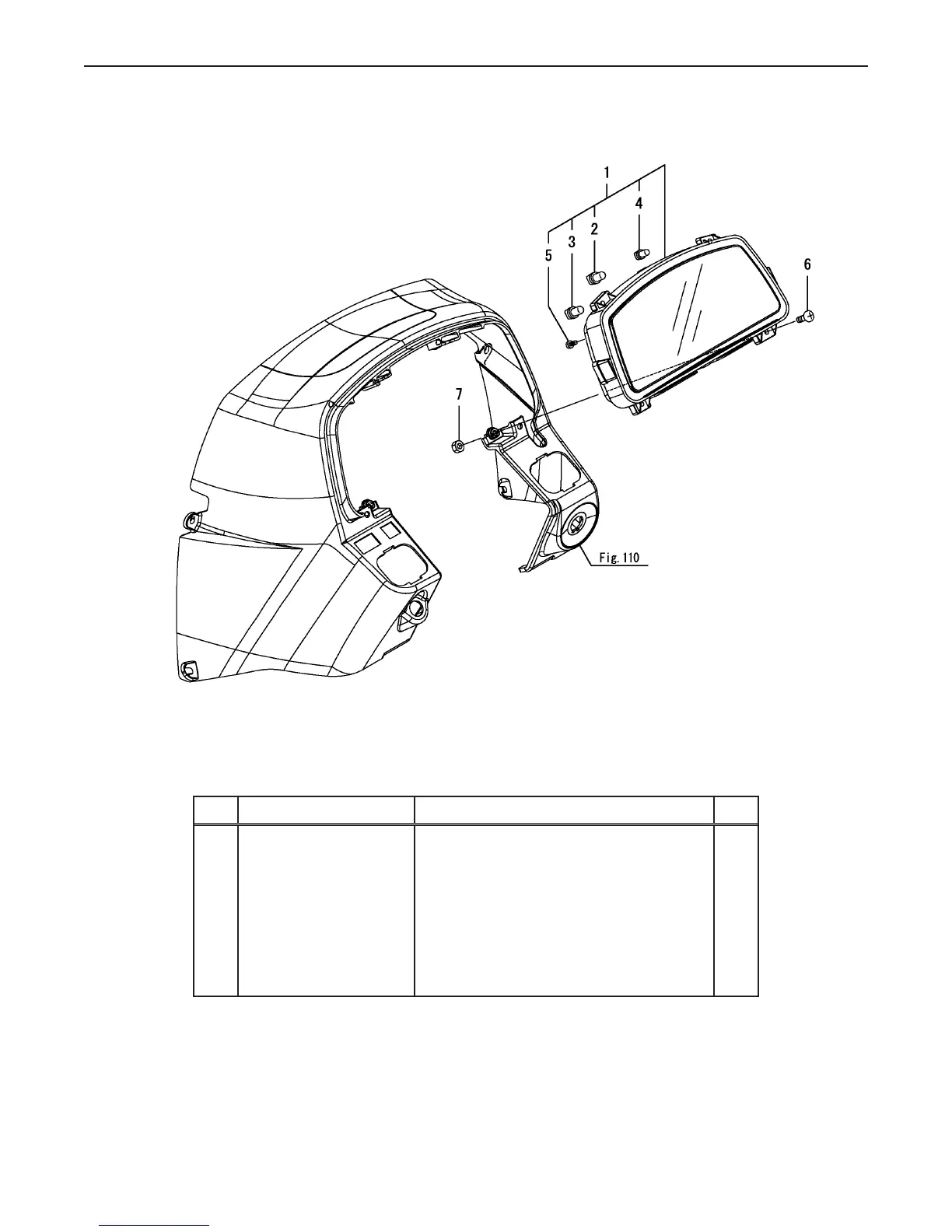

Fig 105. Meter
Ref.
Part Number Description Qty
1 CY-1A8275-56010 METER ASSY, 1
2 CY-1C6920-36260 LAMP ASSY.,SOCKET 1
3 CY-198200-56050 BULB, 14V-1.7W 6
4 CY-198448-56150 LAMP 14V/1.4W,SOCKET 5
5 CY-198200-56080 SCREW, 3X 16 6
6 CY-26557-050202 SCREW M 5X 20 4
7 CY-26716-050002 NUT, M5 4
Fig.105. METER
0CNP5-G37900
0CNP5-G37900
105. METER
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
METER ASSY,1A8275-5601011 111
LAMP ASSY.,SOCKET1C6920-3626022 111
BULB, 14V-1.7W198200-5605023 666
LAMP 14V/1.4W,SOCKET198448-5615024 555
SCREW, 3X 16198200-5608025 666
SCREW M 5X 2026557-05020216 444
NUT, M526716-05000217 444
