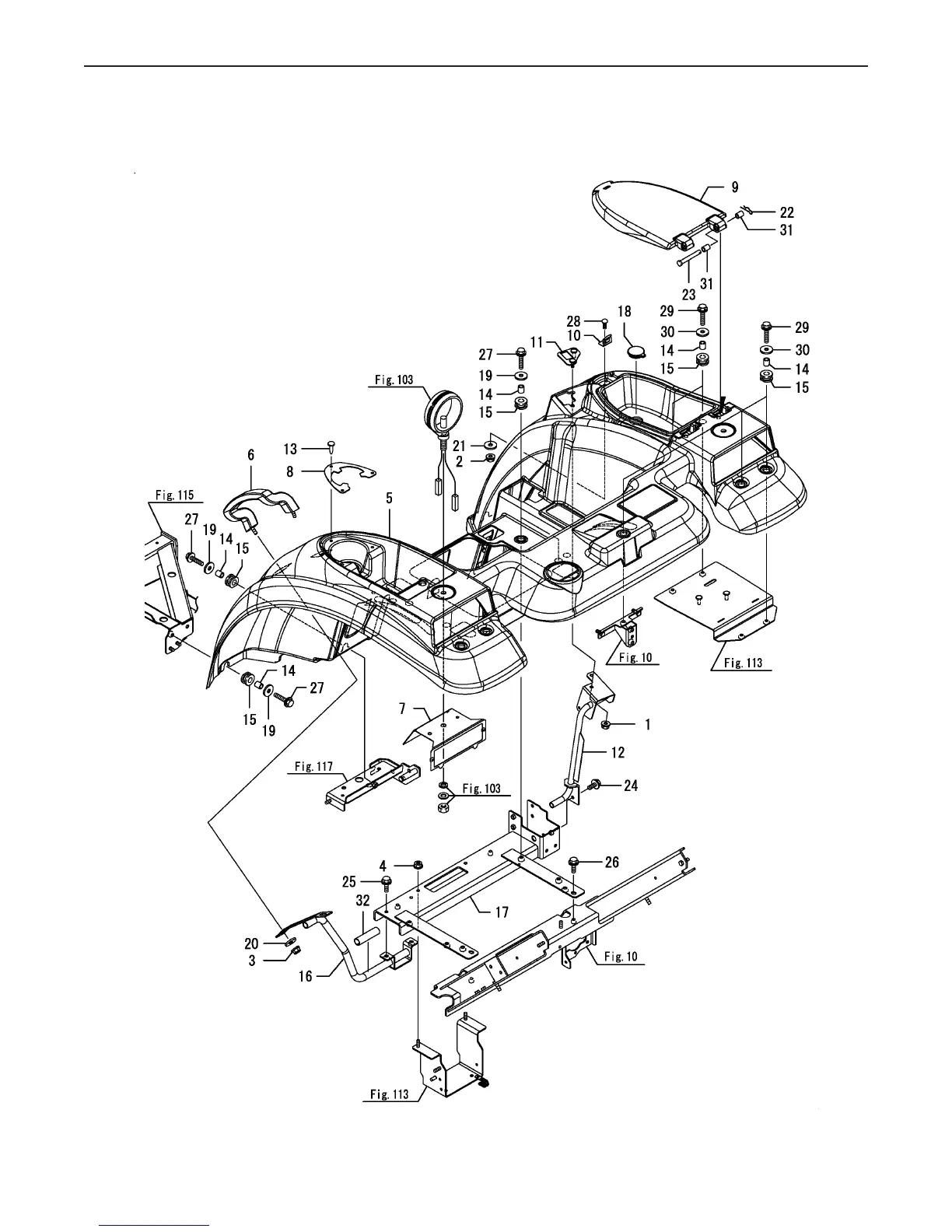

Fig 112. Fender
Fig.112. FENDER
0CNP5-G37900
0CNP5-G37900
112. FENDER
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 8194990-2214011 222
NUT W/WASHER 8194990-2214012 111
NUT W/WASHER 8194990-2214013 222
NUT W/WASHER 8194990-2214014 222
FENDER M ASSY,1A8250-6209015 111
BAR, ASSIST1A7510-6210016 111
BRACKET ASSY, LAMP1A8250-6221017 222
COVER,CUP HOLDER1A8250-6239018 111
CAP, TOOLBOX1A8250-6241019 111
LOCK, TOOLBOX1A8250-62460110 111
PLATE ASSY, PTO SW1A8250-62471111 111
STAY ASSY, PTO SW1A8250-62490112 111
CAP, HOLE194697-62560113 333
COLLAR, CUSHION198220-62920114 171717
GROMMET1A8250-63470115 171717
STAY ASSY, GRIP1A8250-63700116 111
BRACKET ASSY, FENDER1A8250-63920117 111
GROMMET 38198094-85710118 111
WASHER 822157-080000119 888
WASHER 822157-080000120 222
WASHER 822157-080000121 111
SNAP PIN (JASO 8)22372-080000122 222
PIN 8X 6022487-080600123 222
BOLT M 8X 20 PLATED26106-080202124 111
BOLT M 8X 20 PLATED26106-080202125 222
BOLT M 8X 20 PLATED26106-080202126 222
BOLT M 8X 35 PLATED26106-080352127 888
BOLT 8X20,SQ.ROOT26487-080203128 111
BOLT M8X35,COLLAR HD194697-28270129 999
WASHER 8,BC,PLAIN198255-83550130 999
TUBE, 7X12X151A8250-62380131 444
GUARD TUBE,1A8250-63750132 111
