Cub Cadet Yanmar Lx490

Lx490Lx Series
198
Copyright 2011 Cub Cadet Yanmar LLC

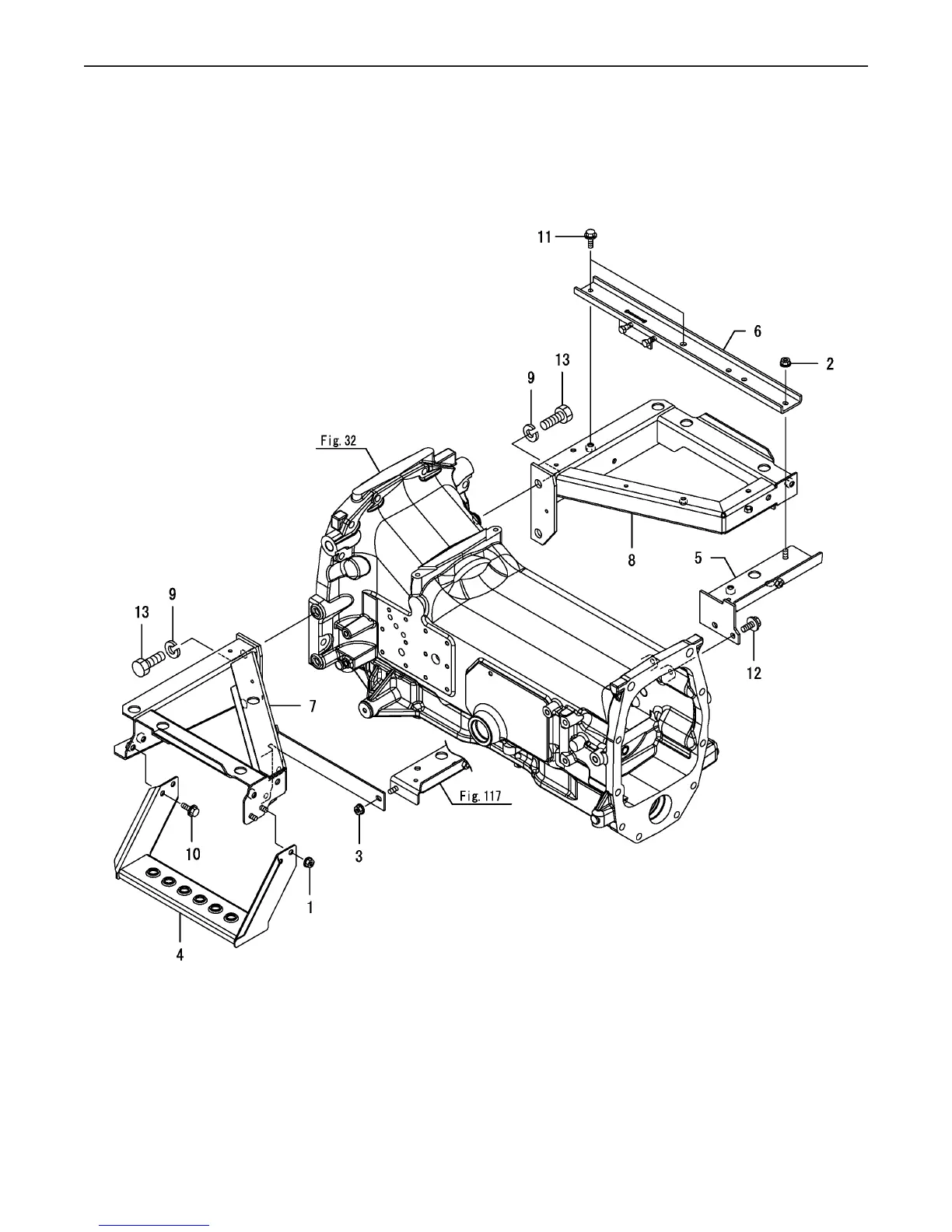

Fig 115. Step Stay 1
Fig.115. STEP STAY(1
0CNP5-G37900
0CNP5-G37900
115. STEP STAY(1
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 8194990-2214011 222
NUT W/WASHER 8194990-2214012 111
NUT W/WASHER 8194990-2214013 111
SUB-STEP ASSY,1A8240-6256114 111
SUPPORT ASSY, REAR R1A8240-6266015 111
SUPPORT ASSY, SCV1A8240-6271016 111
SUPPORT,FRONT L ASSY1A8240-6285017 111
SUPPORT,FRONT R ASSY1A8240-6286018 111
SPRING WASHER 1622217-16000019 444
BOLT M 8X 16 PLATED26106-080162110 222
BOLT M 8X 16 PLATED26106-080162111 222
BOLT M10X 20 PLATED26106-100202112 222
BOLT M16X 40 PLATED26116-160402113 444
