Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-194190 -61761 RUBBER, CUSHION 1
2 CY-1A8250-62570 PLATE, FLOOR C 1
3 CY-1A8250-62580 PLATE ASSY, FLOOR L 1
4 CY-1A8250-62590 PLATE ASSY, FLOOR R 1
5 CY-1A8250-62620 COVER, FLOOR 1
6 CY-26106-080122 BOLT M 8X 12 PLATED 4
7 CY-26106-080162 BOLT M 8X 16 PLATED 2
Copyright 2011 Cub Cadet Yanmar LLC
197

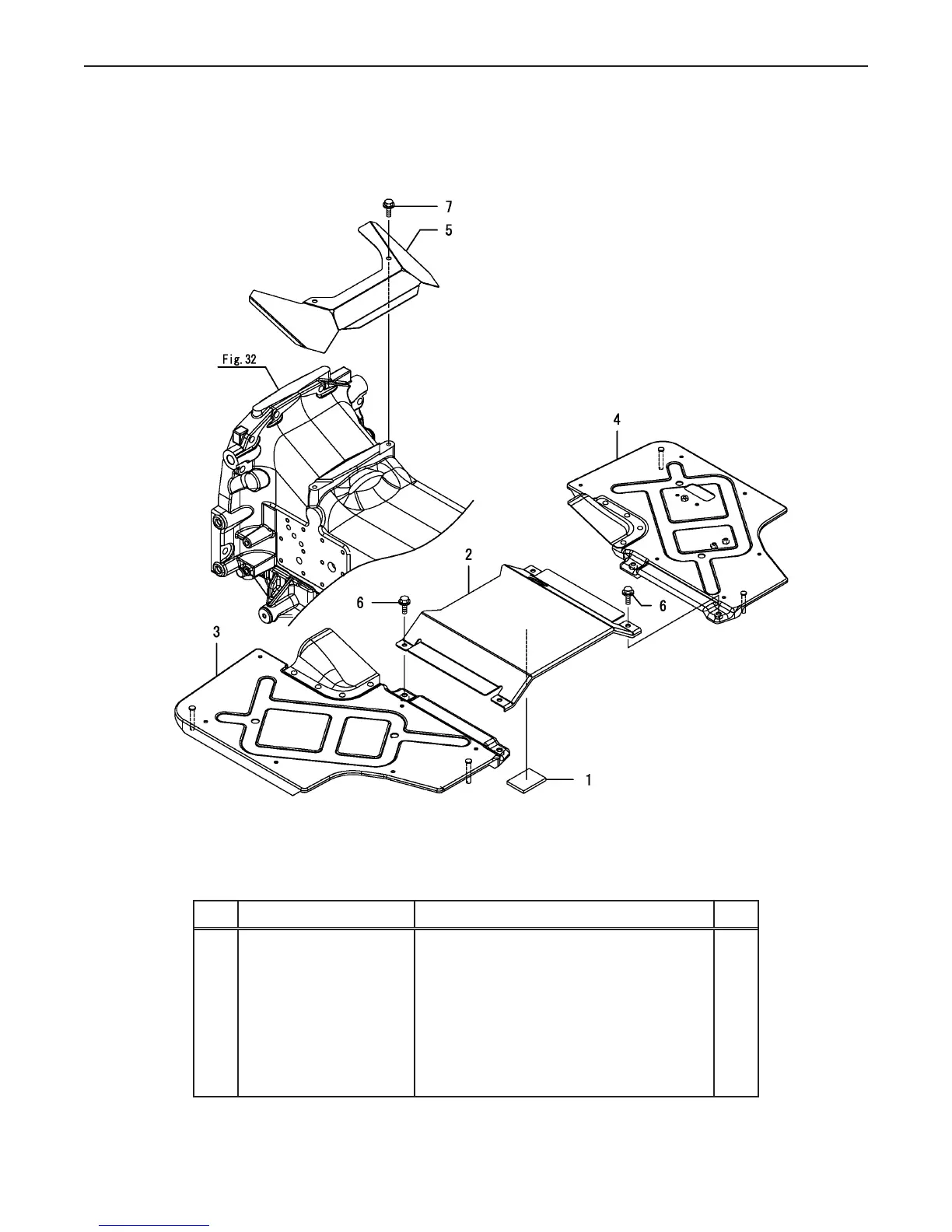

Fig 114. Floor
Fig.114. FLOOR
0CNP5-G37900
0CNP5-G37900
114. FLOOR
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
RUBBER, CUSHION194190-6176111 111
PLATE, FLOOR C1A8250-6257012 111
PLATE ASSY, FLOOR L1A8250-6258013 111
PLATE ASSY, FLOOR R1A8250-6259014 111
COVER, FLOOR1A8250-6262015 111
BOLT M 8X 12 PLATED26106-08012216 444
BOLT M 8X 16 PLATED26106-08016217 222
(C)Copy Rights YANMAR CO.,LTD.
