Cub Cadet Yanmar Lx490

Lx490Lx Series
Notes
26
Copyright 2011 Cub Cadet Yanmar LLC

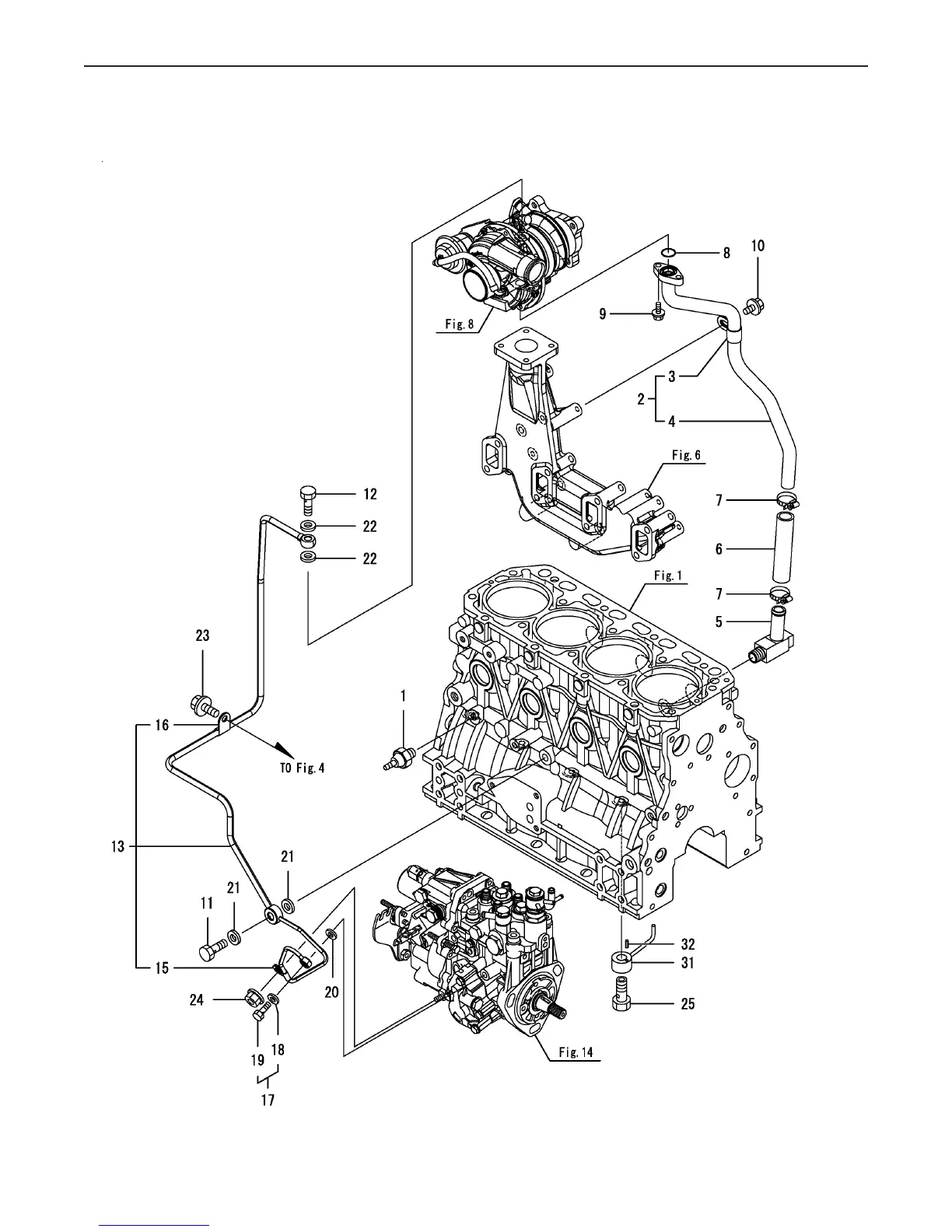

Fig 12. Lub. Oil Line
Fig.12. LUB. OIL LINE
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
12. LUB. OIL LINE
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SWITCH, OIL PRESSURE114250-3945011 1
PIPE ASSY, LO RETURN129558-3961012 1
LO-T,T/C RETURN129558-3964023 1
RETAINER123910-3985024 1
ELBOW,3/8 LO RETURN129558-3965115 1
JOINT, PIPE123957-3967116 1
CLAMP 2523000-02500017 2
O-RING 4D P-16.024316-00016018 1
BOLT M 6X 12 PLATED26106-06012219 2
BOLT M 8X 12 PLATED26106-080122110 1
BOLT, JOINT M10124160-39140111 1
BOLT, PIPE JOINT121252-39150112 1
PIPE ASSY, LUB. OIL129558-39480113 1
RETAINER, PIPE119802-39500215 1
RETAINER124223-39900216 1
BOLT ASSY, JOINT129005-59830117 1
SEAL WASHER 8S22190-080002218 1
JOINT BOLT 323857-030000219 1
SEAL WASHER 8S22190-080002120 1
WASHER, 1022190-100002121 2
GASKET 10, ROUND23414-100000122 2
BOLT M 8X 12 PLATED26106-080122123 1
NUT M 626366-060002124 1
VALVE ASS
Y
, CHECK129792-39410125 4
NOZZLE, COOLING129553-39650131 4
SPRING PIN 3X1022351-030010132 4
(C)Copy Rights YANMAR CO.,LTD.
