Cub Cadet Yanmar Lx490

Lx490Lx Series
48
Copyright 2011 Cub Cadet Yanmar LLC

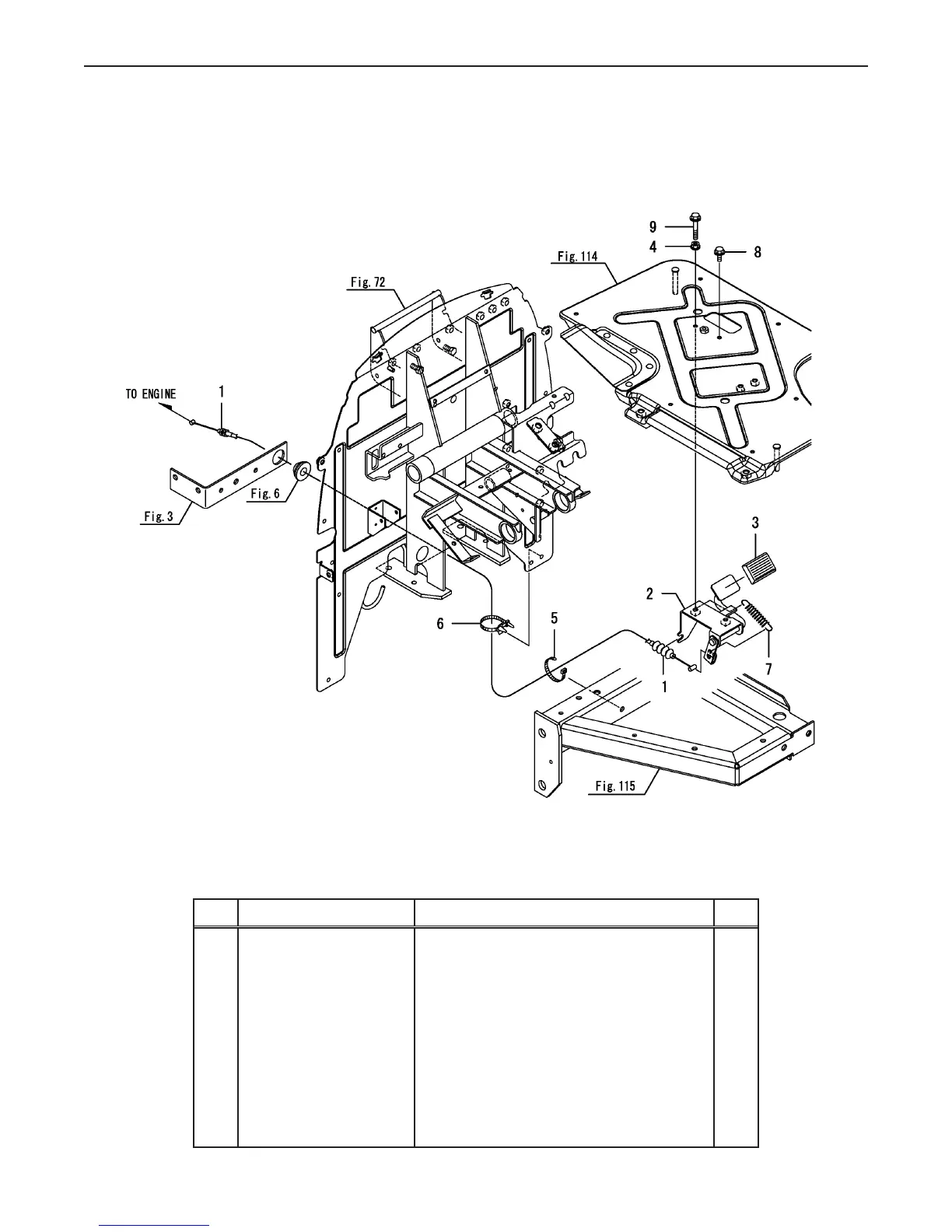

Fig 7. Foot Accel
Ref.
Part Number Description Qty
1 CY-198200- 01210 CABLE, CONTROLE 1
2 CY-1A8240 -01300 CONTROL UNIT, FOOT 1
3 CY-165001-22950 RUBBER 1
4 CY-194990-22130 NUT W/WASHER 6 1
5 CY-1A8300-51210 BAND, REPEAT 1
6 CY-194680-51670 BAND 1
7 CY-198360 -55630 SPRING,RETURN 1
8 CY-26106-060122 BOLT M 6X 12 PLATED 1
9 CY-26116-060404 BOLT M 6X 40 PLATED 1
Fig.7. FOOT ACCEL
0CNP5-G37900
0CNP5-G37900
7. FOOT ACCEL
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
CABLE, CONTROLE198200-0121011 111
CONTROL UNIT, FOOT1A8240-0130012 111
RUBBER1W3981-1405013 111
NUT W/WASHER 6194990-2213014 111
BAND, REPEAT1A8300-5121015 111
BAND194680-5167016 111
SPRING,RETURN198360-5563017 111
BOLT M 6X 12 PLATED26106-06012218 111
BOLT M 6X 40 PLATED26116-06040419 111
(C)Copy Rights YANMAR CO.,LTD.
