Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A8170-14500 R3 TIRE KIT,FRONT 2
2 CY-1A8170-14350 VALVE, FRONT TIRE 2
3 CY-1A8170-14510 R3 TIRE 27X10.5-15 2
4 CY-1A8170-14530 R3 WHEEL F 2
Copyright 2011 Cub Cadet Yanmar LLC
69

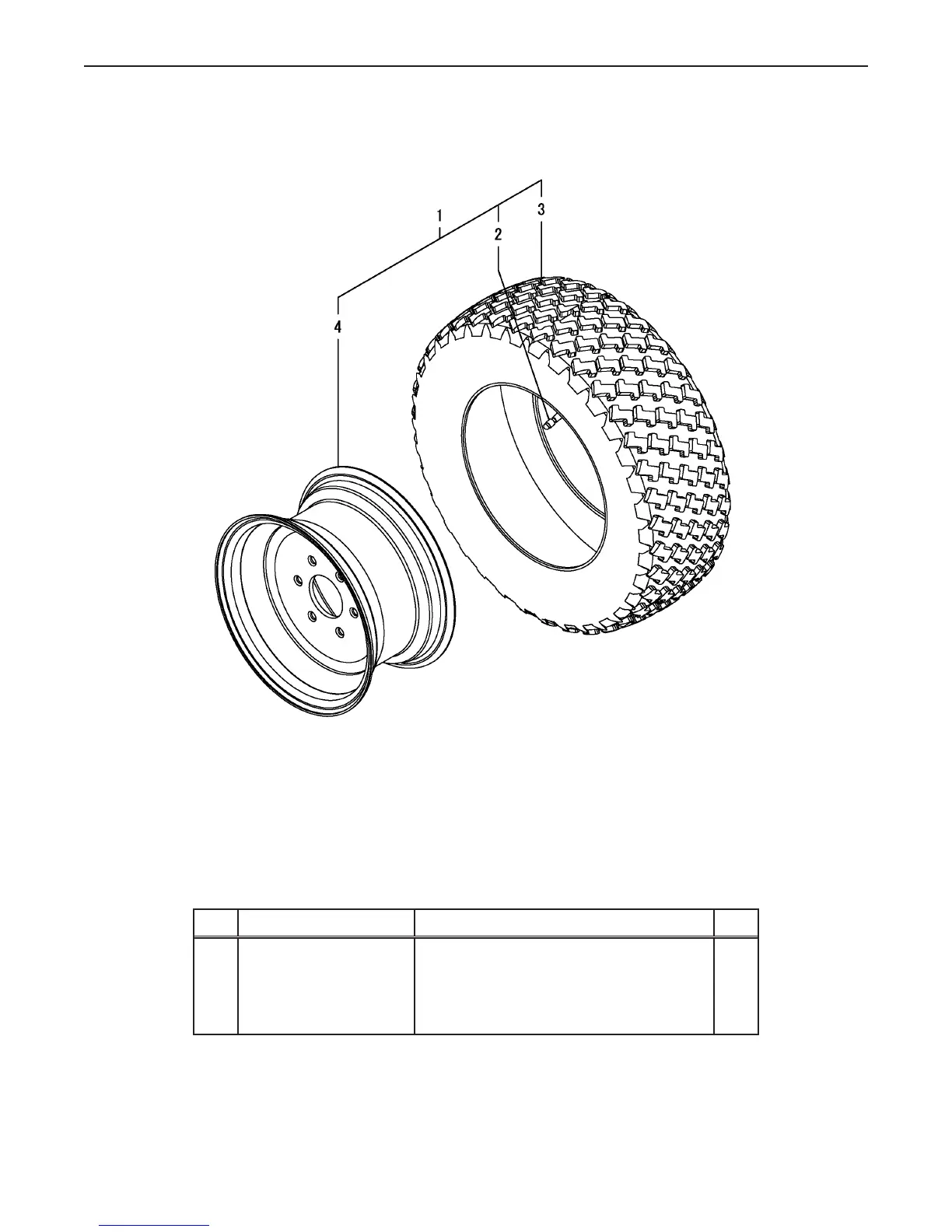

Fig 23. Front Wheel Tire R3
Fig.23. FRONT WHEEL TIRE R3
0CNP5-G37900
0CNP5-G37900
23. FRONT WHEEL TIRE R3
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
R3 TIRE KIT,FRONT1A8170-1450011 222
VALVE, FRONT TIRE1A8170-1435022 222
R3 TIRE 27X10.5-151A8170-1451023 222
R3 WHEEL F1A8170-1453024 222
(C)Copy Rights YANMAR CO.,LTD.
