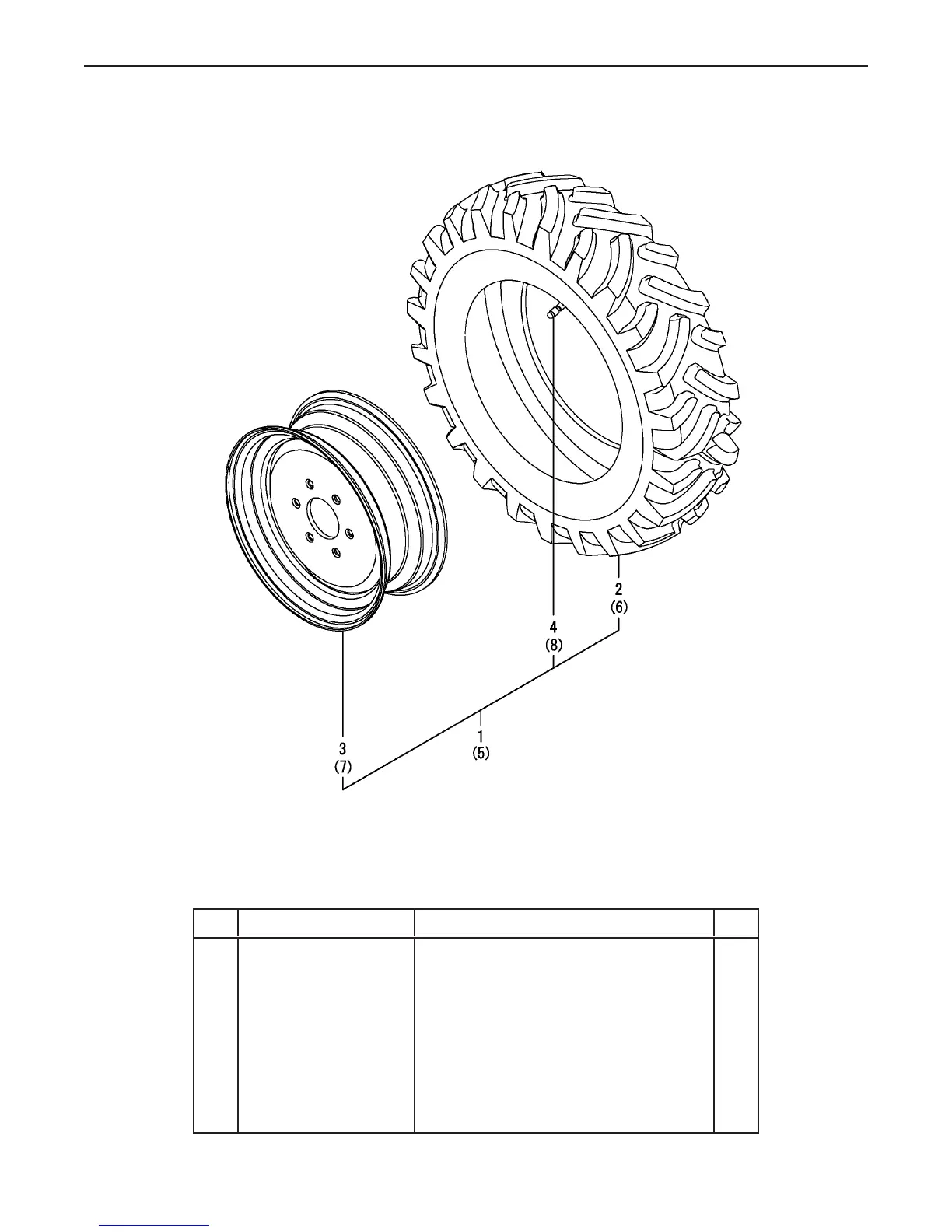

Fig 22. Front Wheel Tire R1
Ref.
Part Number Description Qty
1 CY-1A8170-14300 R1 TIRE KIT,FRONT L 1
2 CY-1A8170-14310 R1 TIRE 8-16 1
3 CY-1A8170-14330 R1 WHEEL F 1
4 CY-1A8170-14350 VALVE, FRONT TIRE 1
5 CY-1A8170-14400 R1 TIRE KIT,FRONT R 1
6 CY-1A8170-14310 R1 TIRE 8-16 1
7 CY-1A8170-14330 R1 WHEEL F 1
8 CY-1A8170-14350 VALVE, FRONT TIRE 1
Fig.22. FRONT WHEEL TIRE R1
0CNP5-G37900
0CNP5-G37900
22. FRONT WHEEL TIRE R1
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
R1 TIRE KIT,FRONT L1A8170-1430011 111
R1 TIRE 8-161A8170-1431022 111
R1 WHEEL F1A8170-1433023 111
VALVE, FRONT TIRE1A8170-1435024 111
R1 TIRE KIT,FRONT R1A8170-1440015 111
R1 TIRE 8-161A8170-1431026 111
R1 WHEEL F1A8170-1433027 111
VALVE, FRONT TIRE1A8170-1435028 111
