Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A7180137901 CASE, FRONT BEARING 2
2 CY-1A7180-13840 GEAR, FAINAL 49 2
3 CY-1A7180141101 SPINDLE, FRONT 2
4 CY-198200-14210 RING, HALF TIMBER 4
5 CY-198475-32660 SEAL QLNY527514.5 2
6 CY-24101-062084 BALL BEARING 2
7 CY-24101-062094 BALL BEARING 2
8 CY-24321-002300 O-RING, 1A G230.0 2
9 CY-26106-100302 BOLT M10X 30 PLATED 16
Copyright 2011 Cub Cadet Yanmar LLC
67

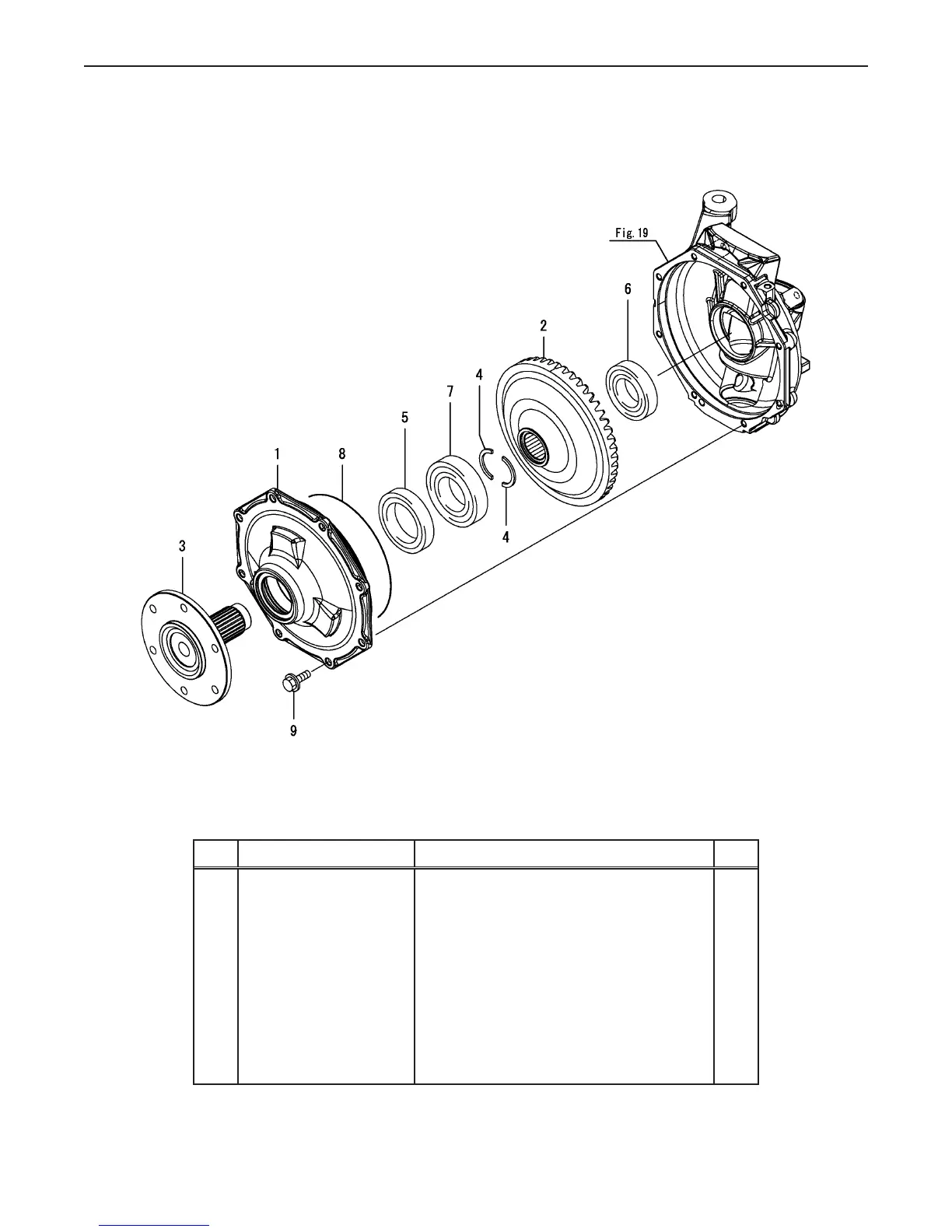

Fig 21. Front Spindle
Fig.21. FRONT SPINDLE
0CNP5-G37900
0CNP5-G37900
21. FRONT SPINDLE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
CASE, FRONT BEARING1A7180-13790-111 222
GEAR, FAINAL 491A7180-1384012 222
SPINDLE, FRONT1A7180-14110-113 222
RING, HALF TIMBER198200-1421014 444
SEAL QLNY527514.5198475-3266015 222
BALL BEARING24101-06208416 222
BALL BEARING24101-06209417 222
O-RING, 1A G230.024321-00230018 222
BOLT M10X 30 PLATED26106-10030219 161616
(C)Copy Rights YANMAR CO.,LTD.
