Cub Cadet Yanmar Lx490 - Page 89

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-198071-24340 COLLAR 13X17X14 2
2 CY-198212-24360 PLATE, CENTER 1
3 CY-26106-120502 BOLT M12X50 3
Copyright 2011 Cub Cadet Yanmar LLC
89

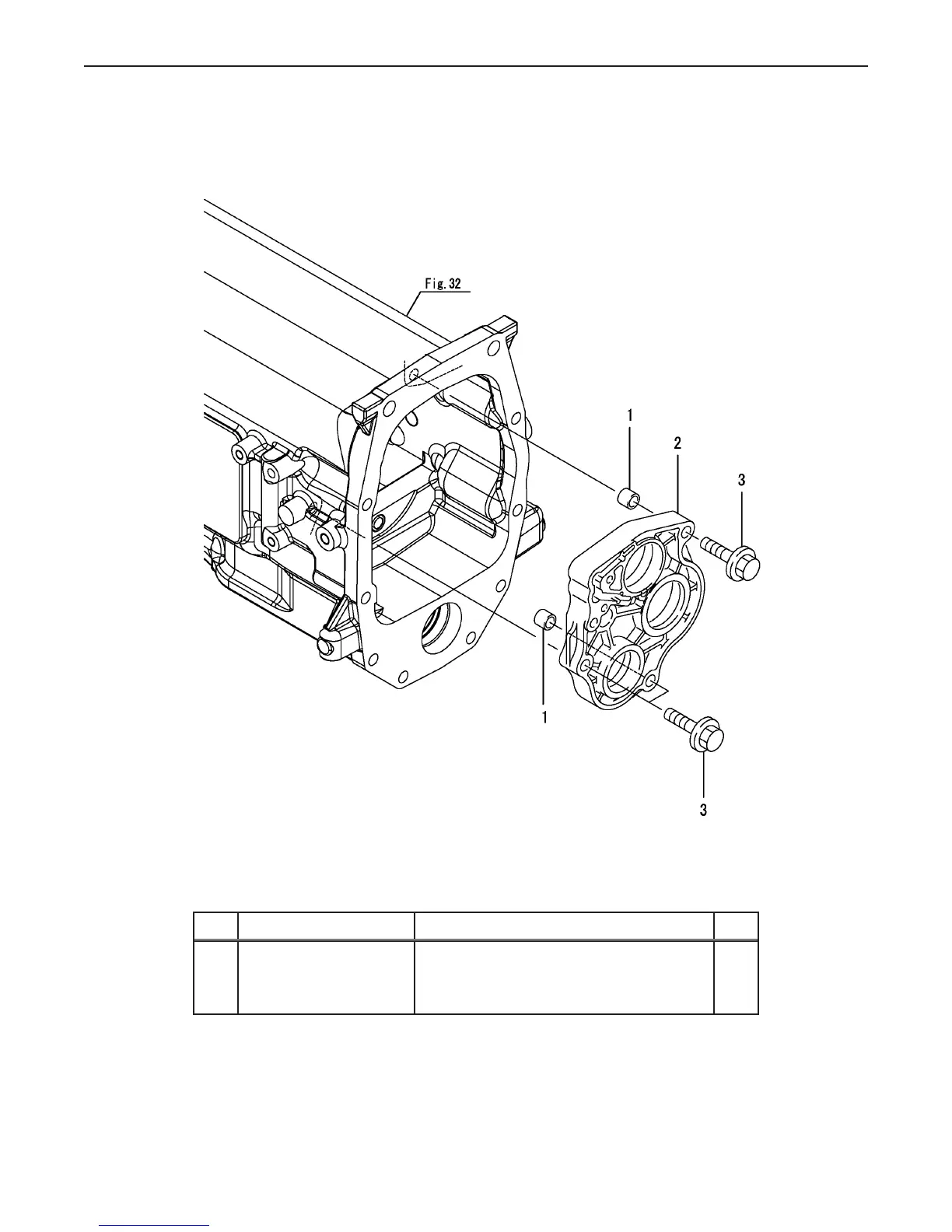

Fig 37. Center Plate
Fig.37. CENTER PLATE
0CNP5-G37900
0CNP5-G37900
37. CENTER PLATE
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
COLLAR 13X17X14198071-2434011 222
PLATE, CENTER198212-2436012 111
BOLT M12X5026106-12050213 333
