30 Section 7— Service

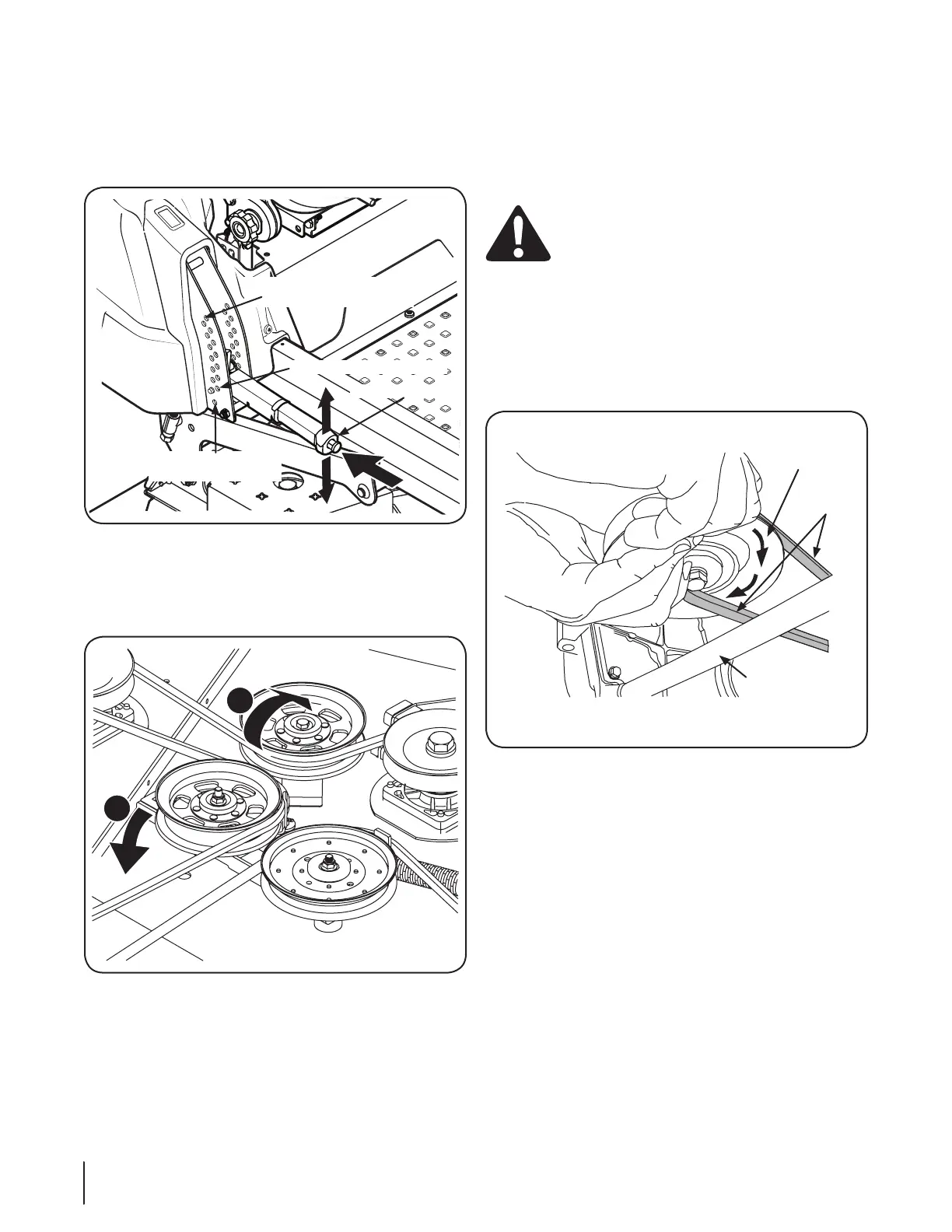

Releasing Belt Tension with the Idler Pulley
 Using the deck lift handle, raise the deck to the position
that provides the most horizontal run of the belt between


Lowest Mowing Position
Highest Mowing Position/
Transport Position
Deck Lift Handle
Deck Removal/
Installation Position
Figure 7-3
2. Working from the middle of the tractor, pivot the idler
bracket and movable idler pulley rearward away from the

and over the idler pulley (b). See Figure 7-4.
b
a
Figure 7-4
 From beneath the rear of the tractor, slide the belt off of

Rolling the Belt off the PTO Pulley
 Using the deck lift handle, raise the deck to the position that
provides the most horizontal run of the belt between the deck

2. Sitting behind the tractor facing forward, reach beneath

WARNING! Use caution to avoid pinching your

 Pull the left side of the belt rearward and downward while

rides out onto the edge of the lower sheave of the pulley.
NOTE: If pulling the right side of the belt, turn the pulley left.
4. While still holding the belt downward, continue turning

Figure 7-5.
PTO Pulley
PTO Belt
Transmission
Tube
Figure 7-5
5. Lower the deck into the lowest position using the deck lift

