Cub Cadet Z-Force S User Manual

Se rvi ce
7
WARNING! Before performing any service, place

parking brake lever, turn the ignition key to the

Battery Removal
WARNING! Battery posts, terminals and related
accessories contain lead and lead compounds. Wash
hands after handling.
The battery is located beneath the seat frame. To remove the battery:

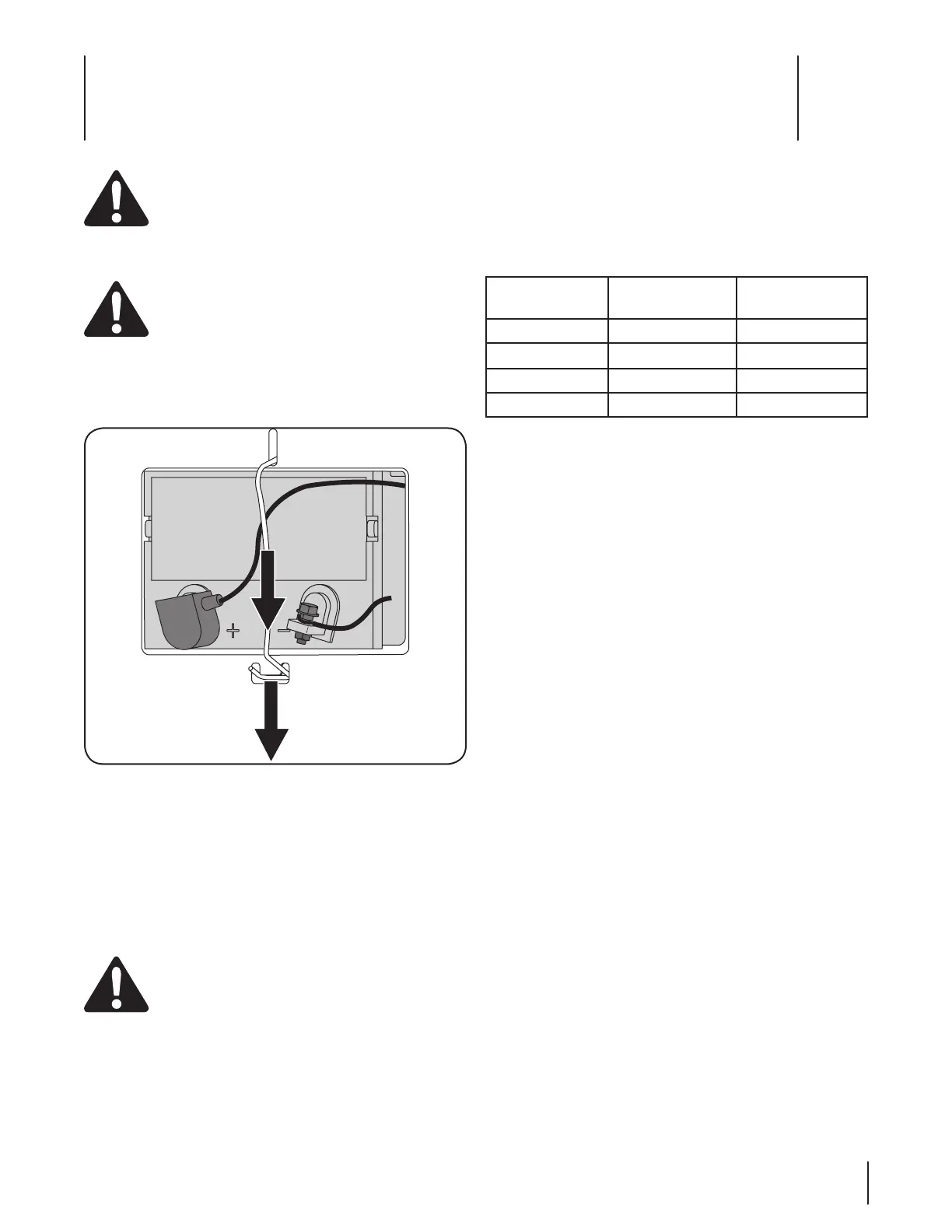

 Push down and back on the battery hold-down bracket as

Figure 7-1
2. Remove the hex cap screw and sems nut securing the black
negative battery lead to the negative battery post (marked
NEG). Move the cable away from the negative battery post.
 Remove the hex cap screw and sems nut securing the red

4. Carefully lift the battery out of the tractor.
5. Install the battery by repeating the above steps in the
reverse order.
WARNING! Always connect the positive lead to
the battery before connecting the negative lead.
This will prevent sparking or possible injury from an
electrical short caused by contacting the tractor
body with tools being used to connect the cables.
Charging the Battery
Test and, if necessary, recharge the battery after the tractor has
been stored for a period of time.
 
higher across the battery terminals. See Fig. 7-2.
Voltmeter
Reading
State of
Charge
Charging
Time
  Full Charge
 75% 90 Min.
 50% 
 25% 280 Min.
Figure 7-2
 

Servicing Electrical System

damage caused by excessive amperage. Always use the same
capacity fuse for replacement. If the electrical system does not
function, check for a blown fuse.

electrical system checked by your Cub Cadet Service Dealer.
Relays and Switches
There are several safety switches in the electrical system. If a
function of the safety interlock system described earlier is not
functioning properly, have the electrical system checked by your
Cub Cadet Service Dealer.
25

Cub Cadet Z-Force S Specifications

General

Engine Brand	Kohler
Transmission	Hydrostatic
Deck Construction	Fabricated
Blades	3
Cutting Width	48 inches
Fuel Capacity	3.5 gal
Engine Type	Gasoline
Warranty	3 years
Deck Material	Steel
