Cubby Bed - Assembly Instructions

1
9
4
10
2
Connector sits above
bolt on vertical pole

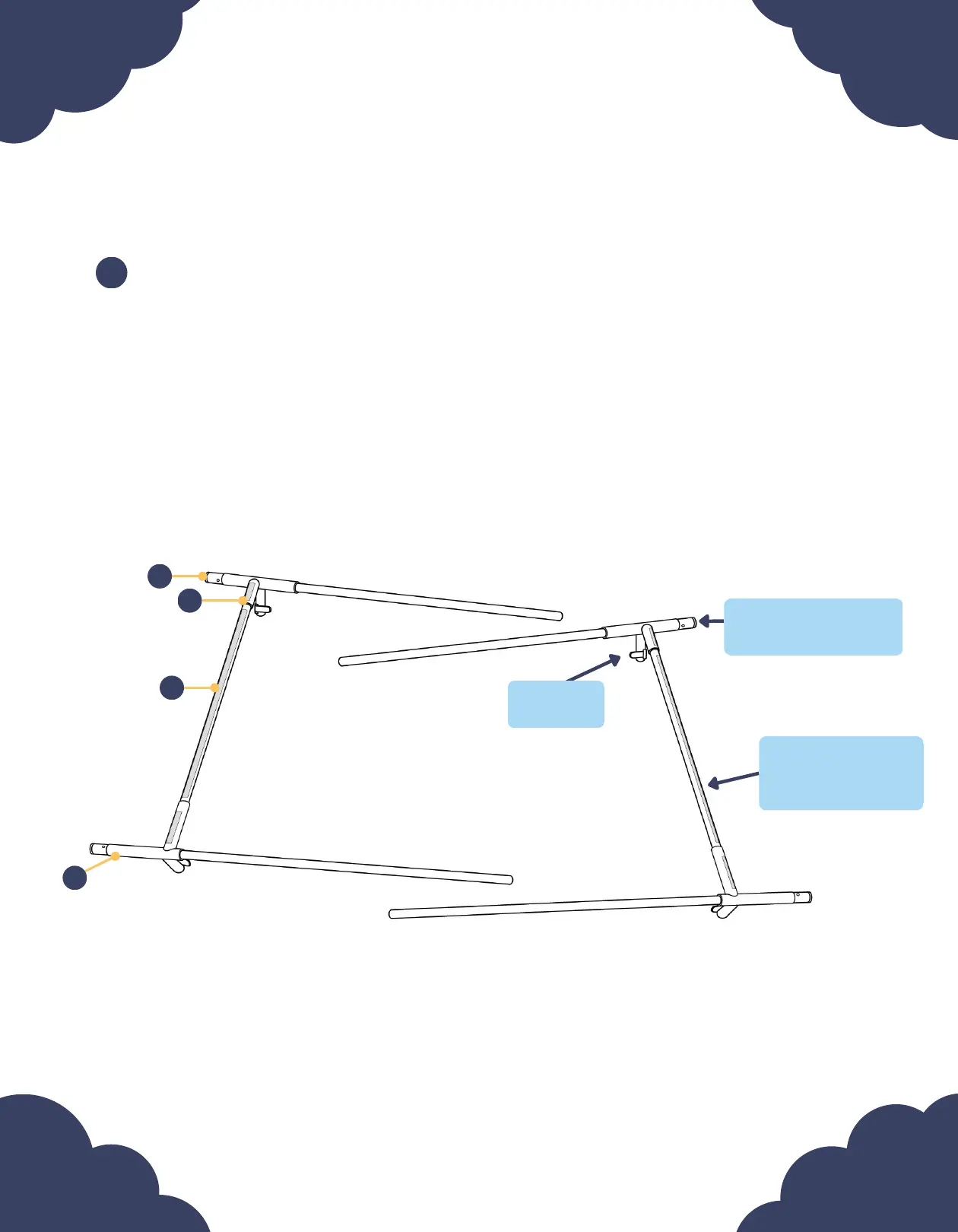

First, make the vertical sides of the bed in two sections. You will make these on
the floor and then raise them once assembled. Slide pole #2 through connector #9
so that the connector sits above the bolt. Repeat with connector #10. The connector
tabs should be on the inside of your section assembly. Insert pole #4 into #9 and
#10 connectors and orient like below. Insert four screws (#20) into the #9 and #10
connectors and tighten with hex key (#19). Repeat to make two sets.
Tab on
inside
Assemble flat and
then rotate vertically
once assembled
