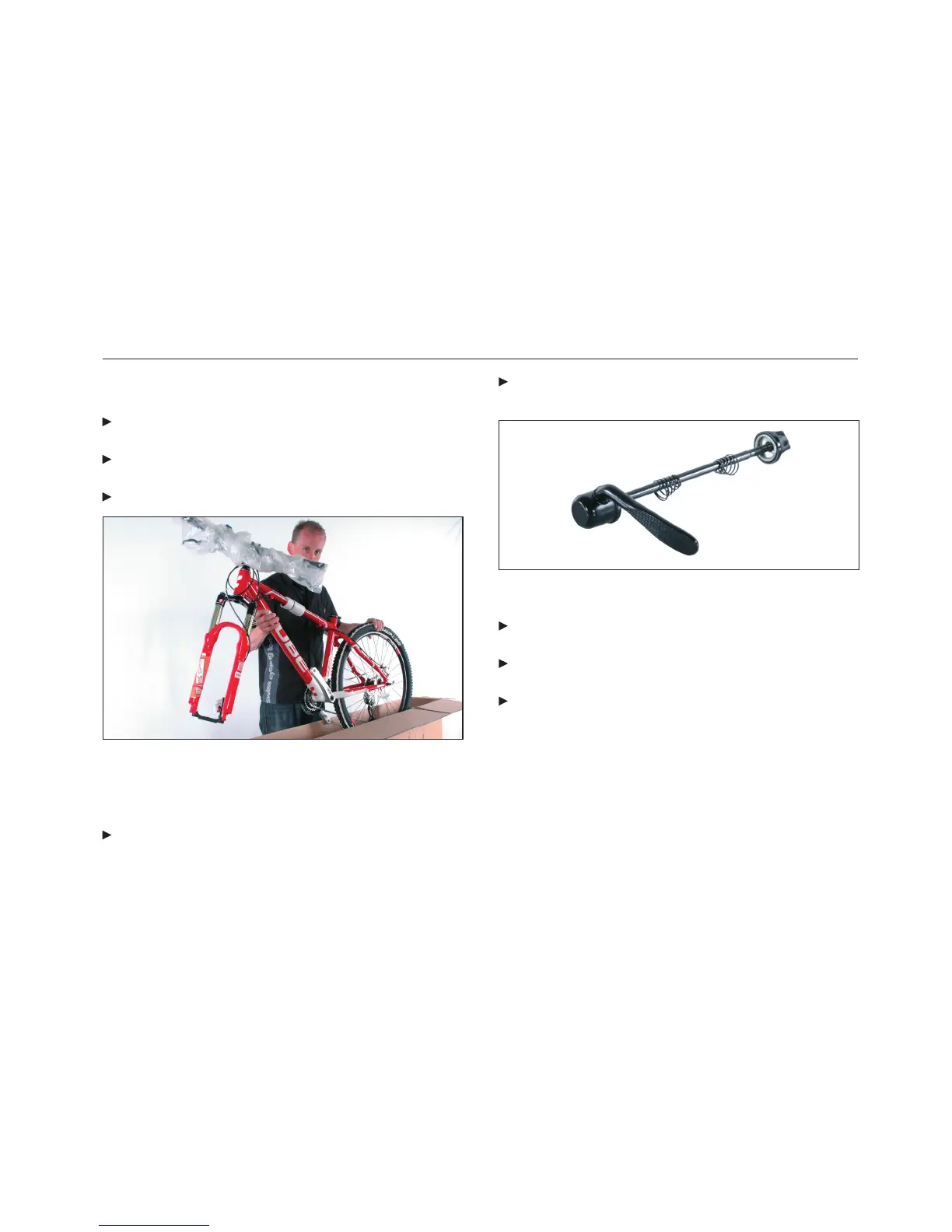

I. Unpacking the box
Open up the special shipping box and remove the
rectangular protective cardboard on the rear wheel.
Take the wheel out of the box, followed by the saddle and
then the bike frame, which has the rear wheel already tted.
Take out the package of accessories.
Fig. 1
II. Getting the front wheel ready
Remove the two plastic protective covers on the wheel Hub.
Open up the package of accessories and take out the quick
release skewer. (Fig. 2)
Fig. 2 Quick release skewer
A
B
C
D
Loosen the acorn nut (B) on the quick release skewer and
remove the springs (C)
Insert the quick release skewer with the spring (D) into the
axle of the hub (Fig. 3)
From the other side replace the second spring (D)
onto the skewer and gently tighten the acorn nut (B) (Fig. 4)
