3.3.2 Out of Service Screen - Issue
When an issue or condition occurs that renders the validator out of service, the validator informs the Traveler
of this by displaying the Out of Service screen. The black screen contains an X with the text message “Out of
service”. There is no tone associated with the Out of Service screen.
An example of the Out of Service screen is shown in Figure 3-5.

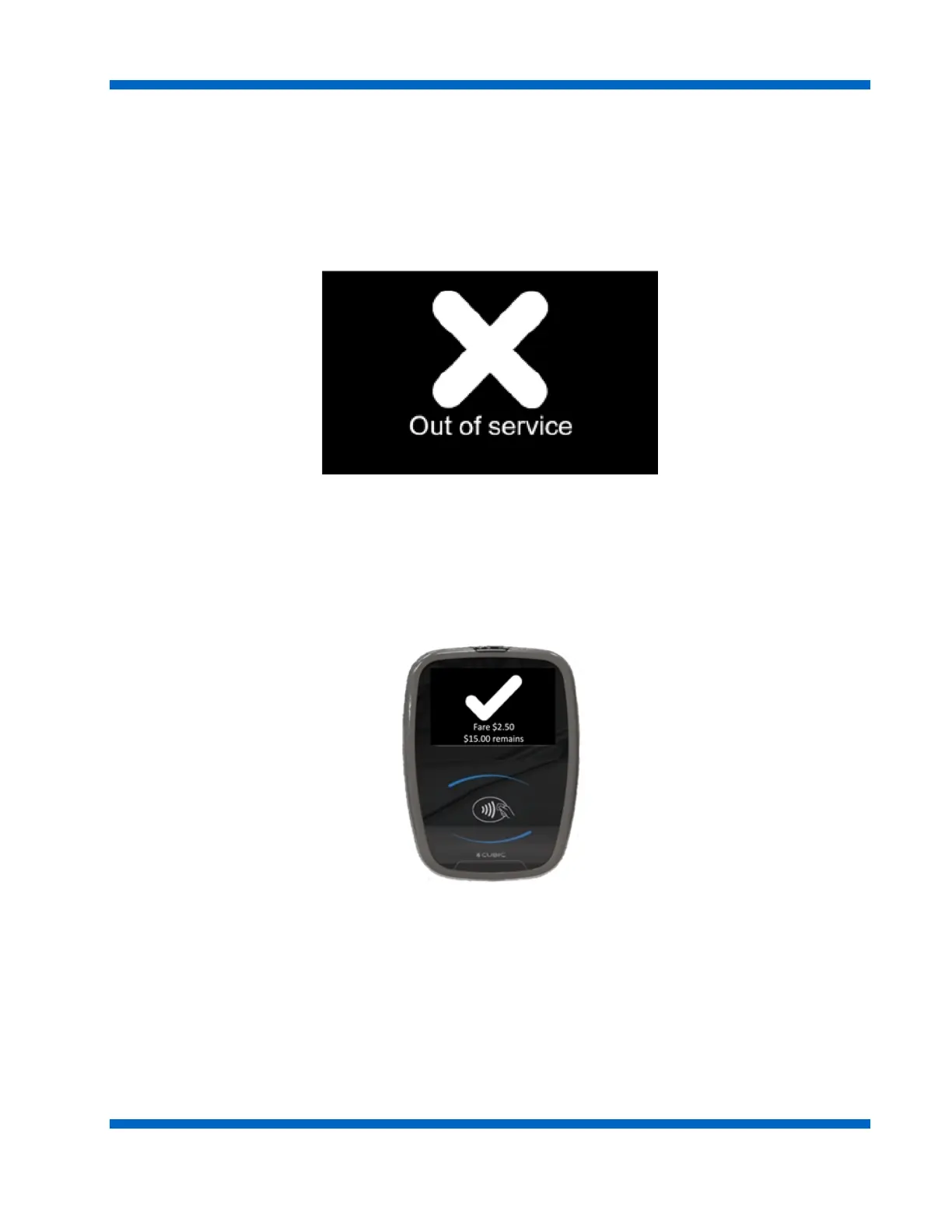

Figure 3-5. Out of Service Screen Example
3.3.3 Fare Paid Screen
If the validator is in service and the fare media presented is valid, the validator displays the Fare Paid screen
shown in Figure 3-6. The screen has a checkmark and a “good” tone sounds.
Figure 3-6. Fare Paid Screen
3.3.4 Denied Screens
There are various reasons that may cause media to be denied. There are specific screens that display along
with a “bad” tone.
