STEP 5 - INSTALLING THE GREASE CHANNEL
-----------------------------------------------------------------------------------
STEP 4 - GREASE CHANNEL
-----------------------------------------------------------------------------------

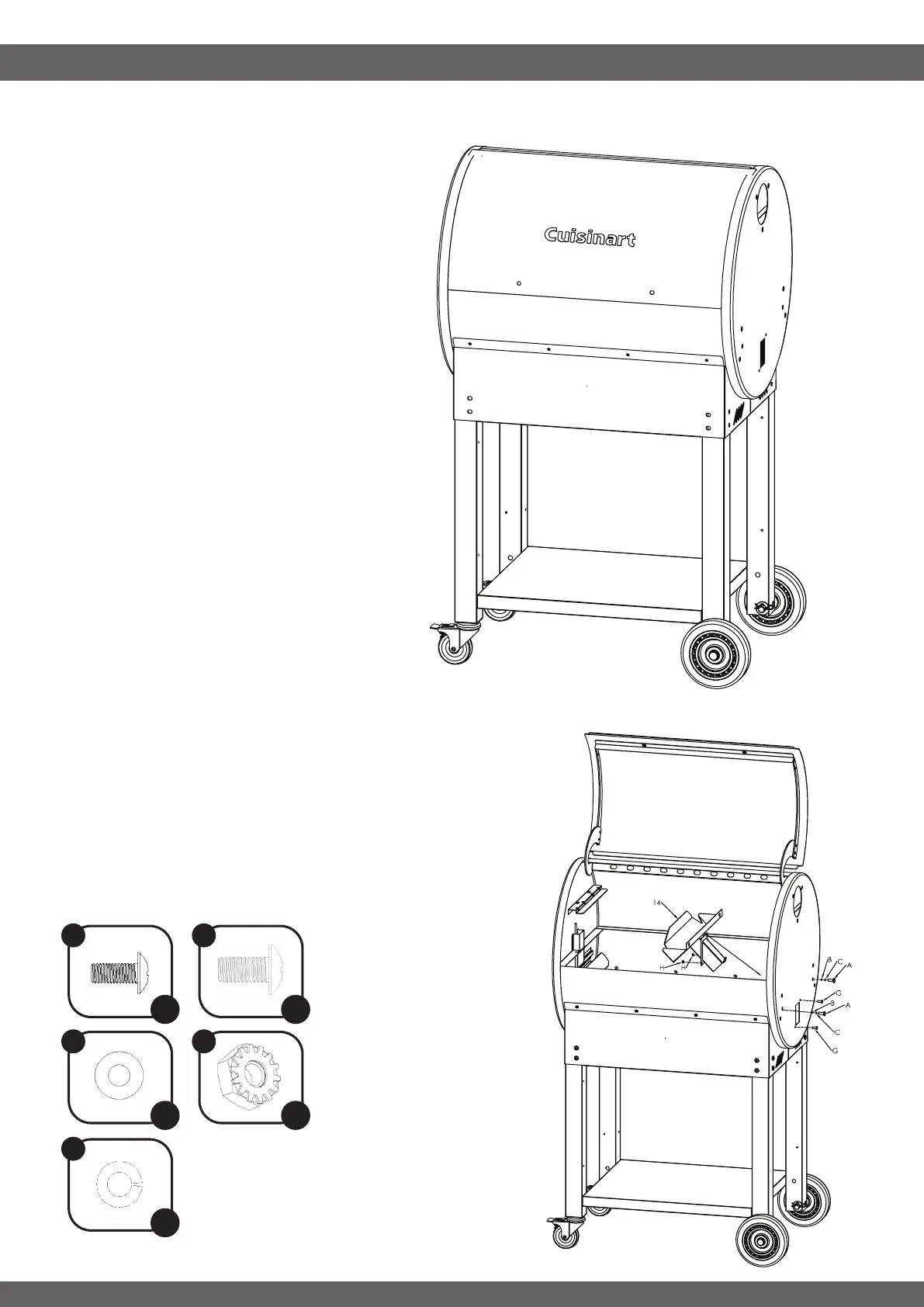

• Ensure all screws from the previous
steps are tight, then turn the grill
over to stand on the wheels.
• NOTE: It is recommended to
perform this step with two people.
• Open the lid and insert the Grease Channel (14) drain into
the rectangular hole on the side of the grill.
• Attach the grease channel to the body using two sets of
Screws (A) with Washer (B) and Lock Washer (C).
• Secure the grease drain to the body using two Screws
(G) and two Lock Nuts (H) going through the two diagonal
holes on the corners of the drain. The “star” side of the nuts
should face the screws.
ASSEMBLY INSTRUCTIONS
10
A
B
x 2
x 2
G
H
x 2
x 2
C
x 2
