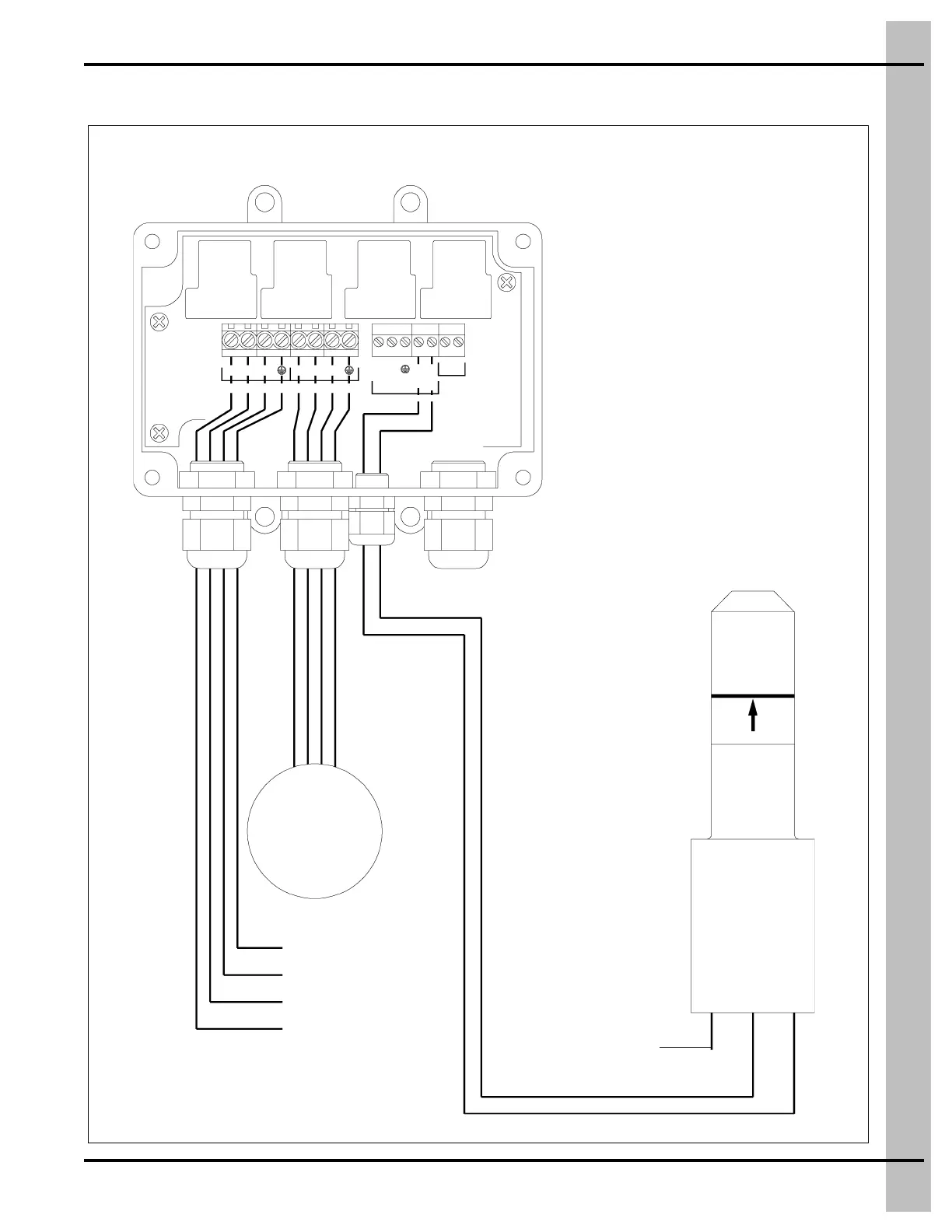

4. Wiring Diagrams
PNEG-2223 Flex-Flo Control Unit with Auto Calibration 23
Flex-Flo Control Unit Used with 3 Phase Power
FLEX-FLO CONTROL UNIT (FLX-5350)
L1
L2
L3
M1
M2
M3
Incoming Power
Flex-Flo Motor
Auxiliary Switch
GREEN
WHITE
BLACK
L1
L2
IN
OUT
COM.
N.O.
Relay
Output
Signal
Signal
Power
Power
BROWN
RED
FLEX-FLO
3 PHASE
MOTOR
GND
L3
L2
208-230VAC
3 PHASE
POWER SUPPLY
UNIVERSAL SENSOR (AP-2983)
RED
GREEN
WHITE
BLACK
RED
L1
GROMMET INSERTION LINE
N.O. - ORANGE (NOT USED)
LINE - BROWN
N.C. - RED
TAPE FOR PROTECTION
