LED Pedestrian 16x18’’ Incandescent Look Signal Modules Installation Guide
LED.com
© 2023 Current Lighting Solutions, LLC. All rights reserved. GE and the GE
monogram are trademarks of the General Electric Company and are used under
license. Information and specifications subject to change without notice. All
values are design or typical values when measured under laboratory conditions.
Page 2 of 2
(Rev 06/21/23)
TRAF059-LED-Pedestrian-16x18-inch-lncandescent-Look-Signal-Modules-lnstallation-Guide
Verify input voltage is within specied range on the back of the
LED signal module before installation.
Failure to do so will cause lamp to fail.
Open front cover of (customer supplied) trac signal housing.
Connect the wires to the appropriate terminal block within
customer supplied signal housing.
Orange wire ➔ (+ for Hand),
Blue Wire ➔ (+ for Person),
White wire ➔ (for the neutral).
Close front cover of (customer supplied) trac signal housing
ensuring that the module gasket is tight within the housing.
Remove Cap from "CONNECT TO TEST"
Connect jumper wire using appropriate screws.
Re-install Cap over jumper location
Remove Cap from "DISCONNECT TO DISABLE"
Remove jumper wire and replace screws for future use.
Re-install Cap over jumper location
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
To Test Countdown
NOTE: Module does not need to be disconnected
from terminal block.
To Stop Testing Countdown
Remove Cap from "CONNECT TO TEST"
Disconnect jumper wire and store it for future use.
A
Re-install Cap over jumper wire
To Disable Countdown
NOTE: Module does not need to be disconnected
from terminal block.
To Re-Enable Countdown
Remove Cap from "DISCONNECT TO DISABLE"
Re-install jumper wire using appropriate screws.
Re-install cap over jumper wire.

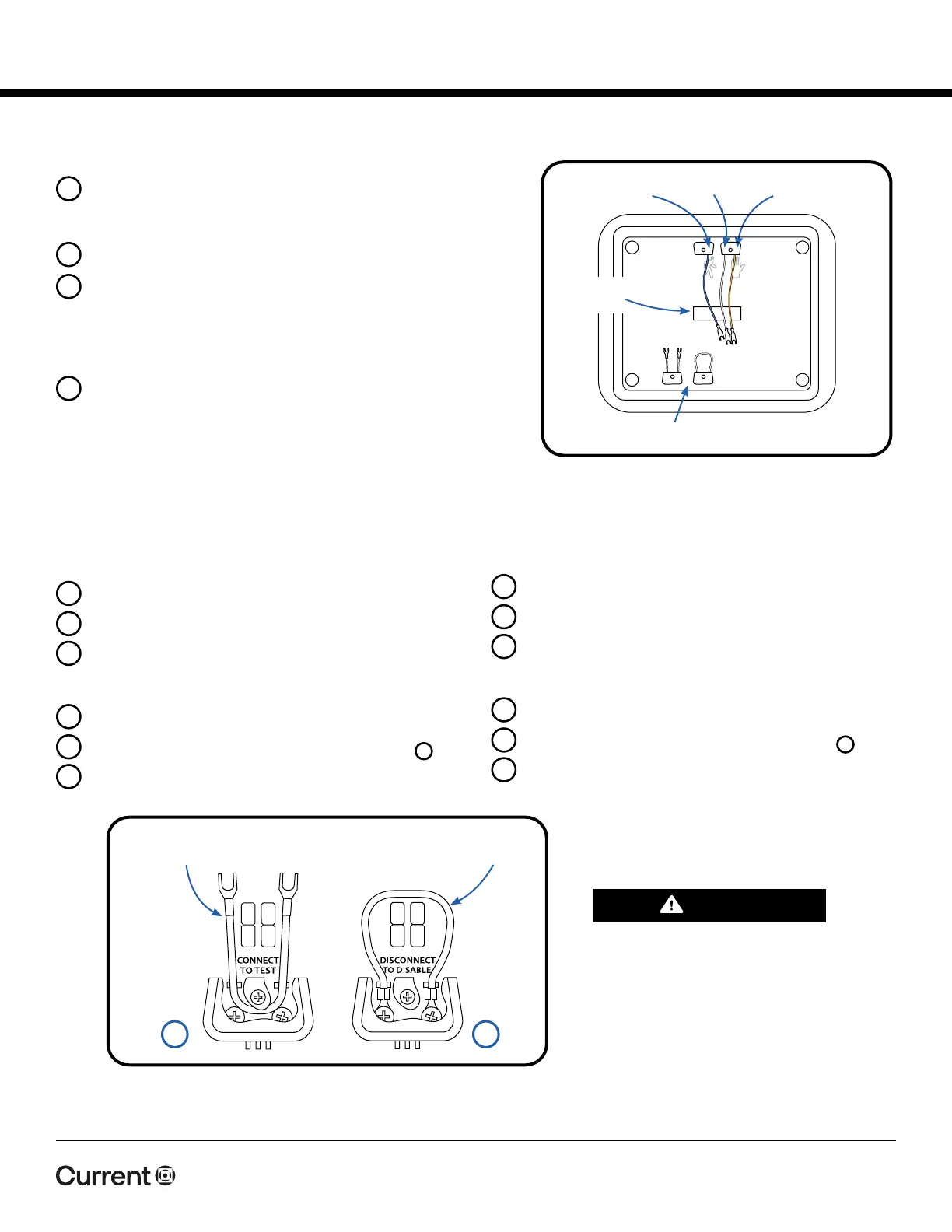

Installation Steps
CAUTION
Connect Jumper wire
to Test Countdown
Countdown Option Jumpers (see below)
Voltage
Rating
Blue Wire
White Wire Orange Wire
Disconnect Jumper wire to
Disable Countdown
A B
