Curtis D500GT12A000 User Manual

ILLUSTRATED PARTS/RECOMMENDED PARTS IP24
WC-6282 TANK ASSEMBLY, ILLUSTRATED PARTS/RECOMMENDED PARTS 090616NC
ITEM # PART # DESCRIPTION
1A WC-75236DV
TANK, ASSY DUAL VOLTAGE D500GT TCTS/PTT3/
CBS/ W/(2)WC-904
1B WC-6282
TANK, COMPLETE D500GT DUAL VOLTAGE
120/220V
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-904-04
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM NUT &
SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-904-04
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM NUT &
SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
WC-6282 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
9 WC-37365 KIT, FITTING TANK INLET
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
ITEM # PART # DESCRIPTION
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
8 WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365 KIT, FITTING TANK INLET
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)

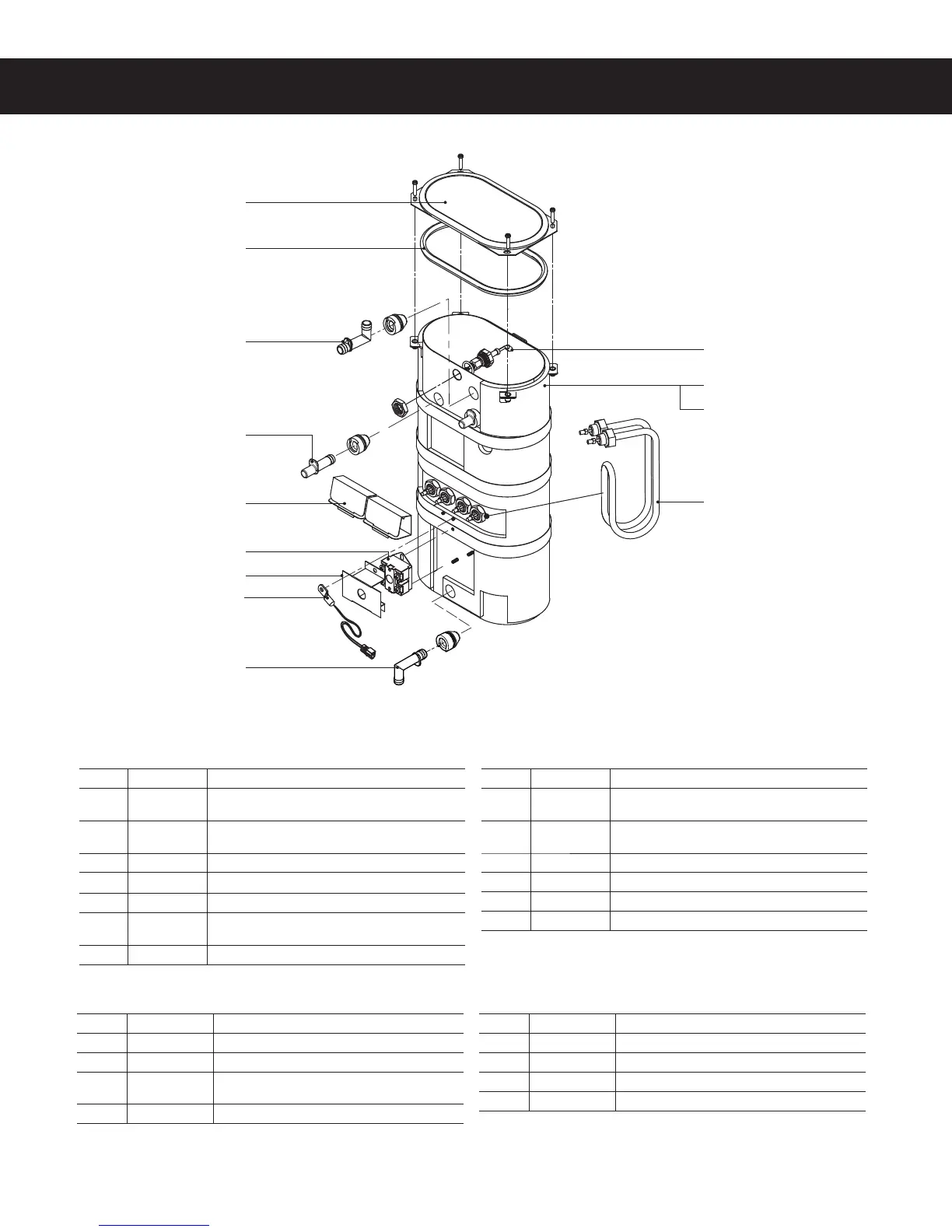

WC-6282 - Tank Assembly
2
3
10
11
7
8
12
6
9
1A
1B
5
4
WC-6282 - Tank Assembly - Parts List
