Curtis D500GT12A000 User Manual

ILLUSTRATED PARTS/RECOMMENDED PARTS IP55
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354ø /$
ITEM # PART # DESCRIPTION
1 WC-6290 TANK, COMPLETE 3.5KW 220V D500-GT
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
5 WC-922 ELEMENT, HEATING 3.5KW 220V GEN USE
6 WC-1438-101 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
6 WC-1438-101 SENSOR, TEMPERATURE TANK
9 WC-37365 KIT, FITTING TANK INLET
WC-6290 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
ITEM # PART # DESCRIPTION
8WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9 WC-37365 KIT, FITTING TANK INLET
10 WC-37266 KIT, FITTING TANK OVERFLOW
11 WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
WC-6290 - Tank Assembly
2
3
10
11
7
8
12
6
9
1
5
4

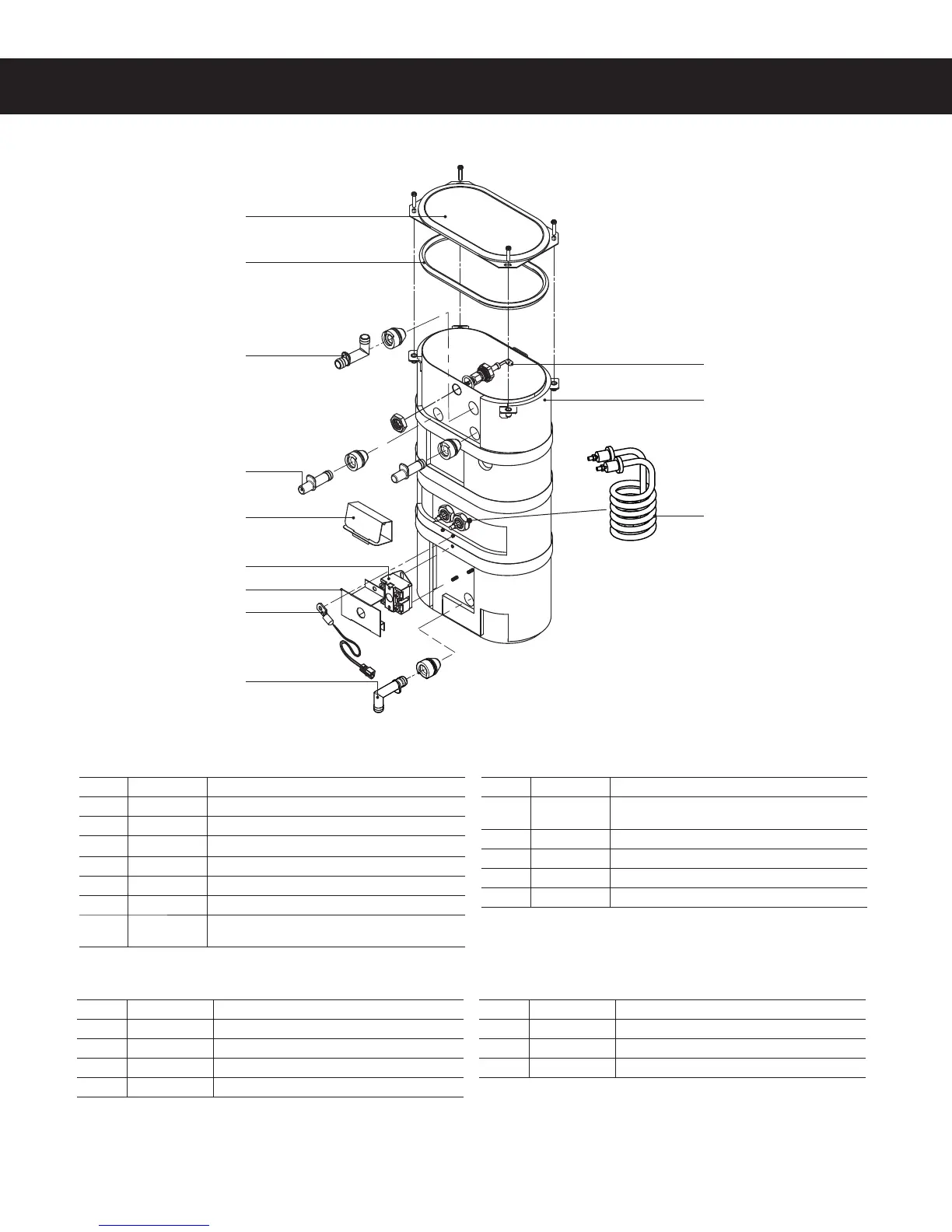

WC-6290 - Tank Assembly - Parts List

Curtis D500GT12A000 Specifications

General

Brand	Curtis
Model	D500GT12A000
Category	Brewing Systems
Language	English
