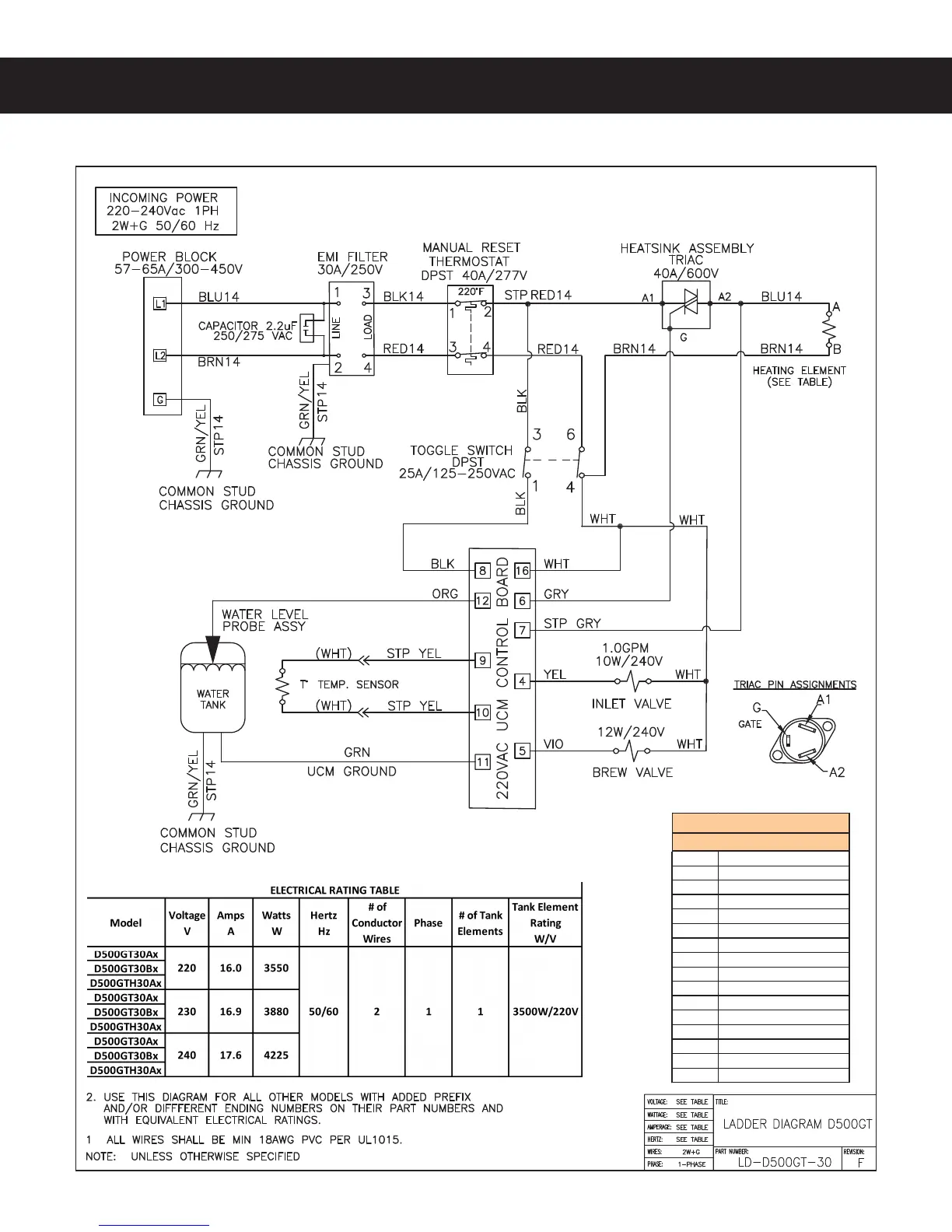

ELECTRICAL SCHEMATICS ES57
%&-&$53*$"-4$)&."5*$ø /$
1
NOT USED
2
NOT USED
3
NOT USED
4
INLET VALVE
5
BREW VALVE
6
TRIAC GATE
7
TRIAC A2
8
230V L1
9
TANK TEMPERATURE SENSOR
10
TANK TEMPERATURE SENSOR
11
UCM GROUND
12
WATER LEVEL PROBE
13
NOT USED
14
NOT USED
15
NOT USED
16
230V L2
UCM Pin Assignments
16 Pin Connector
D500GT30,
