ILLUSTRATED PARTS/RECOMMENDED PARTS IP22
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354 $
ITEM # PART # DESCRIPTION
1A WC-75236-20
TANK, ASSY D500GT/H/TCTS/PTT3/ CBS W/WC- 917
HEATING ELEMENT
1B WC-6283 TANK, COMPLETE 1450W 120V D500GT
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062* GASKET, TANK LID
4A
1
WC-5528K* KIT, WATER LEVEL PROBE, SILICONE
4B
2
WC-5502-01*
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
O-RING & NUT
5 WC-917-04*
ELEMENT, HEATING 1.45KW 120V W/JAM NUTS &
SILICONE O-RING
ITEM # PART # DESCRIPTION
6 WC-1438-101* SENSOR, TEMPERATURE TANK
7 WC-4394*
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
8 WC-523*
THERMOSTAT, MANUAL RESET 120/ 240 VAC 25A
220 DEG F MAX
9 WC-37365* KIT, FITTING TANK INLET
10 WC-37266* KIT, FITTING TANK OVERFLOW
11 WC-37317* KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE

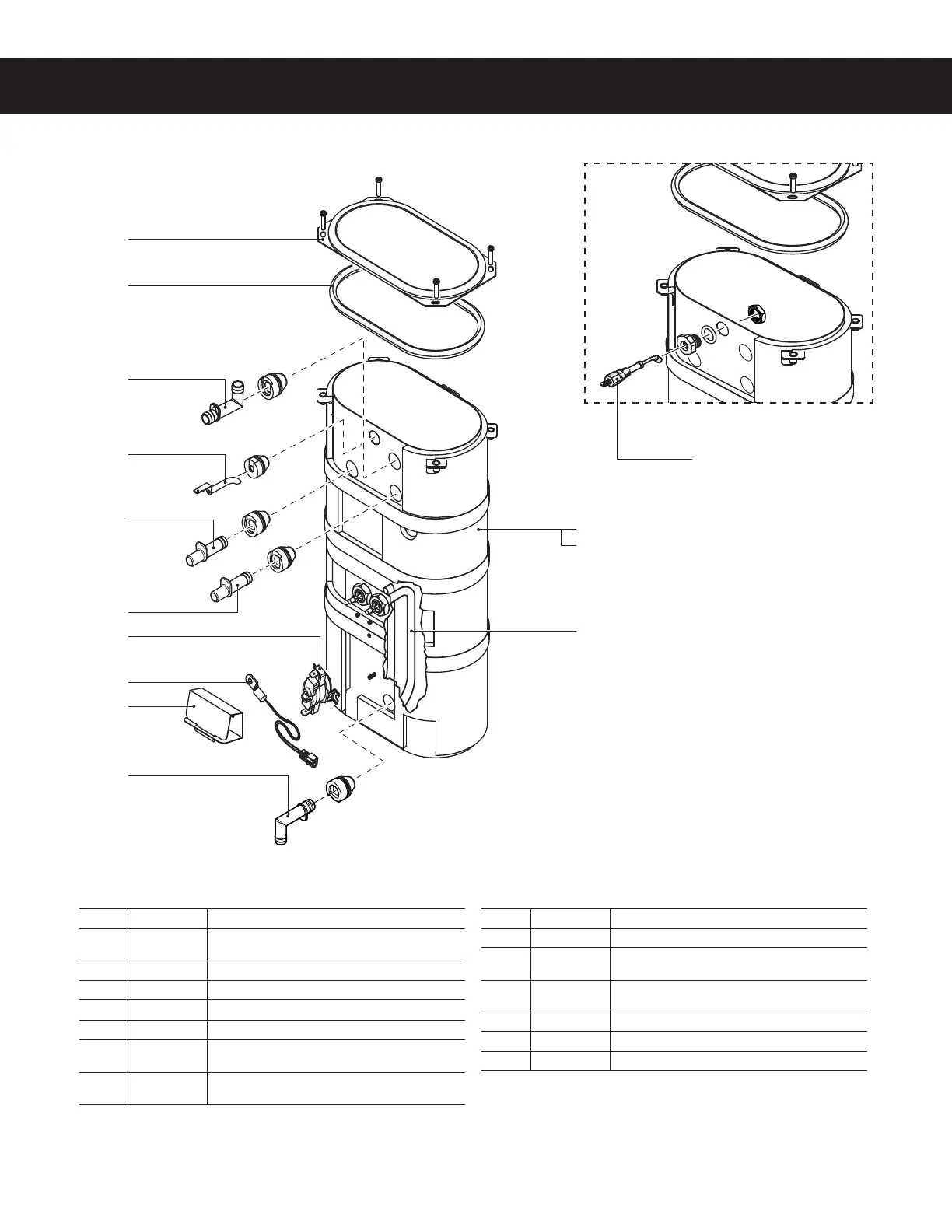

WC-6283 - Tank Assembly
2
3
10
11
11
8
6
7
9
5
WC-6283 - Tank Assembly - Parts List
1
Units built 01/04/2019 and later.
2
Units built before 01/04/2019. Replaces WC-5527.
*
Recommended parts to stock.
1A
1B
4A
4B
